Mixed Technology 2 Kit
Daisy Chain BGA, SMT & Throughhole

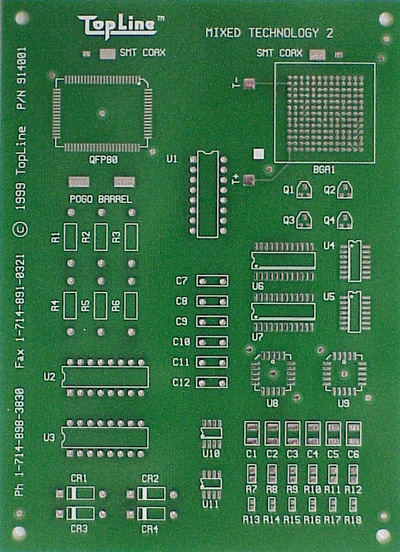

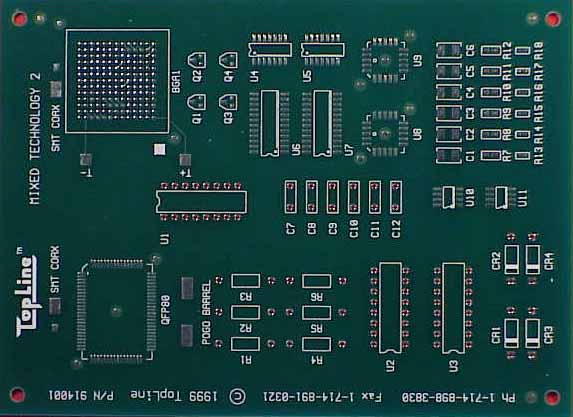

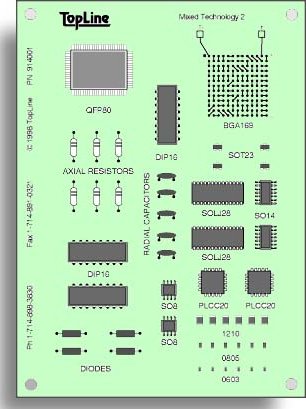

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)

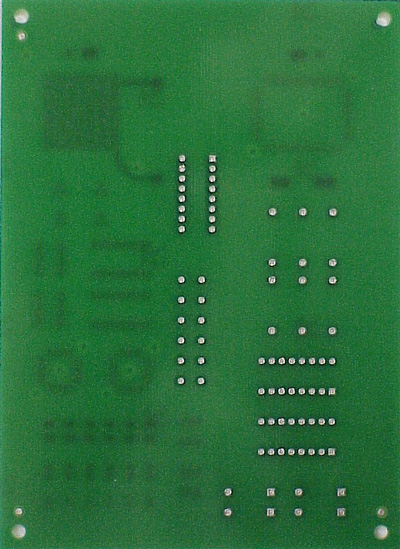

Click for bottom view

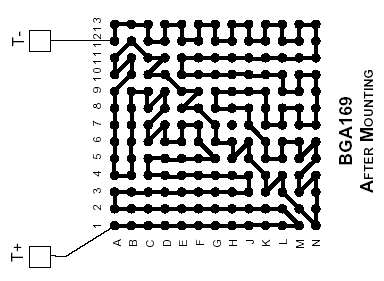

TopLine Mixed Technology 2 Kit. Top side has daisy chain BGA, QFP, SOIC, SOJ, SOT23, PLCC, SMT chips and throughhole components. Test points for checking continuity after mounting daisy chain BGA169 to verify correct assembly with a simple ohm-meter.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

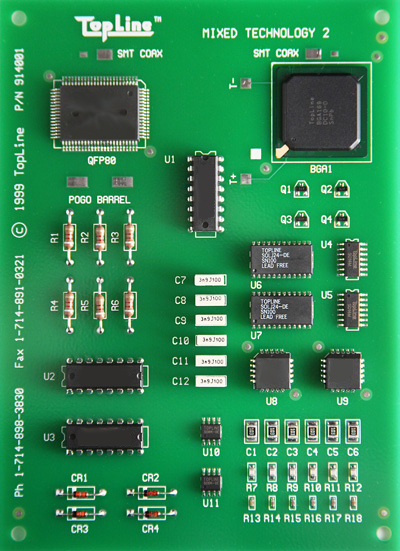

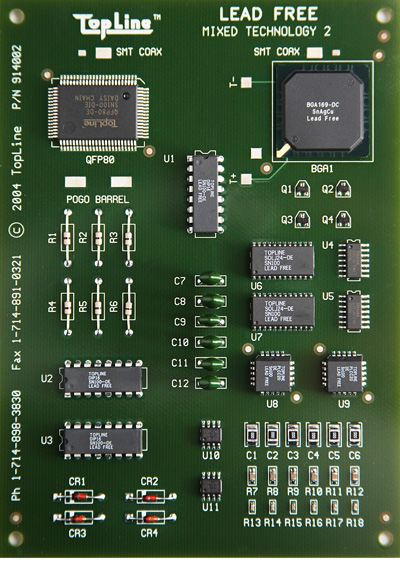

    Enlarge:  Top (Shown After Assembly)
    Click for bottom view

    		•

      BOM Kit Contents
    Mixed Technology 2 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    914X00
    1 Kit
    Order #
    914X10
    10 Kits
    Order #
    914X25
    25 Kits
    Order #
    914X50
    50 Kits
    Order #
    914X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    BGA169
    Size 23x23mm
    Pitch 1.5mm
    With Daisy Chain    		 1 1 10 25 50 100
    QFP80
    Size 14x20mm
    Pitch 0.8mm (30mil)
    		 1 1 10 25 50 100
    SO8
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SO14
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOJ24
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC20
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOT23
    Pitch 1.9mm    		 4 4 100 250 250 500
    0603 Chip 6 6 60 150 300 600
    0805 Chip 6 6 60 150 300 600
    1210 Chip 6 6 60 150 300 600
    DIP16
    Pitch 2.54mm (100 mil)    		 3 3 30 75 150 300
    .25W Axial Resistor 6 6 60 150 300 600
    DO35 Glass Diodes 4 4 40 100 200 400
    Radial Capacitor
    Pitch 5mm    		 .20" 6 60 150 300 600


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "914001a" Mixed Technology 2
    Step 4. Download files


    Kit Order Number System
    914 2 # #
    Series Board Finish Quantity
    Mixed Technology 2

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 914001
    Tin (Sn) RoHS 914002
    Silver (Ag) RoHS 914006*
    OSP (Cu) RoHS 914008*
    ENIG Gold (Ni/Au) RoHS 914009
      *Check Availability


    Spare Parts
    Full range of spare parts available
    RoHS Lead Free and Tin-Lead
    Contact TopLine to discuss your requirements
