Beginner's SMT Kit
Simple to Solder Components

Go to: More Kits

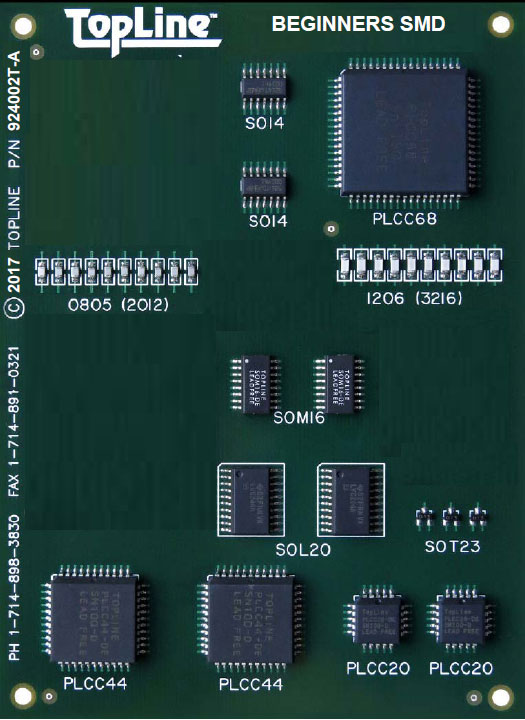

Enlarge: Assembled Board (Top)
Board Size 4"x5.5" (10x14cm)
Same pattern repeated on bottom side.



TopLine Beginners SMT Kit has simple to solder SOIC, SOT, PLCC, and chips. Similar to 965xxx kit, without the fine-pitch QFP

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=175°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • Double Side Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

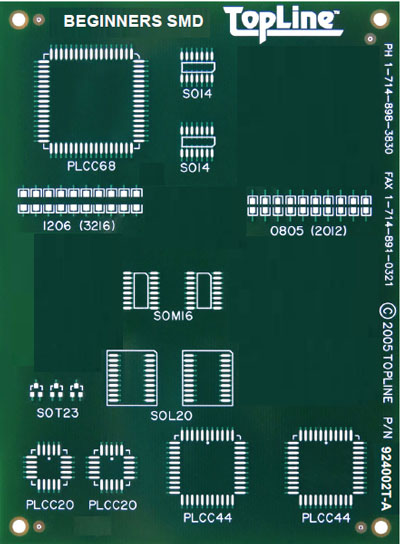

    Enlarge:  Bare Board (Bottom)

    •
      BOM Kit Contents
    Beginner's SMT Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    924X00
    1 Kit
    Order #
    924X10
    10 Kits
    Order #
    924X25
    25 Kits
    Order #
    924X50
    50 Kits
    Order #
    924X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    PLCC20
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC44
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC68
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SO14
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOM16
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOL20
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SOT23 3 3 30 75 150 300
    0805 Chip
    Metric 2012    		 10 10 100 250 500 1000
    1206 Chip
    Metric 3216    		 10 10 100 250 500 1000


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "924001a" Rework 1
    Step 4. Download files


    Kit Order Number System
    924 2 # #
    Series Board Finish Quantity
    Rework 1

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 924001
    Tin (Sn) RoHS 924002
    ENIG Gold (Ni/Au) RoHS 924009


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
