Axial Lead
Through Hole Components

Welcome to TopLine's AXIAL Components page.   •   Go to radial lead components.



Axial Lead Devices


Case Size Device Type Lead
Diameter
Qty
Tape/Reel
Order Nr.
Bulk
Order Nr.
Ammo Tape
Order Nr.
Tape & Reel
1/8 W Resistor
0.063" x 0.145" 1/8W-Resistor 0.016~0.020" 5000 CF18 CF18A CF18-T&R
0.063" x 0.145" 1/8W-Resistor 0.016~0.020" 5000 RC05 - RC05-T&R
0.063" x 0.145" 1/8W-Resistor 0.016~0.020" 5000 RCR05 - RCR05-T&R
0.063" x 0.145" 1/8W-Resistor 0.016~0.020" 5000 RL05 RL05A RL05-T&R
0.063" x 0.145" 1/8W-Resistor 0.016~0.020" 5000 RN50 - RN50-T&R

1/4 W Resistor
0.090" x 0.255" 1/4W-Resistor 0.025" 5000 CF14 CF14A CF14-T&R
0.090" x 0.255" 1/4W-Resistor 0.025" 5000 RC07 - RC07-T&R
0.090" x 0.255" 1/4W-Resistor 0.025" 5000 RCR07 - RCR07-T&R
0.090" x 0.255" 1/4W-Resistor 0.025" 5000 RL07 RL07A RL07-T&R
0.090" x 0.255" 1/4W-Resistor 0.025" 5000 RN55 - RN55-T&R

1/2 W Resistor
0.138" x 0.373" 1/2W-Resistor 0.028~0.032" 2500 CF12 CF12A CF12-T&R
0.138" x 0.373" 1/2W-Resistor 0.028~0.032" 1000~2500 RC20 - RC20-T&R
0.138" x 0.373" 1/2W-Resistor 0.028~0.032" 1000~2500 RCR20 - RCR20-T&R
0.138" x 0.373" 1/2W-Resistor 0.028~0.032" 2500 RL20 RL20A RL20-T&R
0.138" x 0.373" 1/2W-Resistor 0.028~0.032" 2500 RN60 - RN60-T&R

1 W Resistor
0.177" x 0.560" 1W-Resistor 0.030~0.040" 500~1000 CF100 CF100A CF100-T&R
0.177" x 0.560" 1W-Resistor 0.030~0.040" 500~1000 RC32 - RC32-T&R
0.177" x 0.560" 1W-Resistor 0.030~0.040" 500~1000 RCR32 - RCR32-T&R
0.177" x 0.560" 1W-Resistor 0.030~0.040" 500~1000 RL32 RL32A RL32-T&R
0.177" x 0.560" 1W-Resistor 0.030~0.040" 1000 RN65 - RN65-T&R

2 W Resistor
0.236" x 0.700" 2W-Resistor 0.030~0.045" 1000 CF200 CF200A CF200-T&R
0.236" x 0.700" 2W-Resistor 0.030~0.045" 1000 RC42 - RC42-T&R
0.236" x 0.700" 2W-Resistor 0.030~0.045" 1000 RCR42 - RCR42-T&R
0.236" x 0.700" 2W-Resistor 0.030~0.045" 1000 RL42 RL42A RL42-T&R

Pb-Free (RoHS) Lead-Free: And "-TIN" suffix to the order number.
TopLine can provide other axial lead components not shown above.
Axial Resistor Model


Case Size Device Type Lead Diameter Qty
Tape/Reel
Order Nr.
Bulk
Order Nr.
Ammo Tape
Order Nr.
Tape & Reel
Tantalum (TANT) Capacitor Metal Case
0.135" x 0.286" A-Case 0.020" Varies CS1 - CS1-T&R
0.185" x 0.474" B-Case 0.020" Varies CS2 - CS2-T&R
0.289" x 0.686" C-Case 0.025" Varies CS3 - CS3-T&R
0.351" x 0.786" D-Case 0.025" Varies CS4 - CS4-T&R

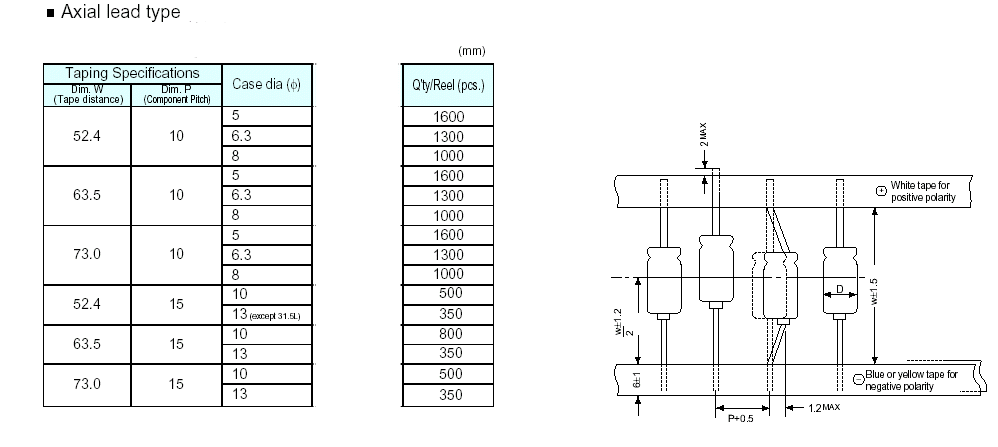

Aluminum Capacitors (Al Cap)
6mm x
12 mm
AL-Capacitor 0.6mm (0.024") Varies EA6X12 EA6X12A EA6X12-T&R
5 to 13mm Diameter AL-Capacitor 0.6mm (0.024") Varies Axial Lytic

Pb-Free (RoHS) Lead-Free: And "-TIN" suffix to the order number.
TopLine can provide other axial lead components not shown above.


Case Size Device Type Lead Diameter Qty
Tape/Reel
Reference Order Nr.
Bulk
Order Nr.
Ammo Tape
Order Nr.
Tape & Reel
Diodes and Rectifiers
0.100" x 0.300" Glass Diode 0.020" - DO-204AA DO7 - -
0.140" x 0.300" Molded Rectifier 0.032" 4000 DO-204AC DO15 DO15A -
0.140" x 0.350" Glass Diode 0.032" - DO-204AF DO29 - -
0.070" x 0.120" Glass Diode 0.020" 10,000 DO-204AG DO34 DO34A DO34-T&R
0.070" x 0.154" Glass Diode 0.020" 10,000 DO-204AH DO35 DO35A DO35-T&R
0.107" x 0.205" Molded Rectifier 0.032" 2500~5000 DO-204AL DO41 DO41A DO41-T&R
0.107" x 0.205" Glass Rectifier 0.032" 5500 DO-204AL DO41-GLASS DO41A-GLASS DO41-GLASS-T&R
0.220" x 0.375" Molded Rectifier 0.050" 1200 DO-201AD DO201AD DO201AD-A DO201AD-T&R


Pb-Free (RoHS) Lead-Free: And "-TIN" suffix to the order number.
TopLine can provide other axial lead components not shown above.

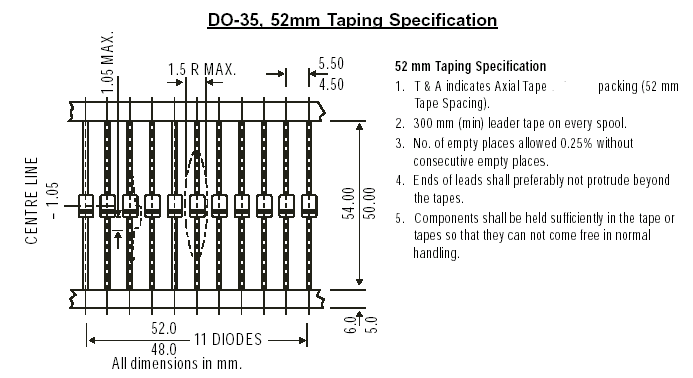

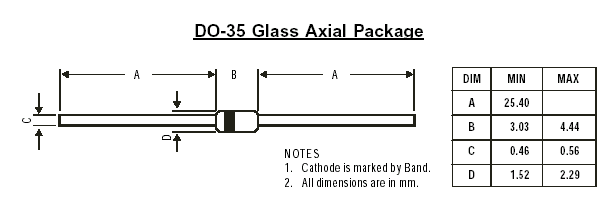

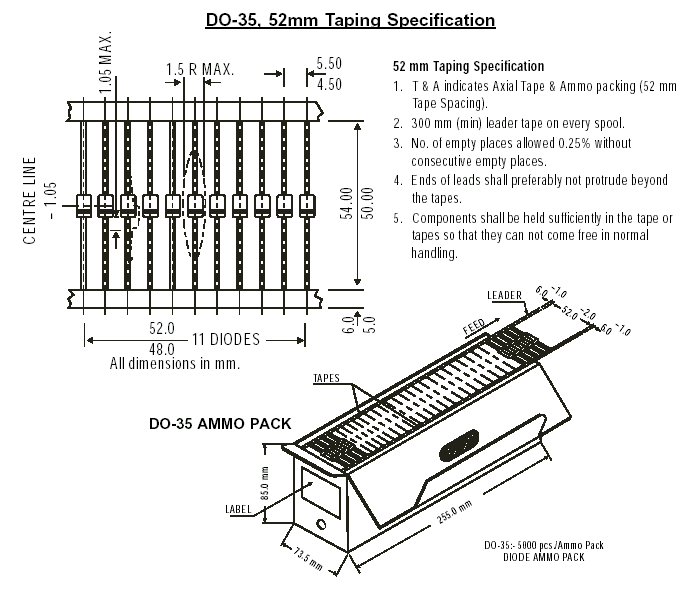

Axial Diode  •   Axial Diode on Tape  •   Ammo Pack
