BGA PC Boards

Be sure to see additional boards:
CBGA Boards   µBGA Boards   BGA + Components   Flip Chip Boards   Acrylic Placement Boards

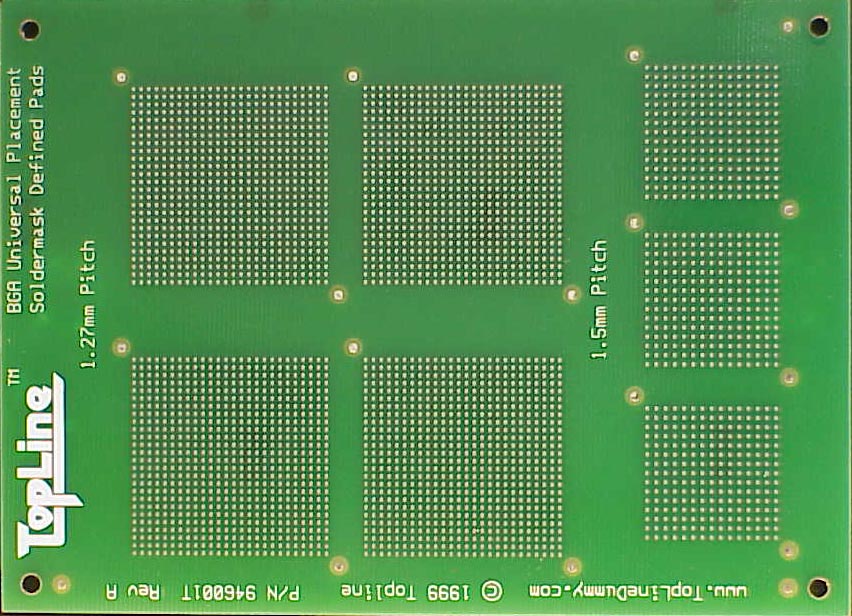

#946001
Universal BGA
1.27mm/1.5mm
Without Daisy Chain

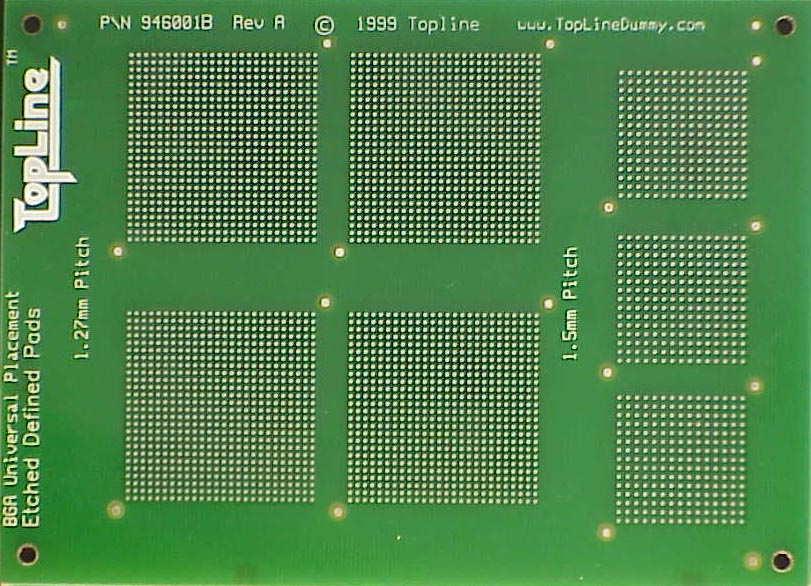

Click for Back Side
#981001
Universal BGA
0.8mm/1.0mm
Without Daisy Chain

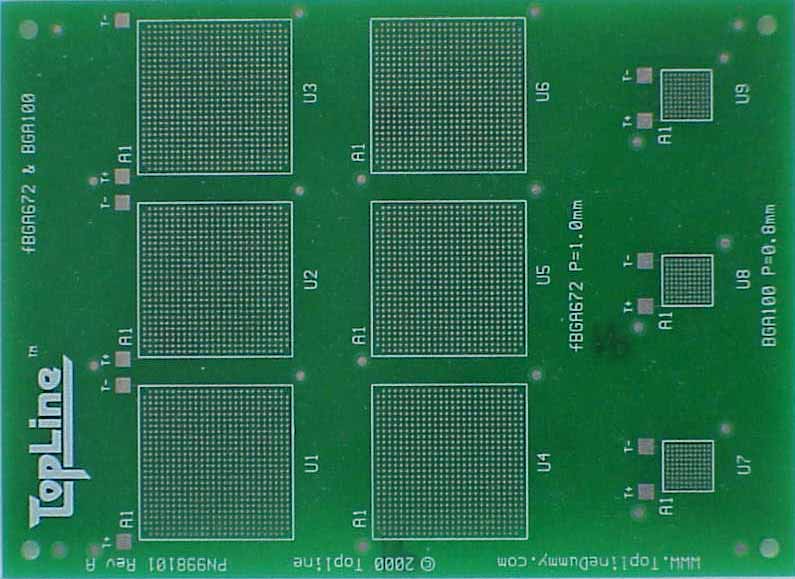

#998101
BGA100 & fBGA672
0.8mm/1.0mm
With Daisy Chain

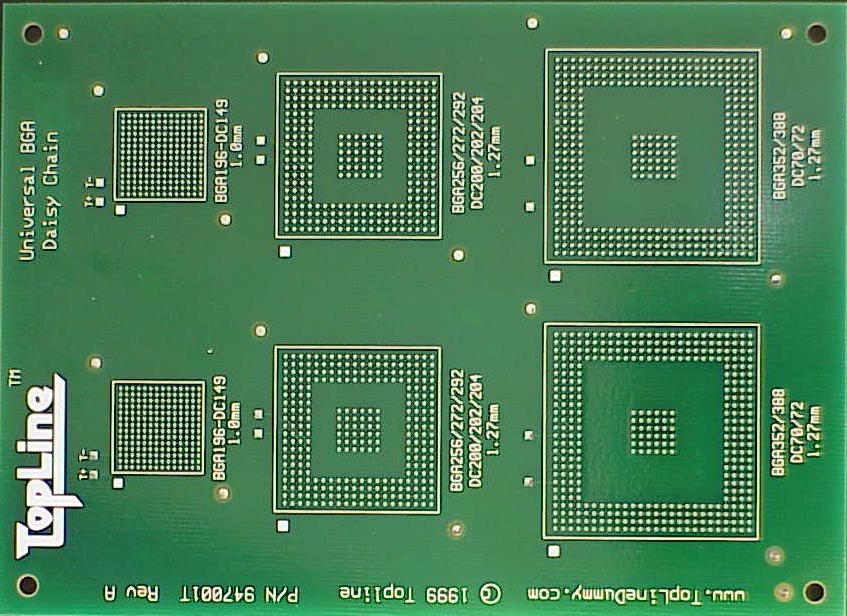

#947001 Front
Universal BGA
With Daisy Chain
BGA196 1.0mm
BGA256/272 1.27mm
BGA352/388 1.27mm

Click for Back Side

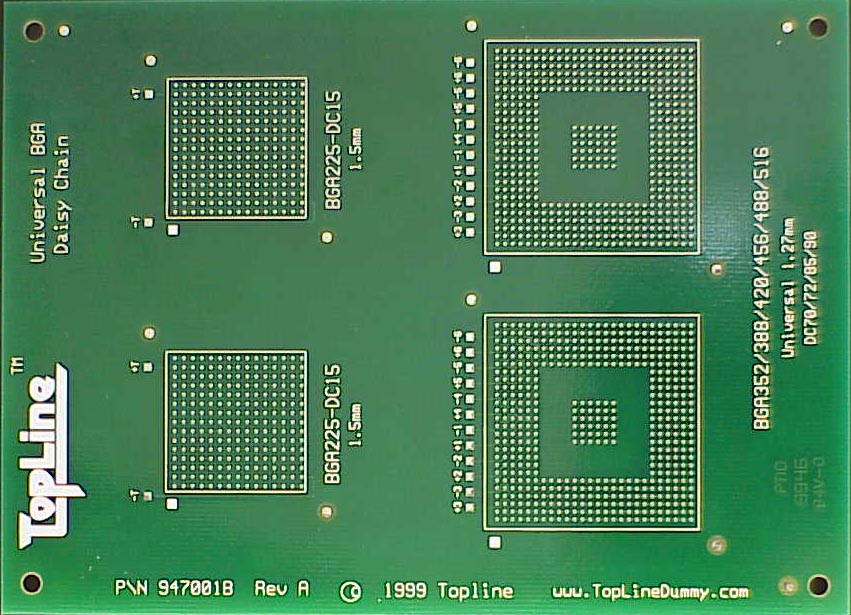

#947001 Back
Universal
Daisy Chain
BGA225 1.5mm
BGA352/388 1.27mm

Click for front Side

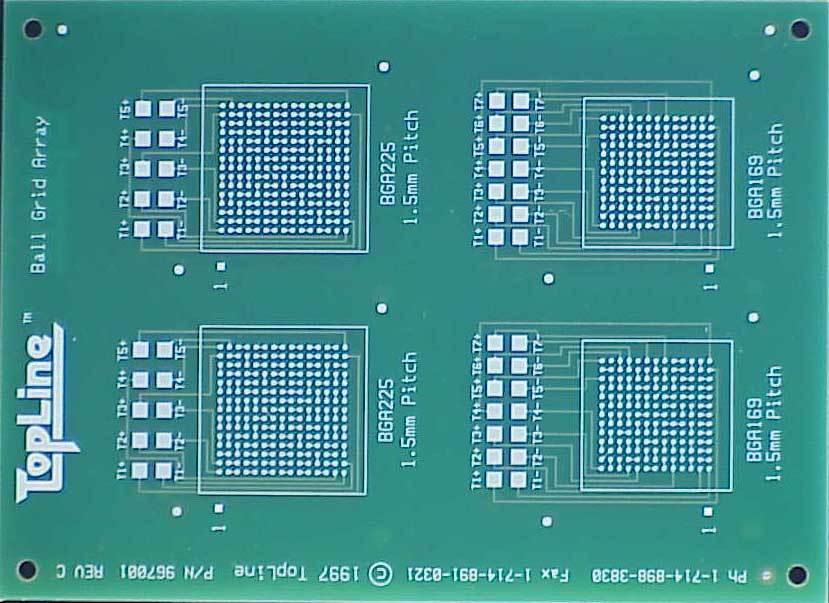

#967001
With Daisy Chain
BGA169 1.5mm
BGA225 1.5mm

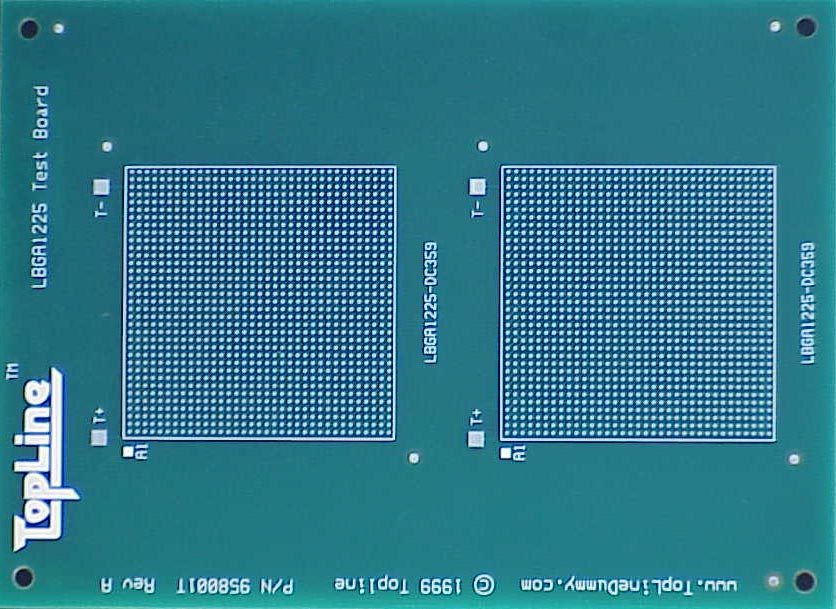

#958001
With Daisy Chain
1.27mm Pitch
BGA1225 - Top
BGA1089 - Back

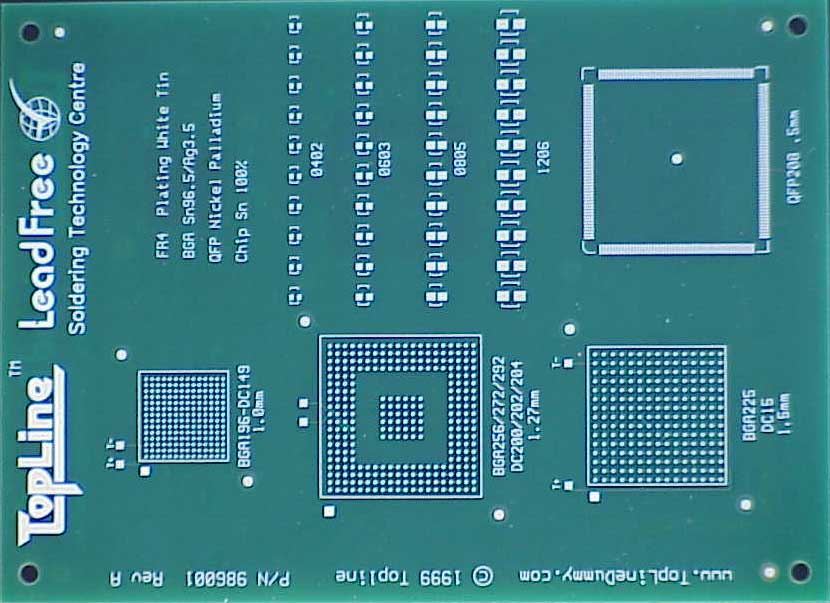

#986001
Lead Free
With Daisy Chain
BGA196 1.0mm
BGA256 1.27mm
BGA225 1.5mm

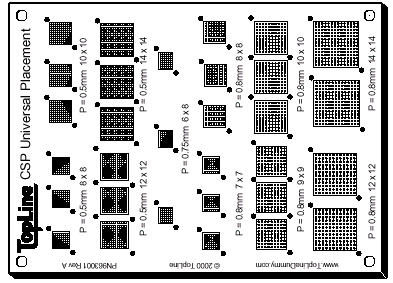

#963001
Universal CSP
Without Daisy Chain
CSP 0.5mm
µBGA 0.75mm
CSP 0.8mm
