Beginners SMD
Entry Level Practice

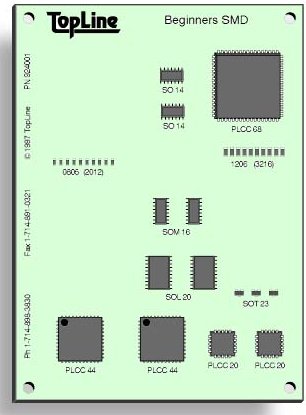

Actual Size: 4" x 5.5" (100 x 140mm)

    Start with the basics. TopLine's Beginners SMD Kit is intended for entry level manual assembly, rework or semiautomatic machine run. This kit uses the same board as TopLine's Rework Kit 965000 without fine-pitch components included.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    924000
    1 Kit
    Order #
    924010
    10 Kits
    Order #
    924026
    25 Kits
    Order #
    924050
    50 Kits
    Order #
    924100
    100 Kits
    Board   1 10 25 50 100
    PLCC20 50 mils 2 25 50 100 200
    PLCC44 50 mils 2 25 50 100 200
    PLCC68 50 mils 1 10 25 50 100
    SO14 50 mils 2 25 50 100 200
    SOM16 50 mils 2 25 50 100 200
    SOL20 50 mils 2 25 50 100 200
    SOT23 - 3 100 300 500 500
    0805 Chips - 10 100 500 500 1000
    1206 Chips - 10 100 250 500 1000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 965004
    Solder Paste Artwork, Gerber File, Order Number 965005
    Solder Paste Stencil, Order Number 965009, Call for Details

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 965001
