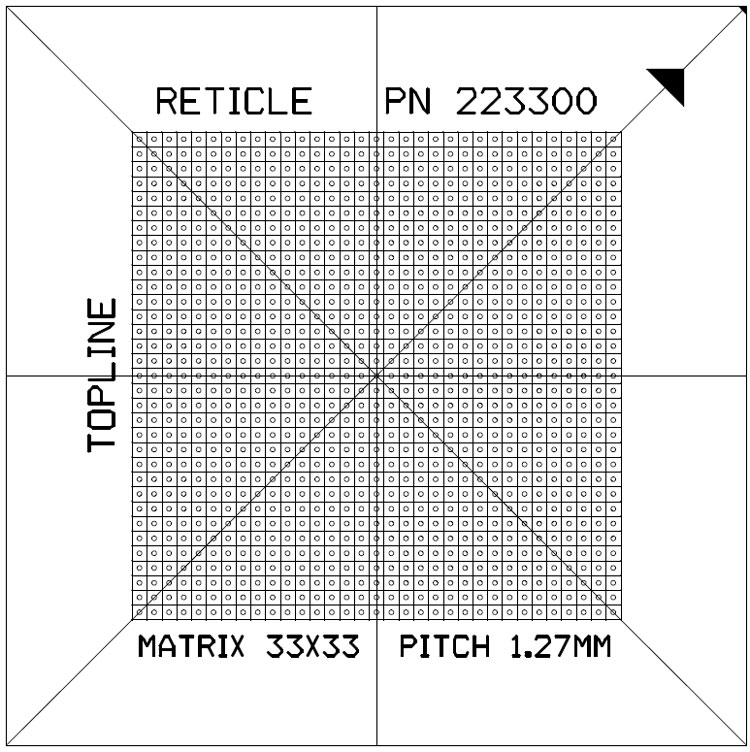

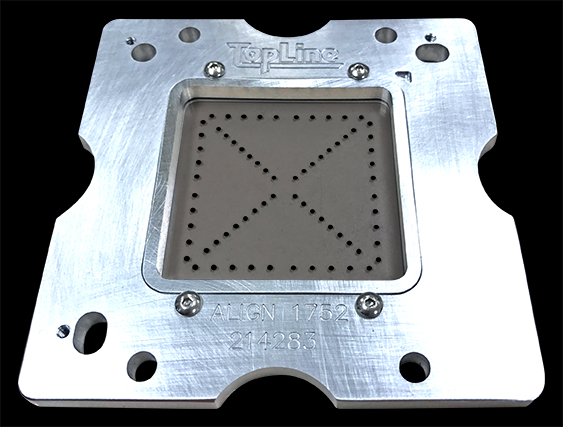

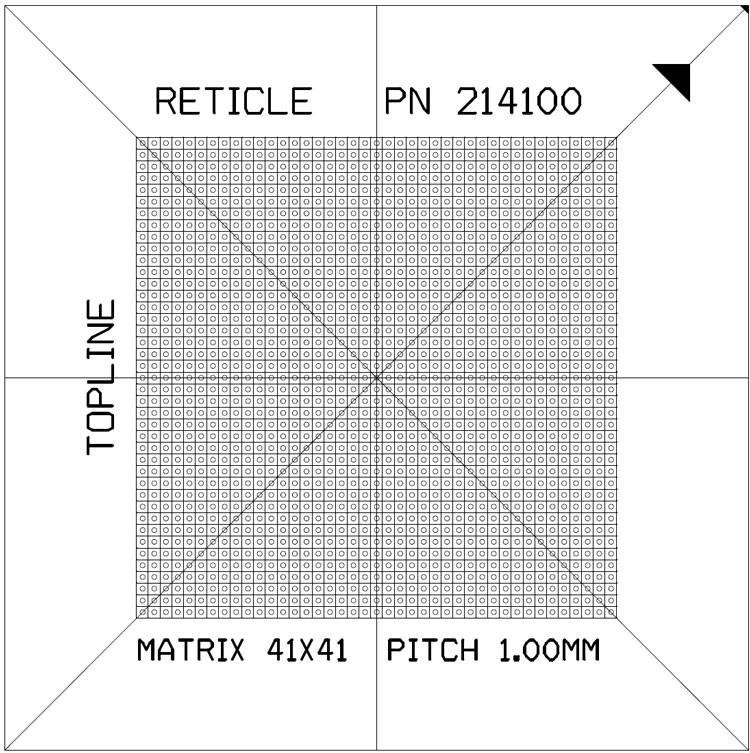

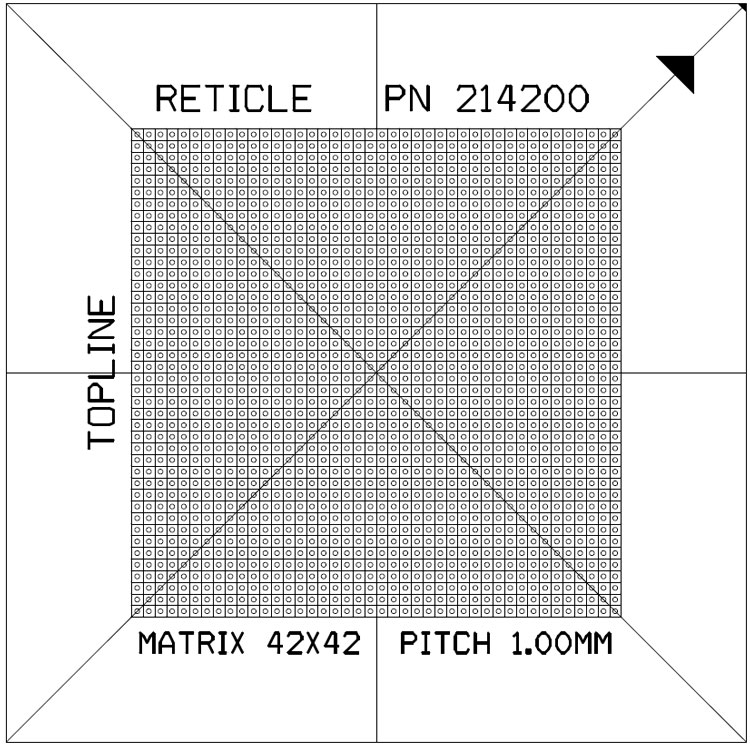

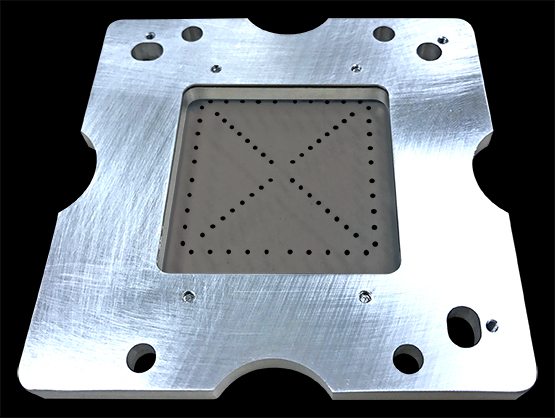

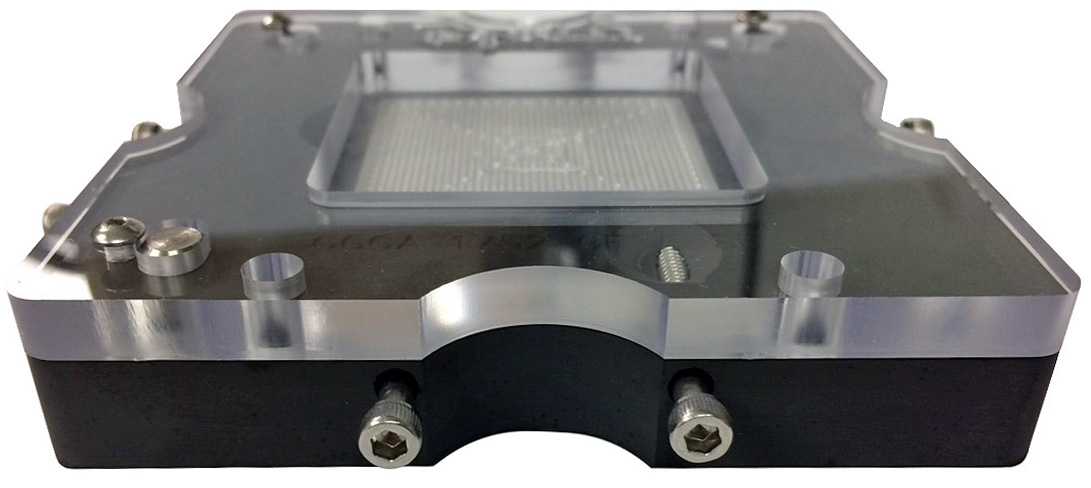

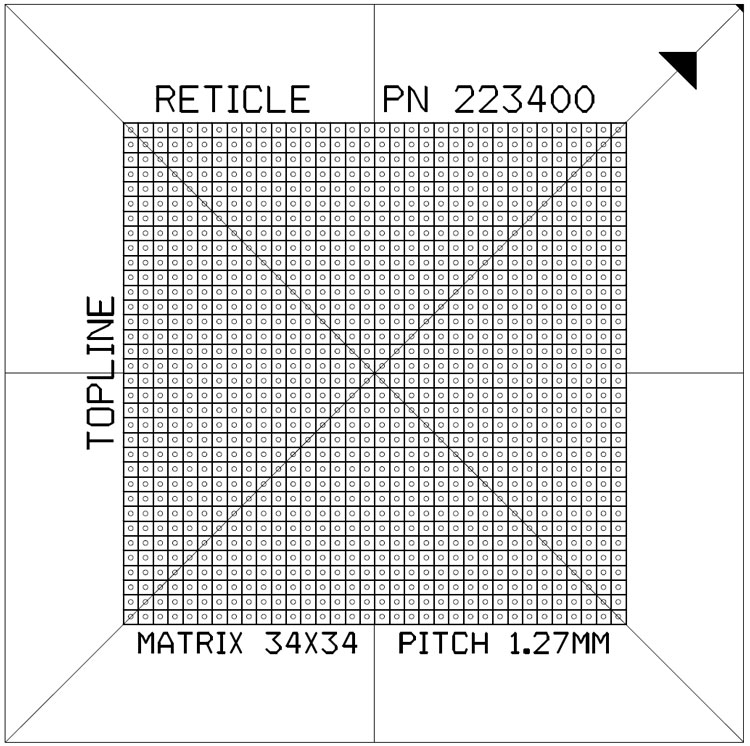

@CCGA2  Join CCGA Packaging Group Optical Alignment Reticle for CCGA   Catalog   •   Video  •   CCGA Packages  •   Library   •   PWB   •   Process   •   Columns   •   Stencil   •   Tray   •   Tools   •   Model   •   Pin-Pack®   Optical Recticles for Alignment of CCGA About Optic Alignment Tool Precision tool-set for optically aligning pads on LGA grid array packages. Simple to use. Place reticle frame over the base graphite. Adjust the LGA package X , Y and Theta so that the pads on the LGA optically center between the grid lines on the reticle. Quick and accurate method to confirm that the pads on the LGA are in alignment before applying solder paste or attaching columns to the LGA. Features: LGA Size: Up to 45x45mm Pitch: 1.0mm and 1.27mm Underside Recess: 0.8mm (30mil) Place over the base Graphite Tool Set Includes frame and precision reticle C7-OPTIC SET Complete set with frame and reticle for your specific CGA DWG Number Model Number Column Type Substrate X/Y Size Max LGA Thickness Substrate Material Matrix Row x Col Maximum Pitch Pad ØDia Array Type Solidworks 360°Model 200001 C7-OPTIC-33P1.27-A All 45mm All All 33x33 1.27mm Ø0.8mm ODD 360° Model 200002 C7-OPTIC-34P1.27-A All 45mm All All 34x34 1.27mm Ø0.8mm Even 360° Model 200003 C7-OPTIC-41P1.0-A All 45mm All All 41x41 1.0mm Ø0.8mm Odd 360° Model 200004 C7-OPTIC-42P1.0-A All 45mm All All 42x42 1.0mm Ø0.8mm Even 360° Model Note 1: Model Number System. Note 2: Ask TopLine for custom reticle sets and spare parts.   TOP Bottom     Spare Recticle Mounts in Frame DWG Number Model Number Reticle Size O.D. Matrix Row x Col Matrix Odd/Even Pitch Pad ØDia Reticle Line Width 223300 C7-RETICLE-33P1.27-A 57mm (2.25") 33x33 Odd 1.27mm Ø0.8mm (31 mil) 125um (5 mil) 223400 C7-RETICLE-34P1.27-A 57mm (2.25") 34x34 Even 1.27mm Ø0.8mm (31 mil) 125um (5 mil) 214100 C7-RETICLE-41P1.0-A 57mm (2.25") 41x41 Odd 1.0mm Ø0.8mm (31 mil) 125um (5 mil) 214200 C7-RETICLE-42P1.0-A 57mm (2.25") 42x42 Even 1.0mm Ø0.8mm (31 mil) 125um (5 mil) Contact TopLine for Additional Recticles DWG 223300 Pitch 1.27mm Matrix 33x33 DWG 223400 Pitch 1.27mm Matrix 34x34 DWG 214100 Pitch 1.0mm Matrix 41x41 DWG 214200 Pitch 1.0mm Matrix 42x42   Spare Parts DWG Number Model Number Size O.D. Material Description 200101 C7-OPTIC-FRAME-A 98.5mm (3.878") Aluminum Frame For Recticle 200110 C7-OPTIC-CLAMP-A 57mm (2.25") Aluminum Clamp For Frame Contact TopLine for Additional Spare Parts and Custom Solutions       Model Numbering System     C7     -     OPTIC     -     42     P1.0     Option     Series   Description   Pad Matrix Pitch Variations Series   •   Description C7 = CCGA Tool-set   NAME • Description OPTIC = Complete Set RETICLE = Spare Reticle FRAME = Reticle Frame CLAMP = Frame Clamp PANEL = Uncut Reticle   Code • Pad Matrix 33 = 33x33 Odd 34 = 34x34 Even 41 = 41x41 Odd 42 = 42x42 Even Other Available Code • Pad Pitch P.8 = 0.8mm P1.0 = 1.0mm P1.27 = 1.27mm Variation Code • Version A • Version A B • Version B     Drawing Number System       2         1         42         00     Series Pitch Matrix Version Code • Description 2 = OPTICAL Alignment Reticle 0 = Misc  Code • Pitch 1 = 1.0mm   2 = 1.27mm 4 = 0.4mm   5 = 0.5mm   6 = 0.65mm 8 = 0.8mm   9 = Special 00 = Complete Set 01 = Spare parts Code • Matrix 33 = 33x33 34 = 34x34 41 = 41x41 42 = 42x42 Call for other Code • Description 00   = Spare Reticle 01~09 = Complete Set 10~59 = Spare Parts 60~69 = Uncut Panel         ECCN: EAR99 Export Administration Regulations (EAR) HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS ITAR: Not restricted.
Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models. For PC   •   MAC Version
