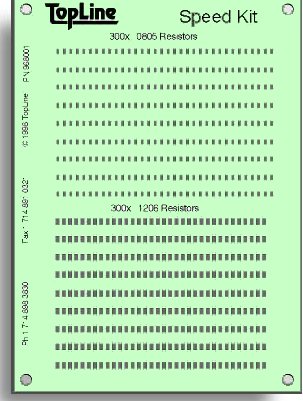

Chip Shooter Kit
0805 and 1206 Chips


Actual Size: 4" x 5.5" (100 x 140mm)

     Put your machine to the test. TopLine's Speed Kit is a low cost way for you to measure the component per hour (CPH) rating of pick & place machines. Use to benchmark and compare the performance of different machines.

Each Side has land patterns for 300 each 0805 and 1206. Total of 1200 pads on the board.
This kit can be used for placement, soldering or epoxy dispenser testing.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    Click Pad dimensions

    •   Manual
    Assembly    		 Machine Run
    Component
    Order #
    968000
    1 Kit
    Order #
    968003
    3 Kits
    Order #
    968010
    10 Kits
    Order #
    968025
    25 Kits
    Order #
    968050
    50 Kits
    Board 1 3 10 25 50
    0805 Chips 1,000 5,000 10,000 15,000 20,000
    1206 Chips 1,000 5,000 10,000 15,000 20,000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 968004
    Solder Paste Artwork, Gerber File, Order Number 968005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 968001
