W4P1 Narrow Tape
W=4mm, P=1mm

Chip Menu   Resistor   Tantalum   Inductor   Melf   AL Cap   Chip Array   Bulk Cassette

W4P1 Narrow Tape (W=4mm, P=1mm)
Capacitor W4P1 • Pb-Free  • RoHS  • Tin (Sn) • Lead Free
Size
(inch)
Size
(metric)
Qty
7" Reel
Tape 7" Reel
Order Number
008004
0.008" x 0.005"
0201mm
0.20 x 0.125mm
5,000
10,000
20,000
40,000
4mm - W4P1
Pitch 1mm
Plastic
SC008004E7A-W4P1
01005
0.016" x 0.08"
0402mm
0.4 x 0.2mm
5,000
10,000
20,000
40,000
4mm - W4P1
Pitch 1mm
Plastic
SC01005E7A-W4P1

Resistor W4P1  • Pb-Free  • RoHS  • Tin (Sn) • Lead Free
Size
(inch)
Size
(metric)
Qty
7" Reel
Tape 7" Reel
Order Number
---
0.012" x 0.006"
03015mm
0.3 x 0.15mm
Th=0.11mm
5,000
10,000
20,000
40,000
4mm - W4P1
Pitch 1mm
Plastic
SR03015E7A-W4P1
Classic Wrap Termination
---
0.012" x 0.006"
03015mm
0.3 x 0.15mm
Th=0.11mm
5,000
10,000
20,000
40,000
4mm - W4P1
Pitch 1mm
Plastic
SR03015BT-E7A-W4P1
Bottom Termination
01005
0.016" x 0.08"
0402mm
0.4 x 0.2mm
5,000
10,000
20,000
40,000
4mm - W4P1
Pitch 1mm
Plastic
SR01005E7A-W4P1


CTREEL - Empty Carrier Tape - W4P1 • PSA Cover tape sealed
For Dry Runs • Pick and Place Machine Testing • Low Cost
Size
(inch)
Size
(metric)
Qty
7" Reel
W4P1 Tape 7" Reel
Order Number
01005
0.016" x 0.08"
0402
0.4 x 0.2mm
5,000
10,000
40,000
Wide 4mm
Pitch 1mm
Embossed Plastic
CTREEL 7X4MM-W4P1

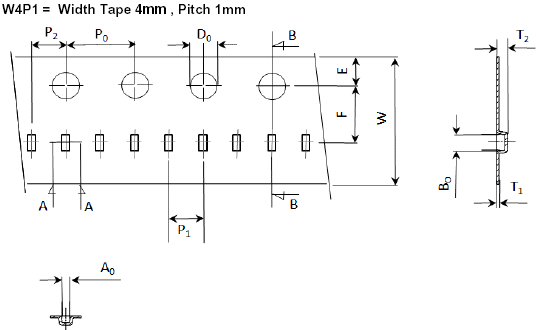

Tape Specification


Tape Dimensions
Code Size
(metric)
P1 1.0mm ±0.02
Po 2.0mm ±0.04
P2 1.0mm ±0.02
Ao 0.23mm ±0.02
Bo 0.45mm ±0.02
W 4.0mm ±0.05
E 0.9mm ±0.05
F 1.8mm ±0.04
Do 0.8mm ±0.04
T1 0.15 ~ 0.40mm
T2 0.5mm Max
