QFP256 Kit
0.4mm Pitch

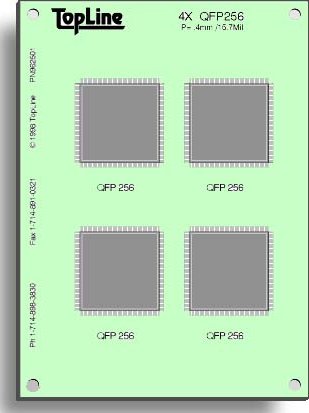

Actual Size: 4" x 5.5" (100 x 140mm)

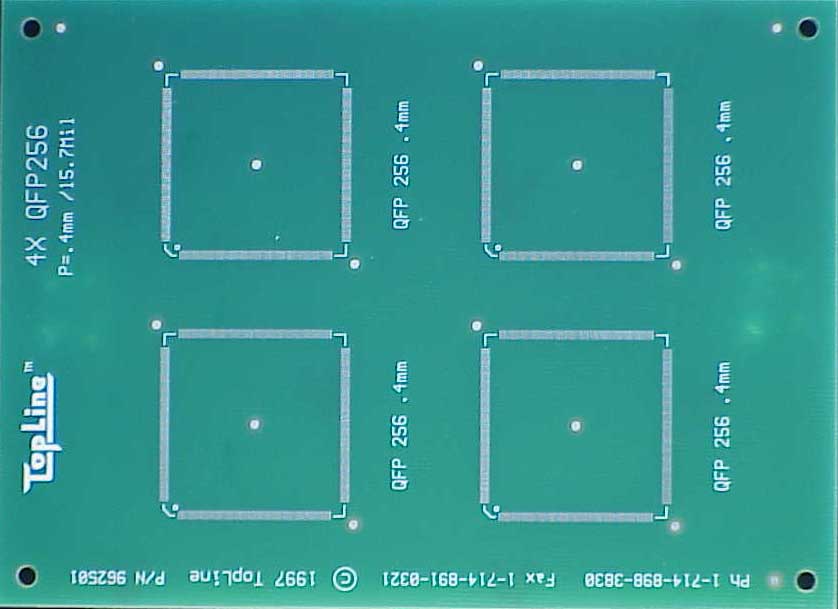

   Be on the cutting edge with 0.4mm (15.7Mil) pitch. It's guaranteed to push vision and soldering equipment to its limits. Components are provided on tape and reel.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks


    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    962500
    1 Kit
    Order #
    962506
    6 Kits
    Order #
    962512
    12 Kits
    Order #
    962525
    25 Kits
    Order #
    962550
    50 Kits
    Board   1 6 12 25 50
    QFP256 0.4mm 4 25 50 100 200

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 962504
    Solder Paste Artwork, Gerber File, Order Number 962505
    Solder Paste Stencil, Order Number 962509, Call for Details

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 962501
    QFP256 1 100860
    QFP256 25 229639
    QFP256 50 229641
