Rework Practice Kit
Includes Fine-Pitch


Actual Size: 4" x 5.5" (100 x 140mm)

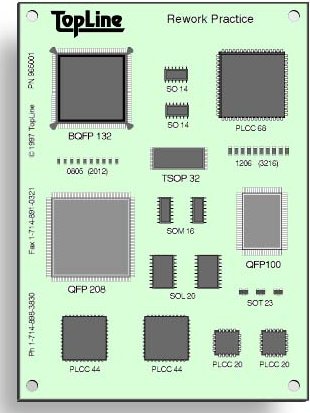

    This Rework Practice Kit is designed for all skill levels. Includes fine-pitch components often found in real world rework situations. Kit is also run in quantities of 25 up.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

  •   Manual Assembly Machine Run
    Component Pitch
    Order #
    965000
    1 Kit

    Order #
    965010
    10 Kits

    Order #
    965025
    25 Kits

    Order #
    965050
    50 Kits

    Order #
    965100
    100 Kits
    Board   1 10 25 50 100
    QFP208 0.5mm 1 10 25 50 100
    TSOP32 0.5mm 1 10 100 50 100
    QFP100 0.65mm 1 10 100 50 100
    BQFP132 25 mils 1 10 50 50 100
    PLCC20 50 mils 2 25 50 100 200
    PLCC44 50 mils 2 25 50 100 200
    PLCC68 50 mils 1 10 50 50 100
    SO14 50 mils 2 25 50 100 200
    SOM16 50 mils 2 25 50 100 200
    SOL20 50 mils 2 25 50 100 200
    SOT23 50 mils 10 100 500 500 500
    0805 Chips 50 mils 10 100 500 500 1000
    1206 Chips 50 mils 10 100 250 500 1000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 965004
    Solder Paste Artwork, Gerber File, Order Number 965005
    Solder Paste Stencil, Order Number 965009, Call for Details

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 965001
    QFP208 1 100830
    TSOP32 1 100640
    QFP100 1 100730
    BQFP132 1 100760
    PLCC68 1 100580
