Rotational Placement Kit
Test Accuracy to ±0.5


Actual Size: 4" x 5.5" (100 x 140mm)

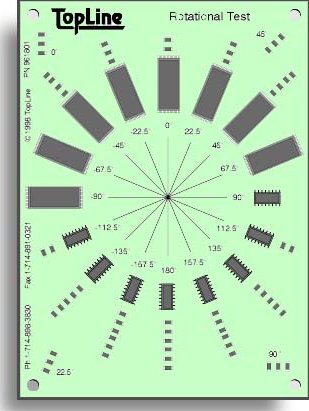

     Be on target! Some problems do not become evident until you start rotating components. TopLine's Rotational Placement Kit is designed to test the rotational accuracy on your system to ±0.5°.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    961800
    1 Kit
    Order #
    961803
    3 Kits
    Order #
    961806
    6 Kits
    Order #
    961812
    12 Kits
    Order #
    961825
    25 Kits
    Board   1 3 6 12 25
    TSOP32 0.5mm 8 25 50 100 200
    SO16 1.27mm 8 25 50 100 200
    1206 Chips - 100 250 500 1000 5000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 916804
    Solder Paste Artwork, Gerber File, Order Number 916805
    Solder Paste Stencil, Order Number 916809, Call for Details

    Spare Parts
    Components Quantity Order Number
    0402/0603 Board Only 1 916801
    TSOP32 25 229563
    TSOP32 50 229563
    SO16 100 229522
