BGA Pads

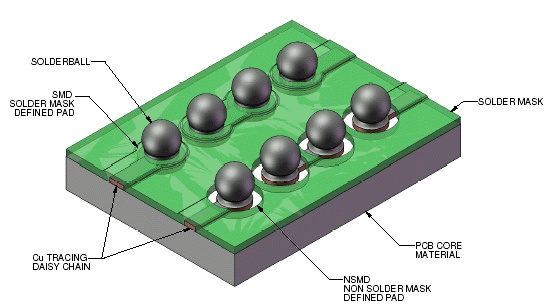

SMD (Solder Mask Defined)
compared to
NSMD (Non-Solder Mask Defined)

Which is the correct PCB pad?
PDF version    •       360 ° Model

Choice of SMD vrs NSMD is determined by the customer.
PCB board dimensions are presented only as a guideline.
Designers should use their own experience.

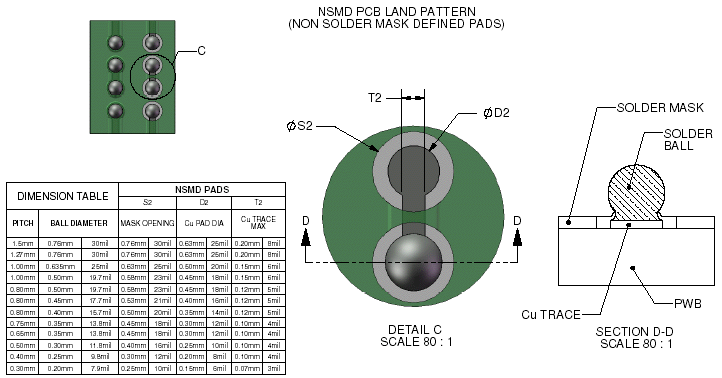

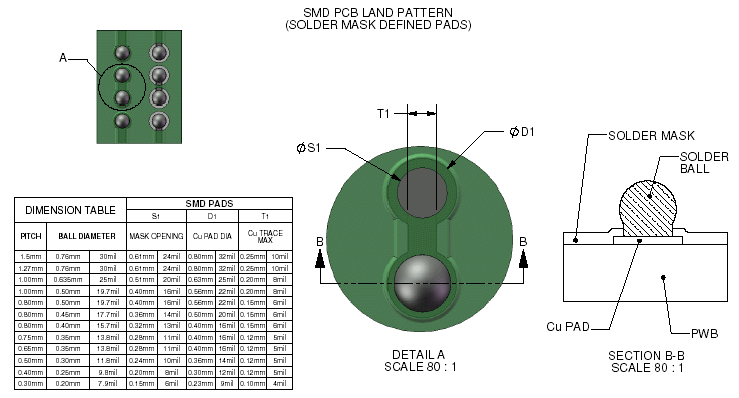

Top View SMD (right) vrs NSMD (Left):

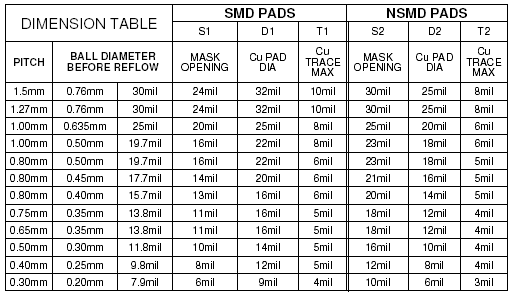

Dimension table for SMD vrs NSMD Pads:


PDF Version: Recommended PCB Pads


PDF Version: Recommended PCB Pads


PDF Version: Recommended PCB Pads





Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version
