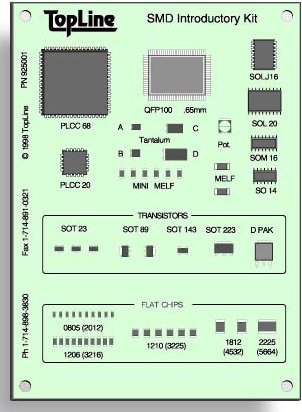

SMD Introductory Kit


Actual Size: 4" x 5.5" (100 x 140mm)

    The SMD Inroductory Kit includes a wide range of popular easy-to-handle components.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

    •   Manual Assembly Machine Run
    Component Pitch
    Order #
    925000
    1 Kit
    Order #
    925010
    10 Kits
    Order #
    925025
    25 Kits
    Order #
    925050
    50 Kits
    Order #
    925100
    100 Kits
    Board   1 10 25 50 100
    QFP100 0.65mm 1 10 25 50 100
    SO14 50 mils 1 10 100 50 100
    SOM16 50 mils 1 10 100 50 100
    SOL20 50 mils 1 10 50 50 100
    SOLJ16 50 mils -0- -0- -0- -0- -0-
    PLCC20 50 mils 1 10 50 50 100
    PLCC68 50 mils 1 10 25 50 100
    SOT23 - 4 30 250 500 500
    SOT89 - 4 20 100 100 200
    SOT143 - 10 10 100 100 100
    SOT223 - 10 10 100 100 100
    DPAK - 1 10 50 100 100
    Tantalum-A - 2 10 100 100 100
    Tantalum-B - 2 10 100 100 100
    Tantalum-C - 2 10 100 100 100
    Tantalum-D - 2 10 100 100 100
    MELF - 10 20 250 250 250
    mini-MELF - 10 100 500 500 500
    Potentiometer - 1 10 100 100 100
    0805 Chip - 10 100 500 500 500
    1206 Chip - 10 100 250 500 1000
    1210 Chip - 10 100 250 500 1000
    1812 Chip - 2 50 100 100 200
    2225 Chip - 1 10 100 100 100

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 925004
    Solder Paste Artwork, Gerber File, Order Number 925005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 925001


    Back To Kits    Back To Products    TopLine Home
