TO3
JEDEC TO-3 Package
TopLine Dummy Component
For training, practice and evaluation


TO3-2L-Outline Drawing

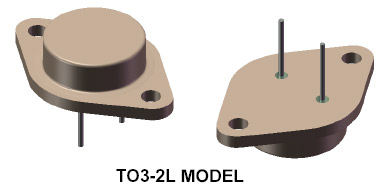

  360 ° TO3-2L Model

TO3-8L Outline Drawing

Quick Specs:
Pin Count 2L, 4L and 8L
Pitch 0.433" (11mm)
Metal Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
TO3 = 2-Lead (Standard)
TO3-4 = 4-Lead
TO3-8 = 8-Lead


Part Numbering System
TO3 M
Jedec Series Packaging
Metal Case Blank=Bulk
M=Tube
Options: open Headers and cans available for packaging live die.
State your die size requirement.
