13 page TSOP Drawings Library Type 1  and  Type 2 in PDF format.



TSOP Type 1

Leads Size Lead Pitch Order Number Daisy Chain Drawing 360° Rotatable
Solidworks
Model
28 8 x 13.4mm 0.55mm TSOP28ST21.6-T1 Daisy Chain Drawing
28 / 32 8 x 20mm 0.5mm TSOP28/32T19.7-T1 - Drawing

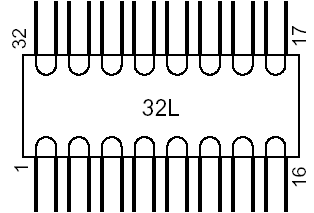

32 8 x 14mm 0.5mm TSOP32ST19.7-T1 Daisy Chain Drawing
32 8 x 20mm 0.5mm TSOP32T19.7-T1 Daisy Chain Drawing

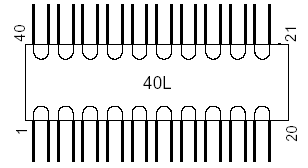

40 10 x 14mm 0.5mm TSOP40ST19.7-T1 Daisy Chain Drawing
40 10 x 20mm 0.5mm TSOP40T19.7-T1 Daisy Chain Drawing 360° Model

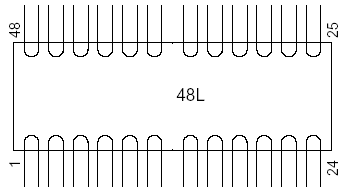

48 12 x 20mm 0.5mm TSOP48T19.7-T1 Daisy Chain Drawing
56 14 x 20mm 0.5mm TSOP56T19.7-T1 - Drawing
Lead Free add to Part Number: TIN = Sn100

Daisy Chain add -DE to end of Part Number
Isolated circuit without internal connections, add -ISO to end of Part Number.
Check for availability. Some packages are E.O.L. (End of Life)



TSOP Type 2

Leads Size Lead Pitch Order Number Outline Drawing 360° Rotatable
Solidworks
Model
32 10 x 21mm 1.27mm TSOP32T50-T2 Drawing
40 / 44 10 x 18.4mm 0.8mm TSOP40/44T30-T2 Drawing
44 10 x 18.4mm 0.8mm TSOP44T30-T2 Drawing
44 / 50 10 x 21mm 0.8mm TSOP44/50T30-T2 Drawing
50 10 x 21mm 0.8mm TSOP50T30-T2 Drawing
54 10 x 22.2mm 0.8mm TSOP54T30-T2 Drawing
66 10 x 22.2mm 0.65mm TSOP66T25-T2 Drawing
86 10 x 22.6mm 0.5mm TSOP86T19.7-T2 Drawing
For Lead Free add to Part Number: TIN = Sn100

Daisy Chain Add -DE to end of Part Number
Isolated circuit without internal connections, add -ISO to end of Part Number.
Check for availability. Some packages are E.O.L. (End of Life)
