QFNTray
JEDEC Matrix IC Trays

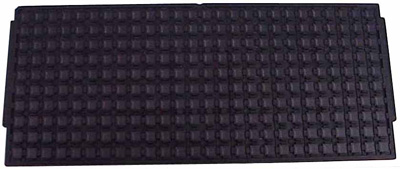

QFN IC matrix trays conform to JEDEC standards.
Small Quantity Orders Welcome

Dimensions/Coordinates  •   Full Tray Catalog PDF  •  About JEDEC Trays

/td>


QFN
Body Size
Quantity
Pockets
Per Tray
Matrix
Row-Column
Reference Order TopLine
Part Number
QFN Tray
3 x 3mm 490 14 x 35 Standard QFNTRAY3mm-14x35
3 x 3mm 624 16 x 39 High-Capacity QFNTRAY3mm-16x39
4 x 4mm 490 14 x 35 Standard QFNTRAY4mm-14x35
5 x 5mm 490 14 x 35 Standard QFNTRAY5mm-14x35
5 x 5mm 576 16 x 36 High-Capacity QFNTRAY5mm-16x36
6 x 6mm 490 14 x 35 Standard QFNTRAY6mm-14x35
7 x 7mm 260 10 x 26 Standard QFNTRAY7mm-10x26
7 x 7mm 416 13 x 32 High Capacity QFNTRAY7mm-13x32
8 x 8mm 260 10 x 26 Standard QFNTRAY8mm-10x26
9 x 9mm 260 10 x 26 Standard QFNTRAY9mm-10x26
10 x 10mm 168 8 x 21 Standard QFNTRAY10mm-8x21


Optional Features:
Specify max temperature: 125°C, 140°C, 150°C, 180°C when ordering.
Tray color Black.
Colored tray clip for sorting, testing and aging identification
