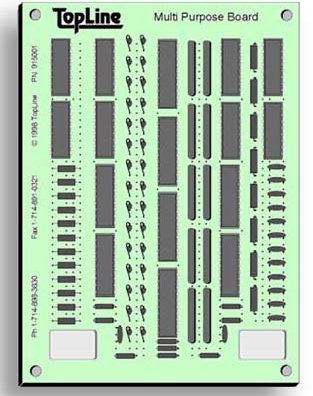

Multipurpose Throughhole Kit
For Machine or Manual Assembly


Actual Size: 4" x 5.5" (100 x 140mm)

    We supply the board and a wide assortment of components. This board has room for at least 200 different components. You decide where to insert the components.

Features:

  • FR4 Board .062"
  • Single Sided
  • Tooling Holes .125"
  • 920 Plated Throughholes


    Hole Pitch Drawing.


    Click here to download our Kits catalog in PDF format.

    •   Manual Assembly Machine Run
    Component
    Order #
    916000
    1 Kit
    Order #
    916025
    25 Kits
    Order #
    916050
    50 Kits
    Order #
    916100
    100 Kits
    Order #
    915050
    50 Kits
    Order #
    915100
    100 Kits
    Board 1 25 50 100 50 100
    2-Pin DIP 25 400 800 1600 800 1600
    8-Pin DIP 5 100 200 400 200 400
    14-Pin DIP 5 100 200 400 200 400
    16-Pin DIP 5 100 200 400 200 400
    18-Pin DIP 5 100 200 400 200 400
    20-Pin DIP 5 100 200 400 200 400
    SIP Resistor
    Network    		 10 100 200 400 200 400
    Oscillator 2 40 100 200 100 200
    Radial
    Capacitor    		 10 250 500 1000 500 1000
    1/8 W Axial
    Resistor    		 50 1000 2500 500 2500 500
    1/4 W Axial
    Resistor    		 50 1000 2500 500 2500 500
    1/2 W Axial
    Resistor    		 20 1000 2500 500 2500 500
    1 W Axial
    Resistor    		 10 500 1000 2500 1000 2500
    Total
    Pieces    		 215 5000 11,500 23,500 11,500 23,500

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 915001
