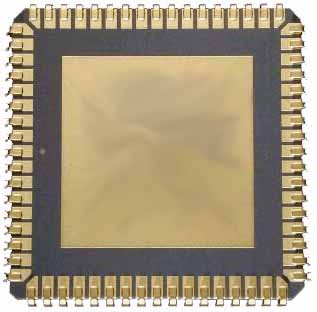

CLCC68J50
J-Lead Ceramic Chip Carrier 68L
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

 Quick Specs:
Pin Count 68L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.95" SQ (24.1mm SQ)
J-Lead Ceramic Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
S.I.R. Testing
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with J-Leads:
CLCC68J50 = Gold Leads. With Lid
CLCC68J50-SC = Solder Dip. With Lid
CLCC68J50-N = Gold Leads. Without Lid
CLCC68J50-ISO = Isolated Pins. Gold Leads
CLCC68J50-ISO-SC = Isolated Pins. Solder Leads
CLCC68J50-DE = Daisy Chain. Gold Leads
CLCC68J50-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
CLCC 68 J 50 - N
Series Nbr Pins Lead
Info		 Pitch
Mils		 - Options
Ceramic Chip
Carrier.
Quad Sides.		   J-Leads
Bulk Packed
in tray		 50 Mils
0.050-inch
1.27mm		   -N=Without lid
-DE=Daisy Chain. With lid
-ISO=Isolated Pins
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Option -N open cavity available for packaging live die.
State your die size requirement.
Solderable combo-lids are available.

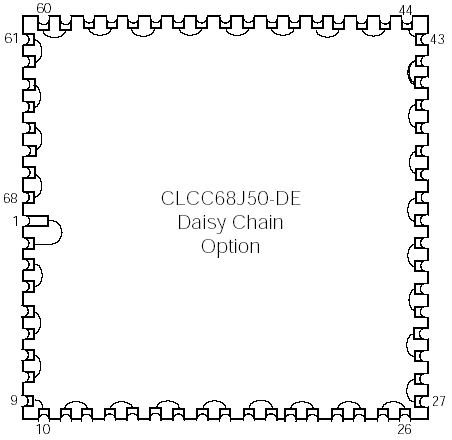

Daisy Chain Option -DE
