FP56F25R.40x.72B
Flat Pack FP 56L

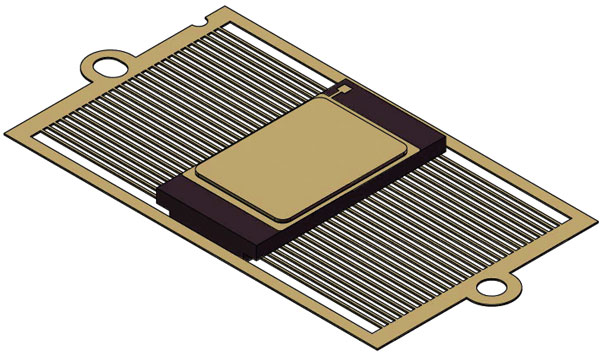

TopLine Dummy Component
For training, practice and evaluation

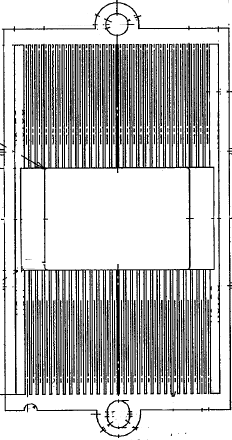

Click for Outline Drawing

 Quick Specs:
Pin Count 56L
Pitch 25 mil - 0.025" (0.635mm)
Body Size 0.40" x 0.72" (10.1 x 18.3mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP56F25R.40x.72B = Gold Leads. With Lid
FP56F25R.40x.72B-SC = Solder Dip. With Lid
FP56F25R.40x.72B-N = Gold Leads. Without Lid
FP56F25R.40x.72B-DE = Daisy Chain. Gold Leads
FP56F25R.40x.72B-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 56 F 25 R .40x.72 B - DE
Series Nbr Pins Lead
Shape		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 56 = 56 Leads Flat Leads
With Tie-bar		 25 Mils
0.025-inch
0.635mm		 Rectangular 0.40"x0.72"
10.1x18.3mm		 Bottom   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.

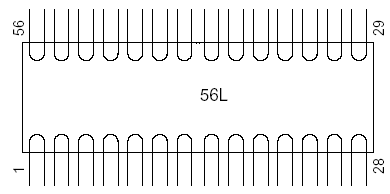

Daisy Chain Option -DE
