SC Series Transistor & Diode |
|||
 | ||||
|
||||
|
|
|||||||||||||||||
| SC Series Transistors | |||||
SC59-SOT23 / SC70-SOT323
SC74A-SOT25 / SC70-5 SOT353
SC74-SOT26 / SC70-6 SOT363
SC82-SOT343
SC62-SOT89
SC73-SOT223
| |||||
| Japanese Size | |||||
| Size | Cross Reference | Qty on Reel | Tape Width | Order Number Outline Drawing | Daisy Chain |
| SC59 | TO-236AA / SOT-346 | 3000 | 8mm | SC59E7A | - |
| SC61A | 4-Lead | 3000 | 8mm | SC61A-E7A | - |
| SC61B | Reverse Wide 4-Lead | 3000 | 8mm | SC61B-E7A | - |
| SC62 | SOT89 / TO-243AA | 1000 | 12mm | SC62E7A | Daisy Chain |
| SC63 | DPAK | 2500 | 12mm | SC63E13A | Daisy Chain |

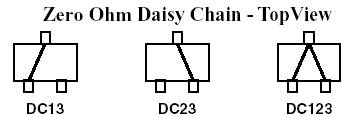

| SC70 | SOT323 | 3000 | 8mm | SC70E7A | Daisy Chain |
| SC70-5 | SOT353 | 3000 | 8mm | SC70-5E7A | Daisy Chain |
| SC70-6 | SOT363 | 3000 | 8mm | SC70-6E7A | Daisy Chain |

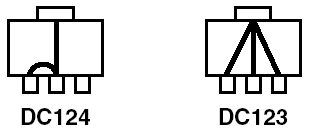

| SC73 | SOT223 TO-261A | 2500 | 16mm | SC73E13A | Daisy Chain |
| SC74 SC74R |

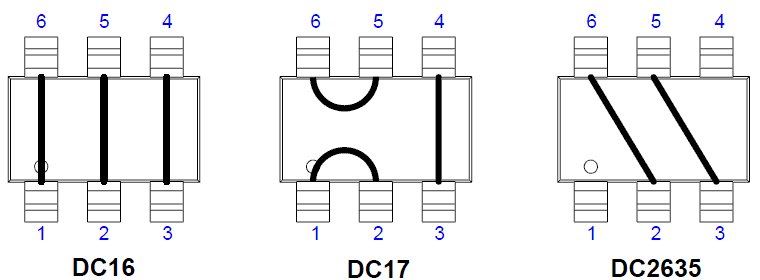

SOT26 / SOT23-6 / SOT457 | 3000 | 8mm | SC74E7A | Daisy Chain |
| SC74A | SOT25 / SOT23-5 | 3000 | 8mm | SC74AE7A | Daisy Chain |
| SC75A | SC90 / SOT416 | 3000 | 8mm | SC75A-E7A | - |
| SC76 | SOD323G | 3000 | 8mm | SC76E7A | DC12 |
| SC79 | SOD523F | 3000 | 8mm | SC79E7A | DC12 |
| SC82 | SOT343 - 4 Lead | 3000 | 8mm | SC82E7A | Daisy Chain |
| SC83A | D2PAK | 800~1000 | 24mm | SC83AE13A | Daisy Chain |
| SC88 | SOT363 / SC70-6 | 3000 | 8mm | SC88E7A | Daisy Chain |
| SC88A | SOT353 / SC70-5 | 3000 | 8mm | SC88AE7A | Daisy Chain |
| SC89 | SOT490 / SC75A with Flat Leads |
3000 | 8mm | SC89E7A | - |
| SC90 | Micro-SOT | 3000 | 8mm | SC90E7A | - |
| SC101 | SOT883, DFN3L 1.0x0.6mm | 8000 | 8mm | SC101E7A | - |
| For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number. |
|||||
| Power Device | |||||
 | |||||
| Size | Cross Reference | Qty on Reel | Tape Width | Order Number Outline Drawing | Daisy Chain |

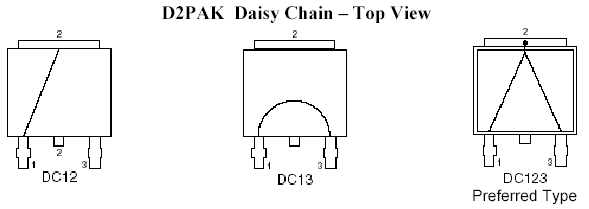

| SC83A | D2PAK ~ TO-263AB | 800~1000 | 24mm | SC83A-E13A | Daisy Chain |
| For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number. |
|||||
| Rectangular Case- Gull Wing Leads - Diode | |||||
 Gull-Wing Leads | |||||
| Size | Cross Reference | Qty on Reel | Tape Width | Order Number Outline Drawing | Daisy Chain |

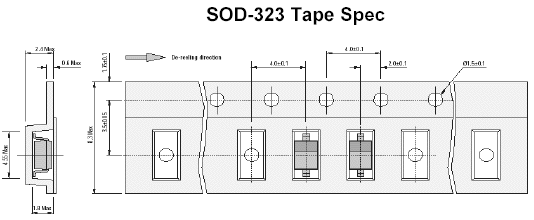

| SC76 | SOD323 1.7 x 1.25mm Gull Wing |
3000 | 8mm | SC76E7A | DC12 |
| For Lead Free, add -TIN to part number. | |||||
|
