SOT28

8-Lead SOT23-8 Package

TopLine Dummy Jumper Component

For training, practice and PCB correction

Click for Outline Drawing

Quick Specs:
Pin Count 8L
Pitch 0.65mm
Body 1.6 x 2.9mm
Small Outline Transistor/Diode

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers: SOT28


Part Numbering System
SOT28	E7A	-	T	-	Option
Series	Packaging		Plating	-	Daisy Chain
Small Outline Transistor	E7A = 7" Reel 3000pcs E4A = 4" Reel 500pcs B = Bulk		T = Sn100 RoHS Pb-Free		Blank = None DC18 DC28 DC30 ISO = Isolated

Options: Add Daisy Chain to part number: DC18, DC28 or DC30. Other jumper configurations available.

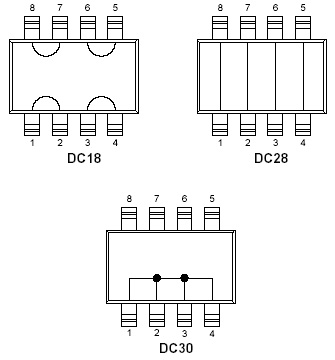

Top View of Internal Daisy Chain Option. Zero Ohm Jumper

Related Links: SOT SOD TO DO
