Made By Hiratsuka Factory: Gold and Silver Wide Slit-Cut Ribbon |
||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||
| About TANAKA: TANAKA is the premier manufacturer of wire to the sensor and medical industry. TANAKA manufactures a full range of Gold (Au) , Silver (Ag), Platinum (Pt), copper and aluminum high grade wire for bonding purposes and special applications. Gold Ribbon Type AuR 25~250um width. |
 Wide Gold Ribbon Spiral Wound Spool |
|
| AuC Series - Wide Slit-Cut Gold Ribbon for special applications |
|||||||||||
| Model Type |
Alloy | Thickness Metric |
Width Metric |
Thickness Mil |
Width Mil |
Length Meters |
Length Feet |
Part Number | Order Nr | ||
| AuC | 4N Gold Au |
25µm ±5µm |
500µm ±25µm |
1.0mil | 20mil | 20m | 65ft | AuC-500x25Y20 | 388182 | ||
| 25µm ±5µm |
1000µm ±50µm |
1.0mil | 40mil | 20m | 65ft | AuC-1000x25Y20 | 388192 | ||||
| 50µm ±8µm |
250µm ±12µm |
2.0mil | 10mil | 20m | 65ft | AuC-250x50Y20 | 388252 | ||||
| 50µm ±8µm |
500µm ±25µm |
2.0mil | 20mil | 20m | 65ft | AuC-500x50Y20 | 388282 | ||||
| 75µm ±10µm |
625µm ±30µm |
3.0mil | 25mil | 16m | 52ft | AuC-625x75Y16 | 388362 | ||||
| |||||||||||
| Note 1: Temper: Stress Relieved | |||||||||||
| Note 2: Slit-Cut customized widths available: 125µm , 250µm , 500µm , 625µm ,1000µm | |||||||||||
| Note 3: Tolerance: See table above. | |||||||||||
| Note 4: Narrow AuR Rolled Gold Ribbon | |||||||||||
 AgC Series - Wide Slit-Cut Silver Ribbon for special applications. |
|||||||||||
| Model Type |
Alloy | Thickness Metric |
Width Metric |
Thickness Mil |
Width Mil |
Length Meters |
Length Feet |
Part Number | Order Nr | ||
| AgC | 4N Silver Ag |
30µm ±5µm |
2500µm ±100µm |
1.2mil | 100mil | 25m | 82ft | AgC-2500x30W25 | 566082 | ||
| 50µm ±8µm |
3000µm ±150µm |
2.0mil | 120mil | 25m | 82ft | AgC-3000x50W25 | 566202 | ||||
| 70µm ±10µm |
4000µm ±200µm |
2.8mil | 160mil | 25m | 82ft | AgC-4000x70W25 | 566382 | ||||
| 100µm ±15µm |
5000µm ±200µm |
4.0mil | 200mil | 25m | 82ft | AgC-5000x100W25 | 566402 | ||||
| |||||||||||
| Note 1: Temper: Stress Relieved | |||||||||||
| Note 2: Slit-Cut customized widths available: 2500µm , 3000µm , 4000µm , 5000µm | |||||||||||
| Note 3: Tolerance: See table above | |||||||||||
| Note 4: SAG Type Round Wire Silver 99.99% (4N) | |||||||||||
| AuW Type - Gold (Au-4N) High Power Round Wire |
||||||||||
| Type | Alloy | Ø Diameter | Length Meters |
Length Feet |
Part Number | Order Nr | ||||
| AuW |
4N Gold Au99.99% High Power Special Applications |
Ø 100µm (Ø 4.0 mil) |
50m 100m |
160ft 320ft |
AuW-100E50 AuW-100E100 |
342000 342001 |
||||
| Ø 125µm (Ø 5.0 mil) |
25m 50m 100m |
80ft 160ft 320ft |
AuW-125E25 AuW-125E50 AuW-125E100 |
342019 342010 342011 |
||||||
| Ø 150µm (Ø 6.0 mil) |
25m 50m 100m |
80ft 160ft 320ft |
AuW-150E25 AuW-150E50 AuW-150E100 |
342029 342020 342021 |
||||||
| Ø 200µm (Ø 8.0 mil) |
25m 50m 100m |
80ft 160ft 320ft |
AuW-200E25 AuW-200E50 AuW-200E100 |
342049 342040 342041 |
||||||
| Ø 250µm (Ø 10.0 mil) |
10m 25m 50m |
32ft 80ft 160ft |
AuW-250E10 AuW-250E25 AuW-250E50 |
342057 342059 342050 |
||||||
| Ø 500µm (Ø 20.0 mil) |
5m 10m 25m 50m |
16ft 32ft 80ft 160ft |
AuW-500E5 AuW-500E10 AuW-500E25 AuW-500E50 |
342115 342117 342119 342110 |
||||||
| ||||||||||
| Note 1: For Special High Power Applications. | ||||||||||
| Note 2: Wire diameter available: 100µm , 125µm , 150µm , 200µm , 250µm , 500µm | ||||||||||
| Note 3: Standard Tolerance: Ø100μm ±3μm • Ø125~150μm ±5μm • Ø200μm ±7μm • Ø250~500μm ±10μm | ||||||||||
| Note 4: AuW-Type Au-4N made in Hiratuska Japan. | ||||||||||
| Note 5: Intended for engineering samples and evaluation only. | ||||||||||
| Note 6: Green=Start • Red=End. | ||||||||||
| Part Number System | |||||||||
| AuC | - | 1000 | x | 25 | Y | 20 | |||
| Series | Width µm | Thickness µm | Spool Type | Length Meters | |||||
|
Gold Ribbon AuC = 388xxx (Slit-Cut) AuR = 316xxx (Rolled) Silver Ribbon AgC = 566xxx (Slit-Cut) Gold Wire AuW = 342xxx (Au-4N Round Wire) |
Code Mil AuC Gold Ribbon 125 5mil 250 10mil 500 20mil 625 25mil 1000 40mil AgC Silver Ribbon 2500 100mil 3000 120mil 4000 160mil 5000 200mil AuW 4N-Au Gold Wire 100 4.0mil 125 5.0mil 150 6.0mil 200 8.0mil 250 10mil 500 20mil |
Code Mil AuC Gold Ribbon 25 1.0mil 50 2.0mil 75 3.0mil AgC Silver Ribbon 30 1.2mil 50 2.0mil 70 2.7mil 100 4.0mil AuW 4N Gold Wire Blank (Null) |

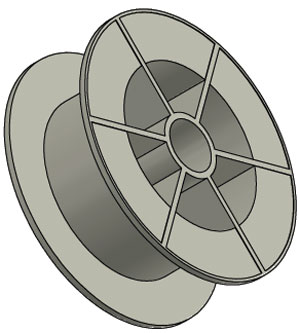

Plastic Spool AuC Gold Ribbon: Y = Ø50~60mm Diameter AgC Silver Ribbon W = Ø270mm Diameter AuW Gold 4N Au E = Ø58mm Diameter |
Meters Feet AuC Gold 16 52ft 20 65ft AgC Siliver 25 82ft 50 164ft 100 328ft AuW 4N Au 5 16ft 10 32ft 25 64ft 50 160ft 100 320ft Meters controlling dimension Other Length Available |
|||||
| |||||||||
|
Wire Order Number System |
|||||||||
| 3 | 88 | 18 | 2 | ||||||
| Alloy | Type & Description | Width x Thick | Length | ||||||
|
Code • Description 3 = Gold (Au) 5 = Silver (Ag) |
Code Description 88 = AuC Flat Ribbon Slit-Cut Foil Spiral Wound Spool (Y) - - - - 66 = AgC Flat Ribbon Slit-Cut Foil Large Spool (W) - - - - 16 = AuR Flat Ribbon Type FA Rolled 2" Spool - - - - 26 = AuR Flat Ribbon Type FA Rolled 1/2" Spool - - - 53 = AuR3 Flat Ribbon Type M3 Rolled Be Doping 2" Spool 42 = AuW Round Wire 4N-Au 100mm Spool (E) |
AuC Gold Ribbon µm Mil 13 125x25um (5x1.0mil) 16 250x25um (10x1.0mil) 18 500x25um (20x1.0mil) 19 1000x25um (40x1.0mil) 22 125x50um (5x2.0mil) 25 250x50um (10x2.0mil) 28 500x50um (20x2.0mil) 29 635x50um (25x2.0mil) 36 635x75um (25x3.0mil) ------ AgC Silver Ribbon µm Mil 08 2500x30um (100x1.2mil) 20 3000x50um (120x2.0mil) 38 4000x70um (160x2.7mil) 40 5000x100um (200x4.0mil) ------ AuW 4N Au Wire µm Mil 00 100um (4.0mil) 01 125um (5.0mil) 02 150um (6.0mil) 04 200um (8.0mil) 05 250um (10.0mil) 11 500um (20.0mil) |
Code Meters Feet AuC Gold Ribbon 1 = 16m (52ft) 2 = 20m (65ft) AgC Silver Ribbon 2 = 25m (82ft) 5 = 50m (164ft) 0 = 100m (328ft) AuW Gold Round Wire 5 = 5m (16ft) 7 = 10m (32ft) 9 = 25m (80ft) 0 = 50m (160ft) 1 = 100m (320ft) Meters controlling dimension Other Length Available |
||||||
| |||||||||
| HS Code - Harmonized System Tariff | |||||||||
| Item | HS Code | Wire Type | |||||||
| 1 | 7108.13.5500 | AuC - Gold Ribbon | |||||||
| 2 | 7108.13.7000 | AuW - Gold Round Wire | |||||||
| 3 | 7106.92.5000 | AgC - Silver Ribbon | |||||||
| |||||||||
|
||||||||||||||||||||||||||||||
