CERQUAD / CQFP Tray System

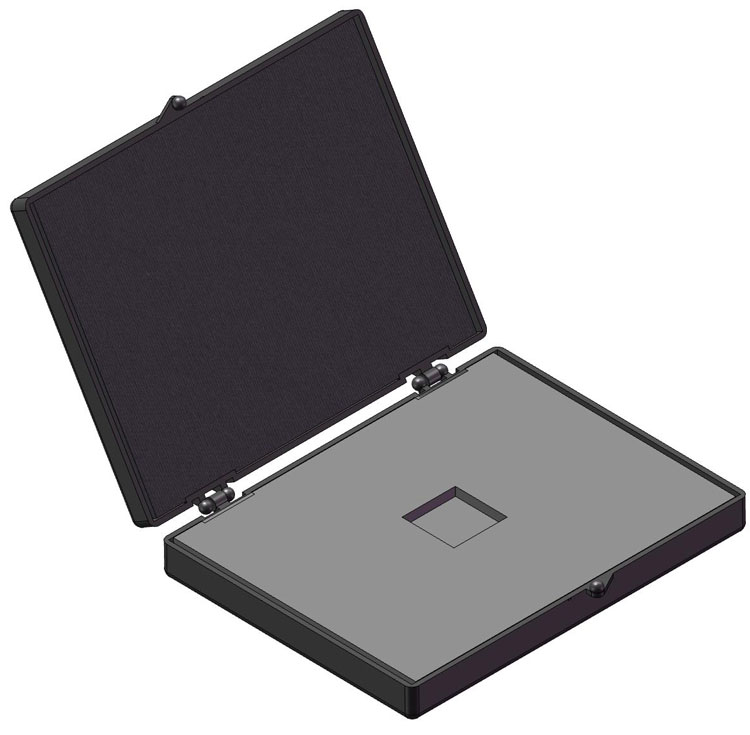

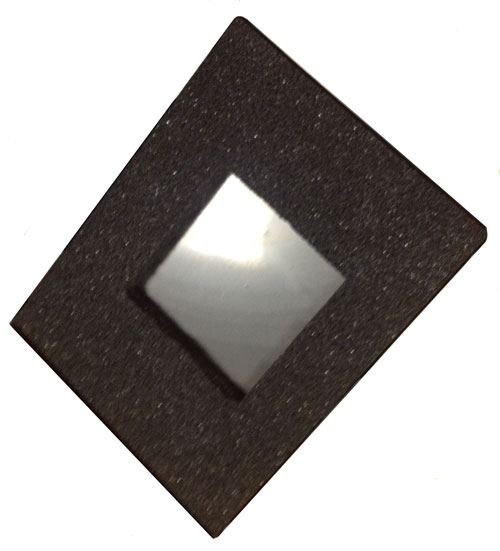

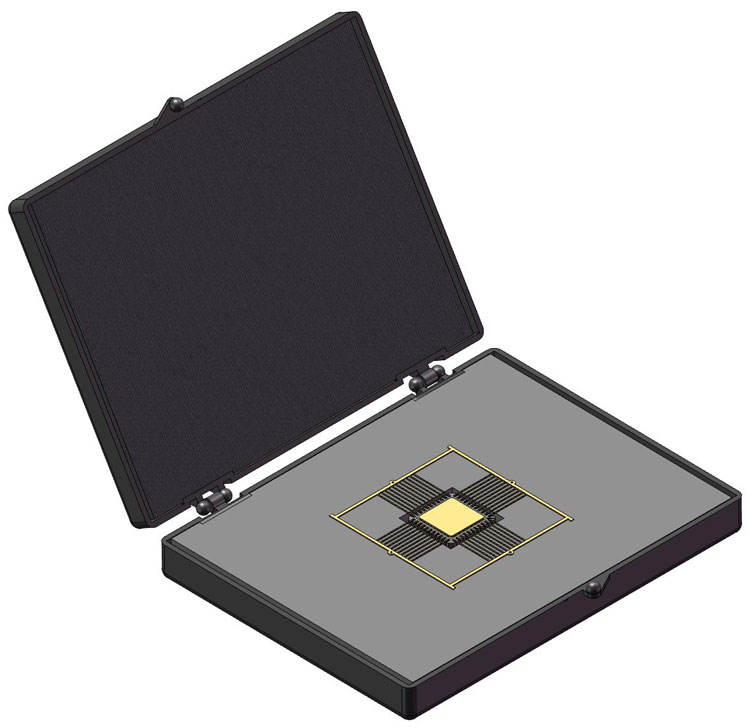

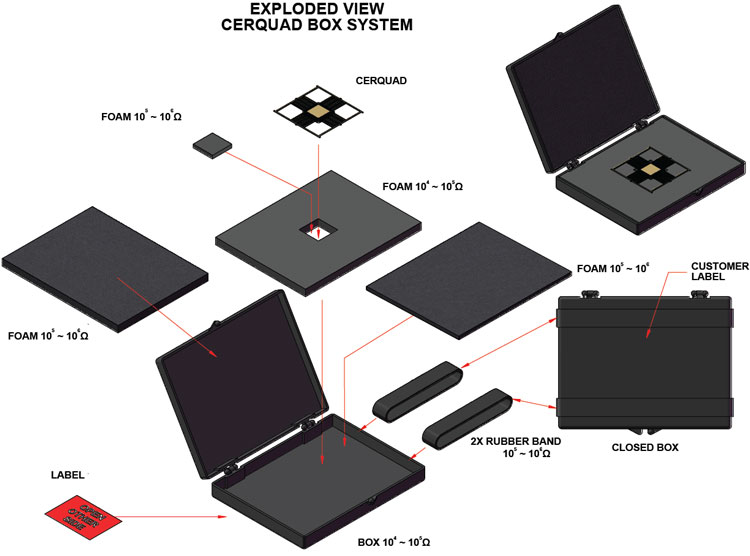

CERQUAD Components   •   CCGA Trays  •   Secure Transport and Storage System for CERQUAD/CQFP - Ceramic Quad Flat Pack Flat Leads on Tie-Bar About CQ1 Series CERQUAD/CQFP Tray Box Sets Carrier for transport and storage of individual CERQUAD/CQFP package with Flat Leads on Tie-Bar. Leads are fully protected in the carriers positioned in a hinged plastic case. Conductive foam adds gentle compression from the top and bottom to hold the CERQUAD/CQFP in place during transport. Attach customer label with part number and description fits on top side of hinged box. Custom solutions for odd-form components available.   Features Box Size: 4.5" x 3.5" x 0.625" Flat Leads 24~352 Part size: 10~50mm Tie-bar size: Up to 75x75mm Pitch 0.5mm to 1.27mm Custom sizes and pitch available Open View Tray Box Set  1  •   2  Closed View Tray Box Set  1   •  2  •   3  •   4  CQ1 Series Box Kit B.O.M. Contents           Conductive Box 4.5"x3.5" Firm Firm Window Frame Soft Void Filler Soft Bottom Label 4.5"x3.5" Rubber Band Conductive 3.0"L x 0.5"W Component Description Component Size Image Inside Box Order Number Box Set Hinged Box Top Foam Bottom Frame Insert Foam Bottom Compression Bottom Label Rubber Band CERQUAD28 1.27mm 11.4mm SQ 0.450" SQ Style 1 360° Model 950280 090625 090004 090030 090130 090006 090009 090005 CERQUAD44 1.27mm 16.5mm SQ 0.650" SQ Style 1 360° Model 950440 090625 090004 090025 090125 090006 090009 090005 CERQUAD84 0.635mm 16.5mm SQ 0.650" SQ Style 1 360° Model 950840 090625 090004 090025 090125 090006 090009 090005 CERQUAD164 0.635mm 28.7mm SQ 1.13" SQ Style 1 360° Model 951640 090625 090004 090032 090132 090006 090009 090005 CERQUAD240 0.50mm 32mm SQ 1.26" SQ Style 1 360° Model 952400 090625 090004 090035 090135 090006 090009 090005 Note 1: Contact TopLine for assistance for other configurations not shown above.     Spares and Accessories   Firm Foam Top Cover 4.5"x3.5" 0.25" Thick Foam Insert Frame I.D. = CERQUAD O.D. 4.5"x3.5" .25" Thick Soft Foam Conductive OD=CERQUAD 0.125" Thick Soft Foam Bottom Compression 4.5"x3.5" 0.125" Th Rubber Band Conductive #090005 3.0"L x 0.5"W 090004 090027 090034 090006 090005 360° Model 360° Model 360° Model 360° Model 360° Model Note 1: Contact TopLine for assistance for other configurations not shown above. Note 2: Standard Cartons for CQ1 black hinge carriers Packing Carton     Foam Dimension Table     Size mm Size Inch Hard Foam Frame .25" Thick Soft Foam Void Fill .125" Thick 13 x 13mm 0.51" x 0.51" 090030 090130 17 x 17mm 0.67" x 0.67" 090031 090131 19 x 19mm 0.75" x 0.75" 090025 090125 25 x 25mm 1.00" x 1.00" 090033 090133 28 x 28mm 1.125" x 1.125" 090028 090128 31 x 31mm 1.25" x 1.25" 090032 090132 35 x 35mm 1.375" x 1.375" 090035 090135 38 x 38mm 1.50" x 1.50" 090038 090138 48 x 48mm 1.89" x 1.89" 090002 090014 50 x 50mm 2.00" x 2.00" 090050 090150 59 x 59mm 2.34" x 2.34" 090008 090011 15 x 21mm 0.60" x 0.825" 090029 090129 25 x 38mm 1.00" x 1.50" 090039 090139       Tray Box System Model Number System     CQ        1     -     84         F         16.5MM         -         A     Series Number Devices In Tray   Nbr Leads Lead Shape Size (mm)   Version Tray Box Set CQ = CERQUAD/CQFP (4-Side Leads) FP = Flat Pack (Dual Side Leads) Code • Devices 1 = Single Multiple Devices in Tray Box 2 = 2 Devices 3 = 3 Devices 4 = 4 Devices 5 = 5 Devices   Nbr Leads 24 28 44 48 52 56 64 68 76 80 84 100 120 128 132 144 160 172 196 208 240 256 304 352 Other Code • Shape F = FLAT on Tie-Bar G = GULL on Tie-Bar H = GULL Cut & Trimmed J = J-Lead BodySize SQUARE 10.2mm = 0.40"SQ 11.4mm = 0.45"SQ 12.2mm = 0.48"SQ 14.0mm = 0.55"SQ 15.7mm = 0.62"SQ 16.5mm = 0.65"SQ 17mm = 0.67"SQ 19mm = 0.75"SQ 22mm = 0.87"SQ 24mm = 0.95"SQ 28mm = 1.02"SQ 29mm = 1.15"SQ 32mm = 1.26"SQ 35mm = 1.39"SQ 36mm = 1.45"SQ 37mm = 1.46"SQ 39mm = 1.54"SQ 40mm = 1.57"SQ 48mm = 1.89"SQ RECTANGULAR 14x20mm = .55"x.78" 25x34mm = .98"x1.35" Other       Complete Tray Box Set: Code • Carrier Mat'l A = Standard B = Rev B Z = Custom     Tray System Drawing Number System     9         5         208         0     Item Construction Leads Version   Code • Description 9 = Complete Tray Box Set 0 = Accessories   Code • Description 5 = CERQUAD with Tie-Bar 8 = FP Flat Pack with Tie-Bar   Number Leads 008~352 = 1.0mm       Version: Code • Column (L) Max 0 = A 1 = B 3 = C 4 = D 5 = E   ESD Surface Resistance Range Level Surface Resistance Conductive 103 ~ 105 Ω Static Dissipative 106 ~ 109 Ω Anti-Static 1010 ~ 1012 Ω   ECCN: EAR99 Export Administration Regulations (EAR) HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS HS Code: 3923.10.2000 Plastic Boxes for Packaging of Semicondutors ITAR: Tray boxes are not restricted.     Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.   TopLine Corporation 95 Highway 22 W Milledgeville, GA 31061, USA Toll Free USA/Canada (800) 776-9888 International: 1-478-451-5000 Email: sales@topline.tv ©2021 TopLine. All Rights Reserved. Home
