Lead Free
Axial Components



Axial Lead Devices


Case Size Device Type Lead Diameter Qty Tape/Reel Order No.
Resistors
0.070" x 0.125"
1.8 x 3.2mm		 1/8W-Resistor
Zero Ohm		 0.018"
0.45mm		 5000 Ammo Tape
52mm wide
5mm Tape Pitch		 CF18A-ZERO-TIN
0.095" x 0.256"
2.4 x 6.5mm		 1/4W-Resistor
Zero Ohm		 0.022"
0.55mm		 5000 Ammo Tape
52mm wide
5mm Tape Pitch		 CF14A-ZERO-TIN

Glass Diodes and Rectifiers
0.070" x 0.154"
2.0 x 4.0mm		 Glass Diode 0.020"
0.5mm		 5000 Ammo Tape
52mm wide
5mm Tape Pitch		 DO35A-TIN

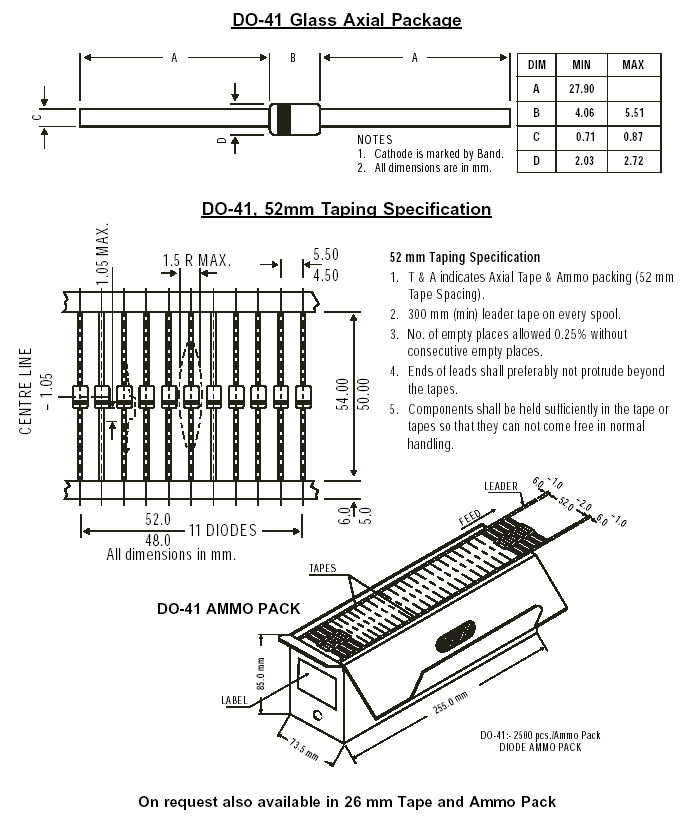

0.10" x 0.20"
2.5 x 5.0mm		 Glass Rectifier 0.032"
0.8mm		 2500pcs Ammo Tape
52mm wide
5mm Tape Pitch		 DO41A-GLASS-TIN

Lead Free Plating:Tin=Sn100

For Bulk: Remove "A" suffix from the order number.
