CLCC J-Lead
(CQFJ, JLCC, JLDCC)


Sealded Packages: J-Lead CLCC, CQFJ, JLCC and JLDCC ceramic Dummy Components for solder training and practice.

Daisy Chain option: Lead count 28L, 44L, 48L, 52L, 68L and 84L.

Open Cavity for die bonding: Add "-N" suffix to part number.

Bonding Wire.   •   Combo Lid Design Rules
J-LEAD
CLCC, CQFJ, JLCC, JLDCC

Number Leads Pitch Body Size
Square
Open Cavity
Order Number
Sealed Package
Order Number
Daisy Chain
Order Number
Daisy Chain
Diagram
360°Solidworks
Rotatable Model
28 50 Mil
1.27mm
0.45"
11.5mm
CLCC28J50-N
Model
CLCC28J50 CLCC28J50-DE Daisy Chain
44 50 Mil
1.27mm
0.65"
16.5mm
CLCC44J50-N
Model
CLCC44J50 CLCC44J50-DE Daisy Chain
48 40 Mil
1.0mm
0.56"
14.25mm
CLCC48J40-N
Model
CLCC48J40 CLCC48J40-DE Daisy Chain Model
52 50 Mil
1.27mm
0.75"
19.0mm
CLCC52J50-N
Model
CLCC52J50 CLCC52J50-DE Daisy Chain
68 50 Mil
1.27mm
0.95"
24.1mm

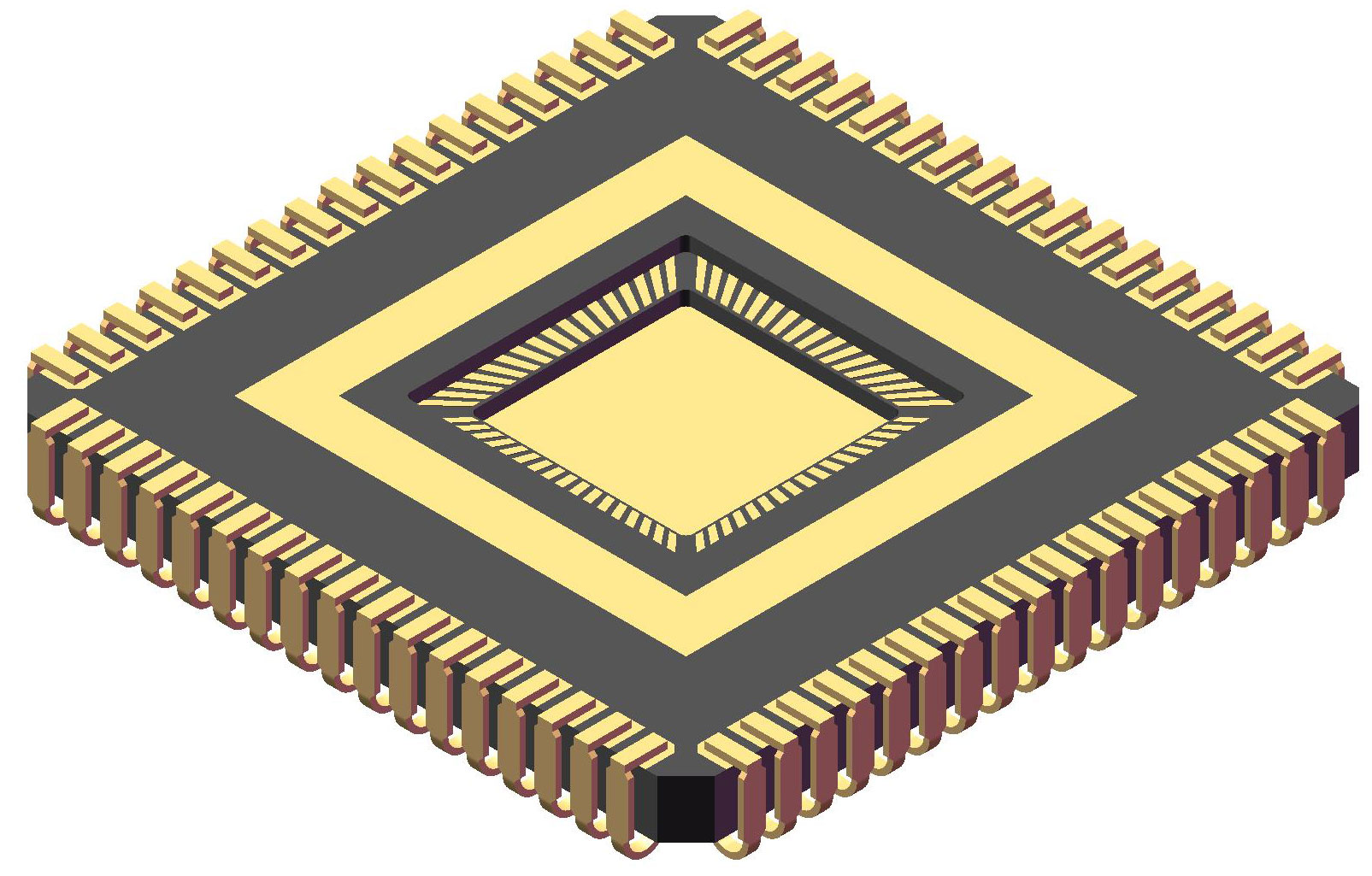

CLCC68J50-N CLCC68J50 CLCC68J50-DE Daisy Chain
84 50 Mil
1.27mm
1.15"
29.3mm
CLCC84J50-N300
Model
CLCC84J50 CLCC84J50-DE Daisy Chain Model


CLCC28 without lid. Option -N

CLCC44 without lid. Option -N

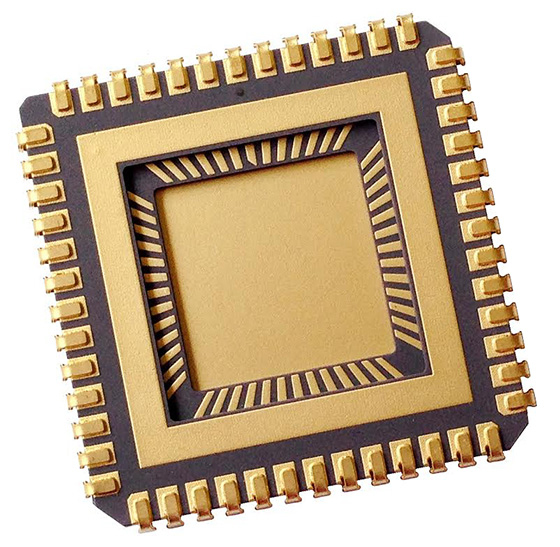

CLCC52 without lid. Option -N

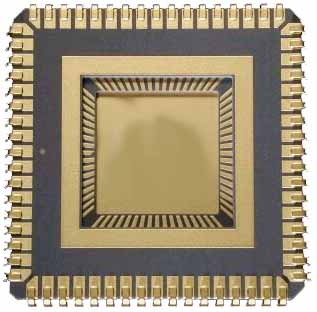

CLCC68 without lid. Option -N

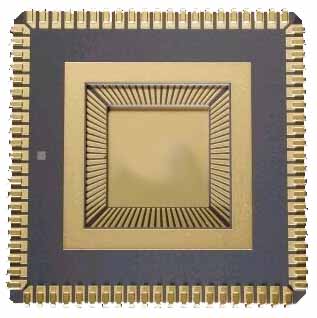

CLCC84 without lid. Option -N

Kovar leads. 60 micro inches Gold plating. 50 to 350 micro inches nickel.
For Solder Coated leads, add -SC to end of part number.

With Lid Attached Without Lid
Open Cavity
Gold Leads Solder Coated Leads All Leads Isolated
For SIR Testing
Daisy Chain
Blank -N Blank -SC -ISO -DE
Optional Features. Add Suffix Below to end of Part Number
