JEDEC Matrix
IC Trays
And Bare-Die Waffle Packs

PDF All Trays    Dimensions    Custom Tray

BGA Tray    QFP Tray    QFN Tray    TSOP Tray    PLCC Tray
2" Waffle Pack    4" Waffle Pack    Machined Chip Carrier

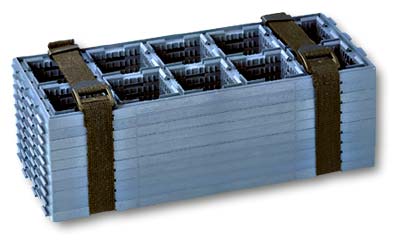

Colored Tray Clips    Tray Straps    Universal Tray Covers

Standard JEDEC Matrix IC Tray

Tray type	Size Range	JEDEC Reference	Click for Details
JEDEC Matrix Tray (316mm x 136mm)
BGA Tray	5mm ~ 52.5mm	CO-029	BGATRAY
QFN Tray	3mm ~ 10mm	-	QFNTRAY
QFP Tray	10mm ~ 40mm	CS-004	QTRAY
LQFP Tray	7mm ~ 28mm	CS-007	LQTRAY
TQFP Tray	5mm ~ 20mm	CS-007	TQTRAY
BQFP Tray	100L ~ 132L	CS-002	BQTRAY
PLCC Tray	32L ~ 84L	CO-016 CS-003	PLCCTRAY
TSOP Tray	Type I	CS-008	TTRAY
TSOP Tray	Type II	CS-005	T2TRAY

Waffle Tray for Bare Die
Tray Size	Size Range	-	Click for Details
2" Waffle	1mm ~ 21mm	-	WP2
4" Waffle	1mm ~ 66mm	-	WP4

Accessories
Description	Notes	-	Click for Details

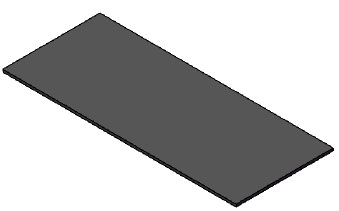

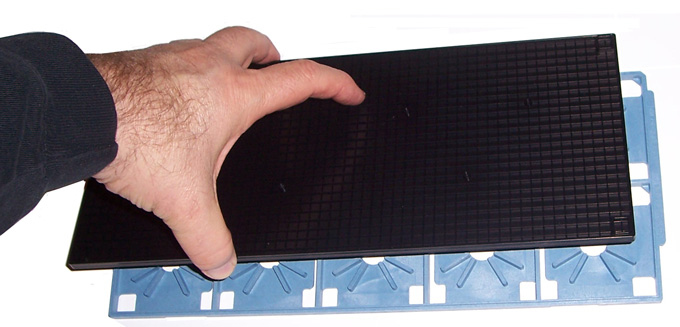

Universal Tray Cover	Cover plate snaps on top & bottom Fits all JEDEC trays Reuseable & Bakeable	-	COVERTRAY

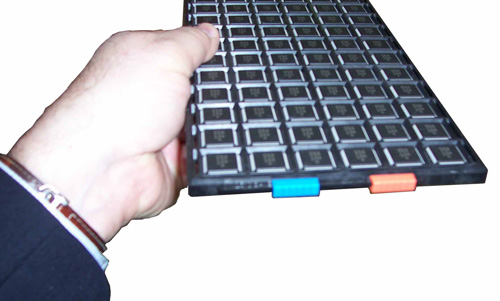

Colored Tray Clips	Snap On Reuseable & Bakeable Orange, Yellow Green, Blue	-	Tray Clip
