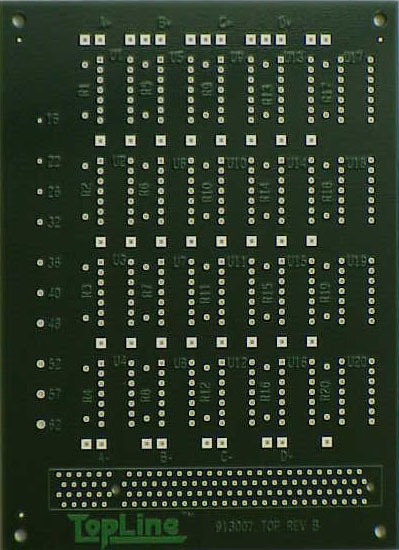

913xxx Series Kit

12L Multilayer Board
With Daisy Chain
Optional Heavy Ground Plane


Actual Size: 4" x 5.5" (100 x 140mm)

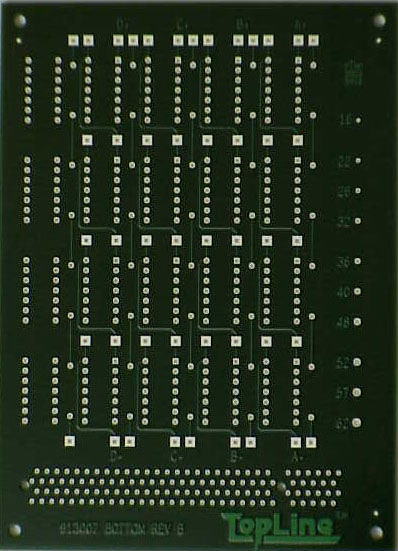

Bottom Side    Daisy Chain   Thermal Pads  Kits

Use this kit to challenge your throughhole Lead Free assembly. Comes with DIP14 Daisy Chain, zero ohm resistors and connector. 12 Layer Construction with wagon wheel heat dissipative internal pads and descending capillary throughhole test 16 to 62mil Diameter (0.4mm~1.6mm).

Features:

  • FR4 Tg=175oC
  • Thickness .098" (2.5mm)
  • 12 Layers
  • Tooling Holes
  • LPI Soldermask
  • 450 PTH
  • Test Points
  • Global Fiducials
  • Heavy Ground Plane Option



    • Component Per Assembly
     Board
    913004
    Rev-G
    Heavy Ground
     Board
    913002
     Board
    913007
     Board
    913008
     Board
    913009
    Board Finish   ENIG
    Immersion
    Gold    		 Sn100 Immersion
    Silver    		 OSP
    Entek 106    		 ENIG
    Immersion
    Gold
    DIP14
    With Daisy Chain    		 16 16 16 16 16 16
    DIP14
    Without Daisy Chain    		 4 4 4 4 4 4
    1/4W Resistor
    Zero Ohm    		 20 20 20 20 20 20
    Connector 120 pins
    4-Row .050" Pitch    		 1 1 1 1 1 1
    Capillary Holes
    16-62 mils    		 10 10 10 10 10 10
    Test Points Yes Yes Yes Yes Yes Yes

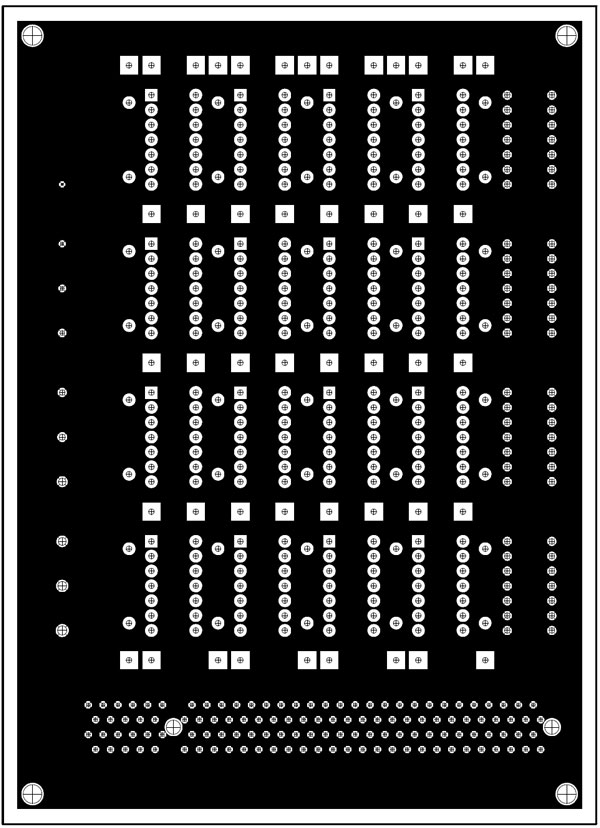

    Optional Heavy Ground Plane Version on 10x internal Layers
    Boards are available with 80% copper coverage on internal ground plane. Please specify "REV-G" version for heavy ground plane option on 10x Internal Layers. Equivalent to 183 square inches of copper.
