CBGA Kit
Ceramic Ball Grid Array

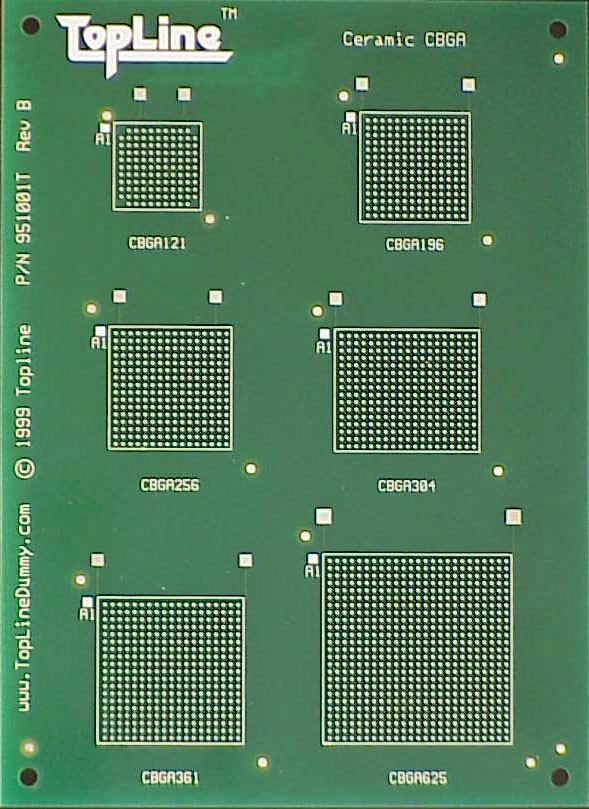

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)



TopLine CBGA Ceramic Ball Grid Array Kit. Top side has Daisy Chain and Test points for checking continuity after mounting to verify correct assembly with a simple ohm-meter. Customized versions available. Contact TopLine for CCGA Column Grid Array Kits.

Board Features:

  • Choice of Final finish:
        • ENIG (Ni/Au)Gold
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • Single-Layer Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)
    •
      BOM Kit Contents
    CBGA Kit Daisy Chain
    Ball Alloy Included in Kit
    Kit BOM
    Order #
    951000
    1 Kit
    Order #
    951300
    1 Kit
    Order #
    951400
    1 Kit
    Order #
    951700
    1 Kit
    Order #
    951900
    1 Kit
    Board
    Finish    		 HASL
    SnPb    		 HASL
    SnPb    		 ENIG
    GOLD    		 ENIG
    GOLD    		 ENIG
    GOLD
    CBGA121
    Size 15x15mm
    Pitch 1.27mm
    PCB Pad    		 Sn10/Pb90 Sn63/Pb37
    Sn62    		 Pb90/Sn10 Sn63
    Sn62    		 SAC305
    Lead Free
    CBGA196
    Size 18.5x18.5mm
    Pitch 1.27mm
    PCB Pad    		 Sn10/Pb90 - Sn10/Pb90 - SAC305
    Lead Free
    CBGA256
    Size 21x21mm
    Pitch 1.27mm
    PCB Pad    		 Sn10/Pb90 Sn63/Pb37
    Sn62    		 Sn10/Pb90 Sn63/Pb37
    Sn62    		 -
    CBGA304
    Size 21x25mm
    Pitch 1.27mm
    PCB Pad    		 - - - - -
    CBGA361
    Size 22x25mm
    Pitch 1.27mm
    PCB Pad    		 Sn10/Pb90 Sn63/Pb37
    Sn62    		 Sn10/Pb90 Sn63/Pb37
    Sn62    		 SAC305
    Lead Free
    CBGA625
    Size 32.5x232.5mm
    Pitch 1.27mm
    PCB Pad    		 Sn10/Pb90 - Sn10/Pb90 - SAC305
    Lead Free


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "951001b" CBGA kit
    Step 4. Download files


    Kit Order Number System
    951 0 # #
    Series Board Finish Quantity
    CBGA

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL SnPb
    4, 7, 9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    06 = 6 Kits
    10 = 10 Kits
    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 951001
    ENIG Gold (Ni/Au) RoHS 951009


    Spare Parts
    Full range of spare parts available
    RoHS Lead Free and Tin-Lead
    Contact TopLine to discuss your requirements
