HP Saber Alloy Test Kit

HP Saber Alloy Test Kit
4-Layer OSP SABER Board

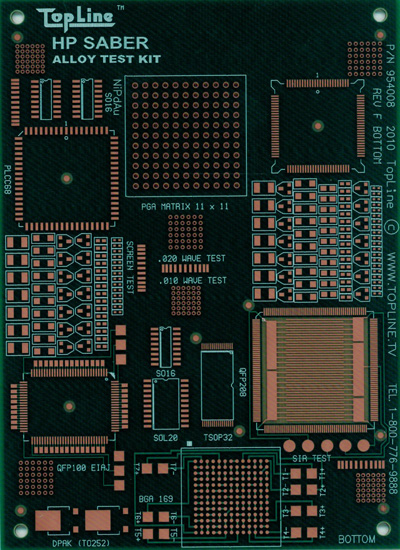

Enlarge: Bottom Side
Bottom Side 4"x5.5" (10x14cm)




The HP Saber Alloy Test Kit includes Saber PCA and HP required components for qualifying "new" paste alloys as well as the "control" (SAC 305 paste). The SABER PCA is a routed 4-Layer 1-up board. HP spec calls for components to be assembled to the bottom side of the board.

Board Features:

  • OSP - Entek 106HT
  • LPI Solder Mask - PSR4000 AUS5
  • Isola FR406 - FR4 Board Tg=170°C
  • Size - 4"x5.5" (10x14cm) .062" (1.6mm)
  • 4-Layer Board
  • Inner Layers Groundplane
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • SMEMA Fiducial Marks

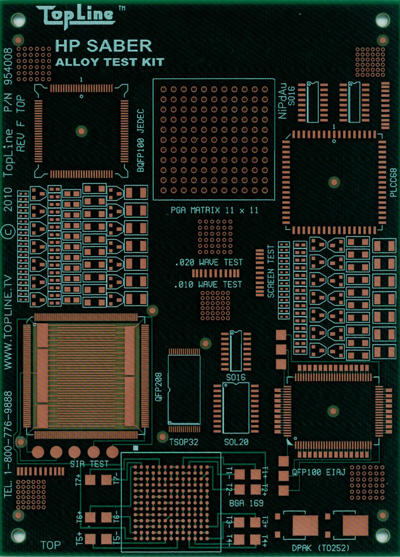

    Enlarge:  Top Side

    		•
      HP SABER Alloy Test Kits
    Additional Kit Quantities Available
    Kit BOM
    Required
    by HP    		 Components
    Per
    Board
    Order #
    954808
    32 Kits
    Order #
    954817
    68 Kits
    Order #
    954821
    84 Kits
    Order #
    954825
    100 Kits
    Order #
    954829
    116 Kits
    Order #
    954833
    132 Kits
    Order #
    954836
    144 Kits
    SABER Boards
    4-Layer    		   32 68 84 100 116 132 144
    QFP208 1 32 68 84 100 116 132 144
    TSOP32 1 32 68 84 100 116 132 144
    QFP100 1 32 68 84 100 116 132 144
    PLCC68 1 32 68 84 100 116 132 144
    SO16 - Sn 2 64 136 168 200 232 264 288
    SO16 - NiPdAu 1 32 68 84 100 116 132 144
    SOL20 1 32 68 84 100 116 132 144
    SOT23 28 896 1904 2352 2800 3248 3696 4032
    0402 Chip 34 1088 2312 2856 3400 3944 4032 4896
    0603 Chip 31 992 2108 2604 3100 3596 4092 4464
    0805 Chip 11 352 748 924 1100 1276 1452 1584
    1206 Chip 20 640 1360 1680 2000 2320 2640 2880
    1210 Chip 14 448 952 1176 1400 1624 1848 2016

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "954008f" HP Saber Alloy Test Kit.
    Step 4. Download files

    Kit Order Number System
    954 8 # #
    Board Type Board Finish
    954 = 4-Layer
    Saber Board
    4"x5.5"
    10x14cm    		 8 = OSP
    Entek 106HT    		 Code:
    08 = 32 Kits
    16 = 64 Kits
    17 = 68 Kits
    20 = 80 Kits
    21 = 84 Kits
    23 = 92 Kits
    25 = 100 Kits
    28 = 112 Kits
    31 = 124 Kits
    34 = 136 Kits
    36 = 144 Kits
    37 = 148 Kits
    40 = 160 Kits
    43 = 172 Kits
    46 = 184 Kits
    49 = 196 Kits
    Other quantites available.

    Spare Boards
    Board Description Quantity Order Number
    4-Layer Board
    4"x5.5"
    10x14cm    		 1 954008


    Back To Kits    Back To Products    TopLine Home
