BGA172 Pitch 1.0mm
With Daisy Chain Continuity Test


12-Layer BGA172 Board
20 Mouting Sites   •   Pitch 1.0mm

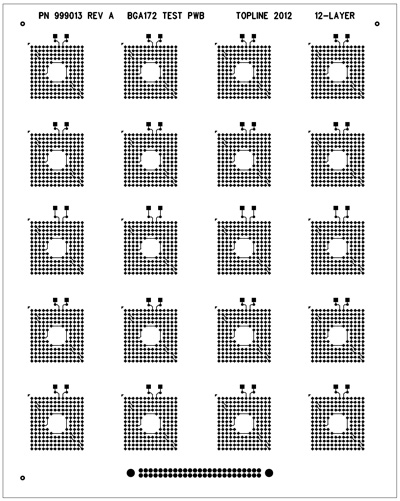

Enlarge: Top Side BGA172
Top Side BGA172
Board Size 4"x5" (10x12.5cm)
Click for Assembly Drawings



TopLine 999013 BGA172 12-Layer Daisy Chain Placement Board. Top side has pads for mounting 20 each BGA172 1.0 Pitch 15x15mm. The bottom side has tracings to connect the daisy chain pattern to a connector. The diamond shape outer layers plus 10-inner layers combine to make a .093-inch thick 12-layer copper heat sink, making this board challenging to asssemble. Test points allow continuity to verify correct assembly with a simple ohm-meter to check accurate placement of each BGA172.

Board Features:

  • Final finish: ENIG (Ni/Au)Gold
  • LPI Solder Mask - PSR4000BV AUS5
  • FR4 Tg=170°C Isola FR406
  • Size - 4"x5.0" (10x12.5cm)
  • Thickness 0.093" (2.4mm)
  • 12-Layer Board (Cu 1oz)
  • Cu Coverage: 10% Top, Inner 99%, Bottom 4%
  • RoHS Compliant
  • Tooling Holes - None
  • IPC Fiducials - 0.062" (1.57mm)

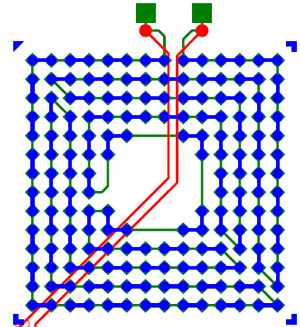

    Enlarge:  After Mounting BGA172 Deails

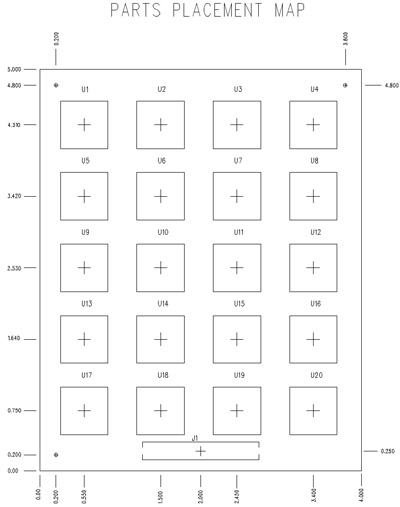

    Click for Placement Map

    		•

      BGA172 Daisy Chain Board
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    999013
    Board - ENIG
    Gold (Ni/Au)    		 RoHS Pb-Free 1

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "999013a" BGA172 Kit
    Step 4. Download files

    Board Order Number System
    999 013
    Series Design
    Application Specific BGA172 Board - 12L
    4"x5" (10x12.5cm)
    ENIG (Ni-Au)
    Other Variations Available

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    ENIG Gold (Ni/Au) RoHS 999013


    Spare Parts
    Ball Alloy Type Drawing
    Sn63/Pb37 Non RoHS BGA172T1.0-DC143D
    SAC305 RoHS BGA172T1.0C-DC143D
    Sn RoHS Samtec Connector
    TFM-125-03-S-D
    Sn RoHS Samtec Mating Cable
    SFSD-25-30-G-XX.XX-SR
    XX.XX=Cable Length in Inches
    Per Customer Requirement
