Acrylic BGA Boards

Be sure to see additional boards:
CBGA Boards   µBGA Boards   BGA + Components   Flip Chip Boards   BGA Boards

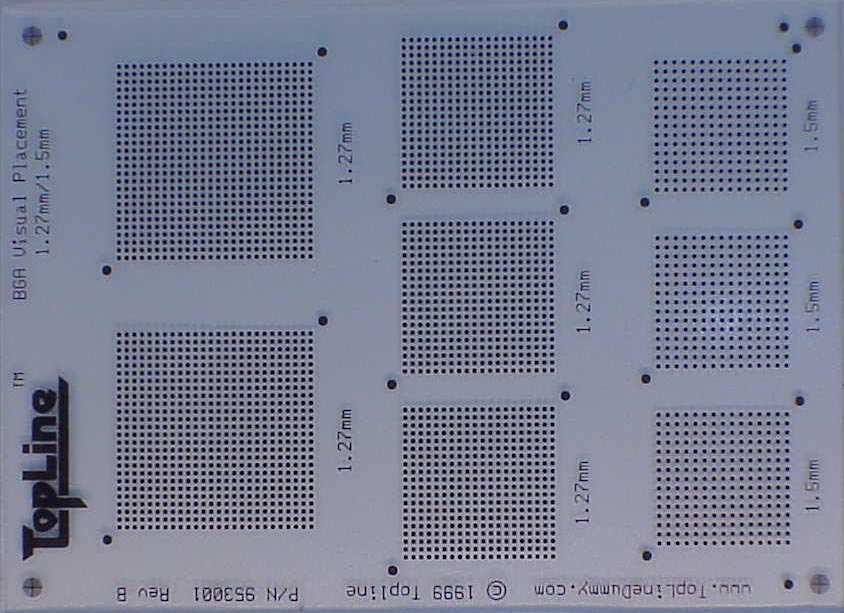

#953001
Universal
Acrylic BGA
1.27mm/1.5mm
For Inspection
and placement

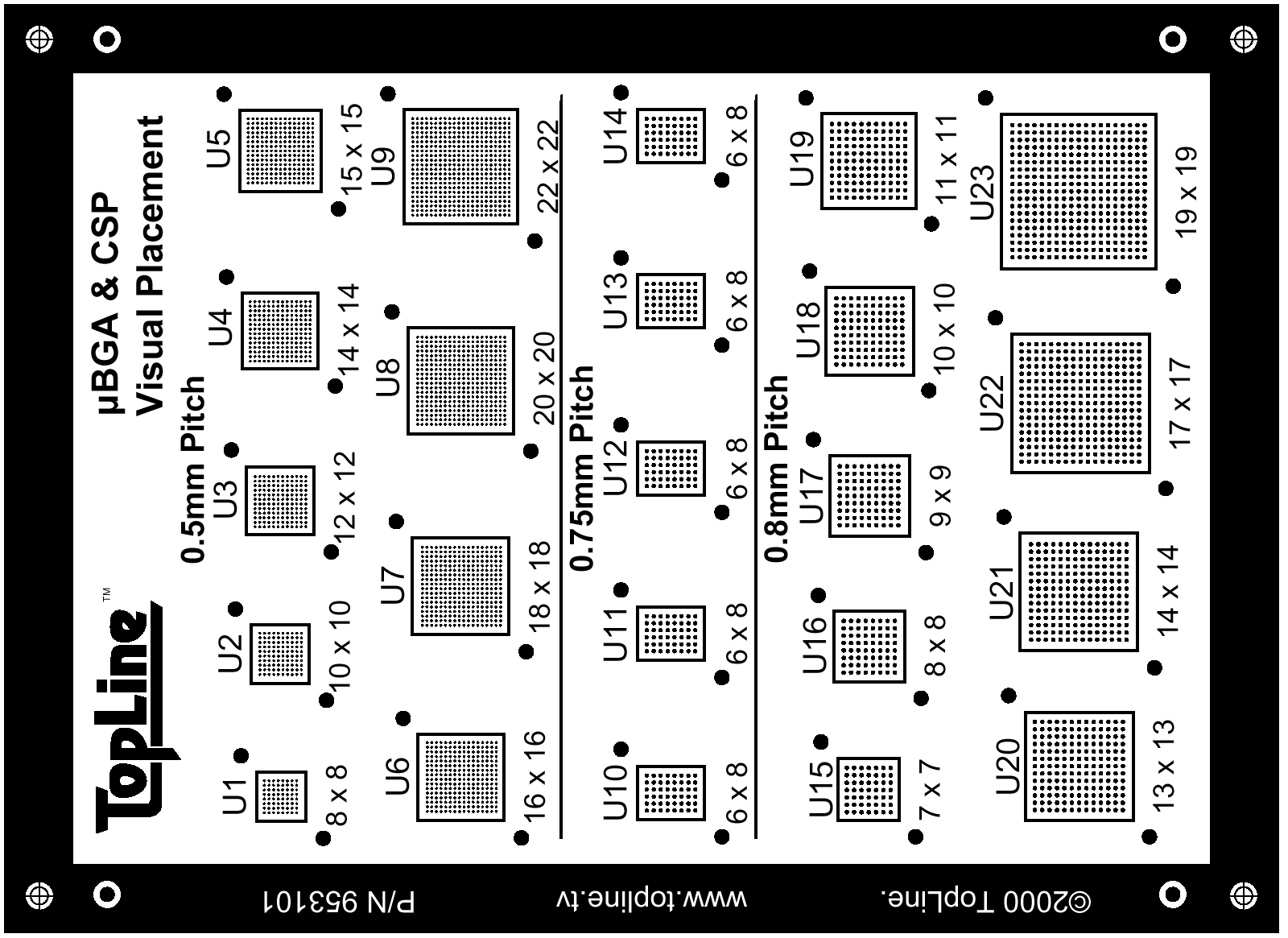

#953101
Universal
µBGA and CSP
0.5mm, 0.75mm, 0.8mm
For Inspection
and placement

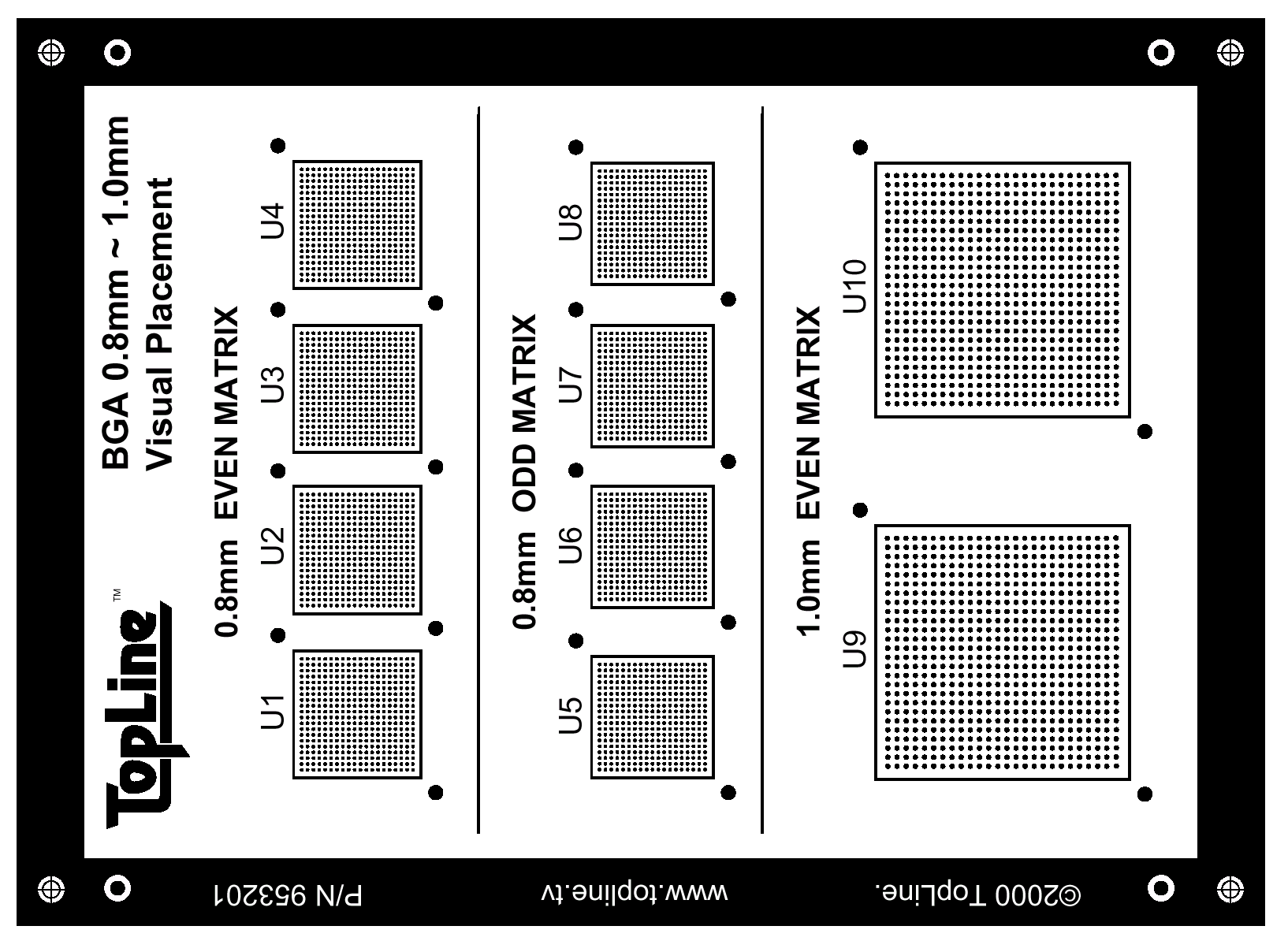

#953201
Universal
Acyric BGA
0.8mm - 1.0mm
For Inspection
and placement

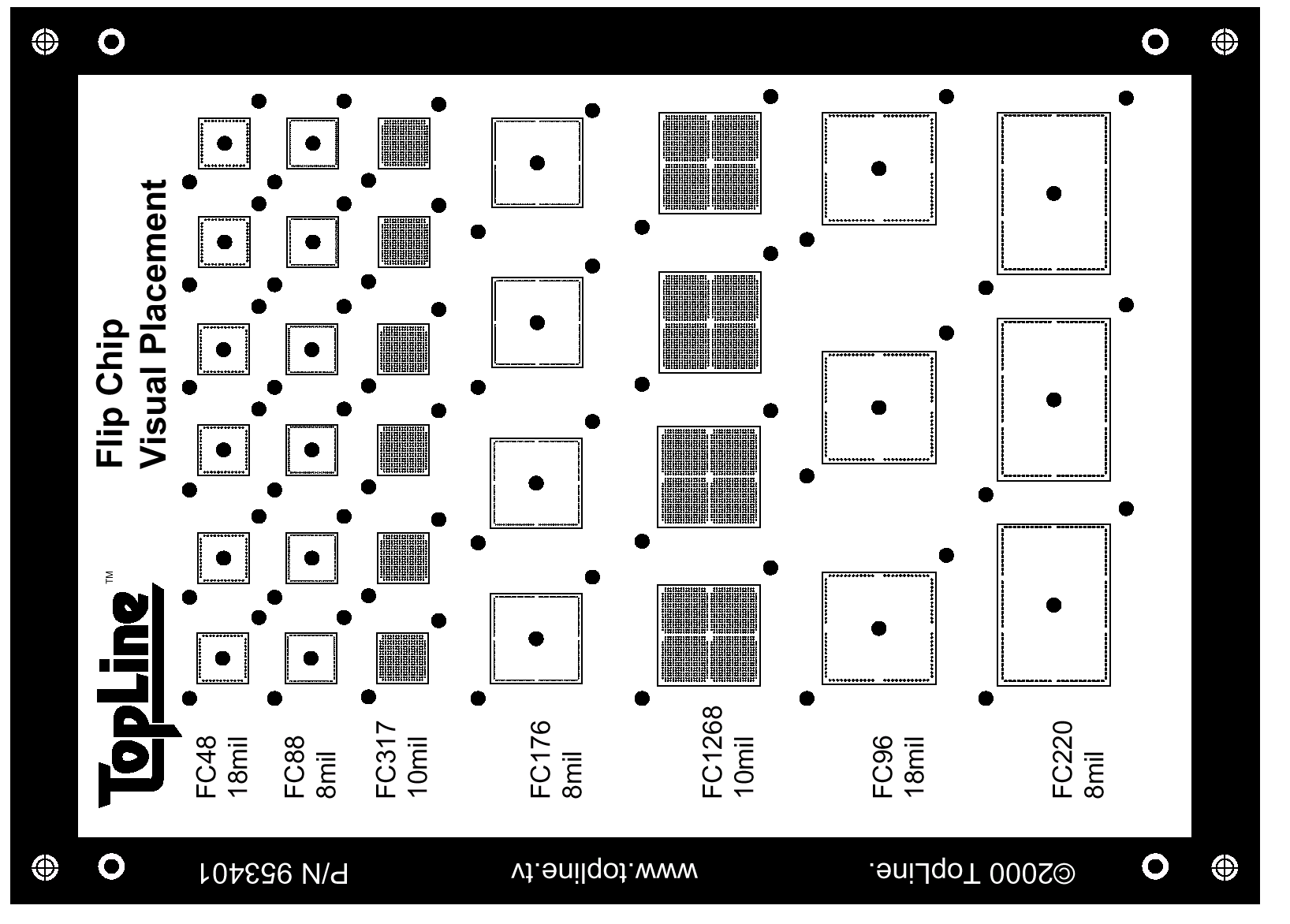

#953401
Universal
Flip Chip
8 to 18mils
204, 254, 457µm
For Inspection
and placement

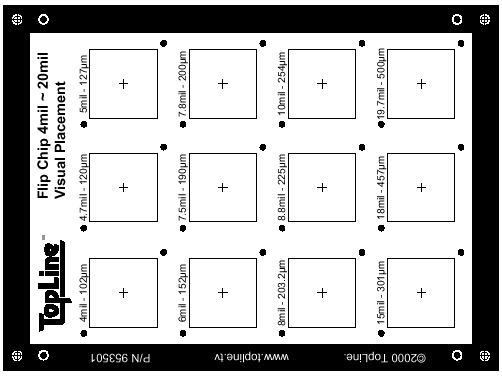

#953501
Universal
Flip Chip
4 to 20mils
102,120,150,190µm
200,204,225,254µm
381,457,500µm
For Inspection
and placement
