µBGA PC Boards

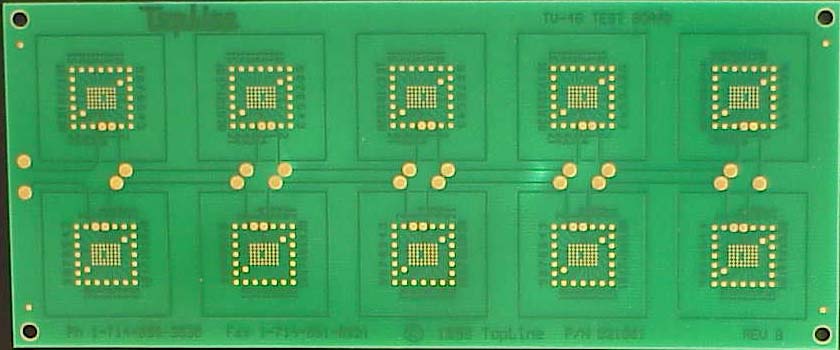

#921001
µBGA46
0.75mm Pitch

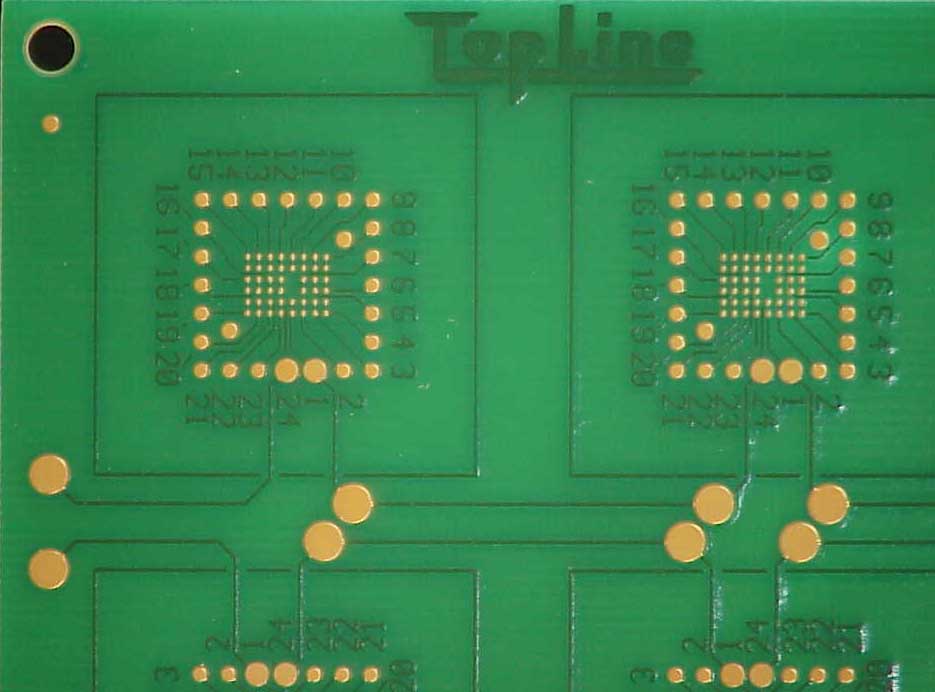

Site Detail

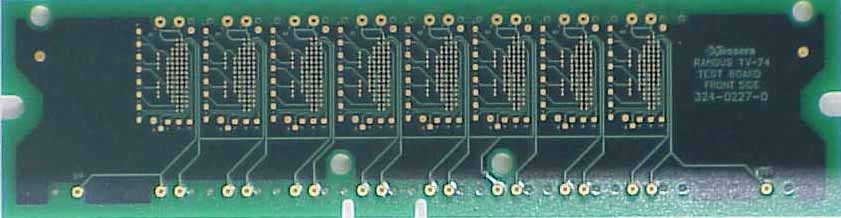

#922001
µBGA74
0.75mm Pitch
Asymetric
Site Detail

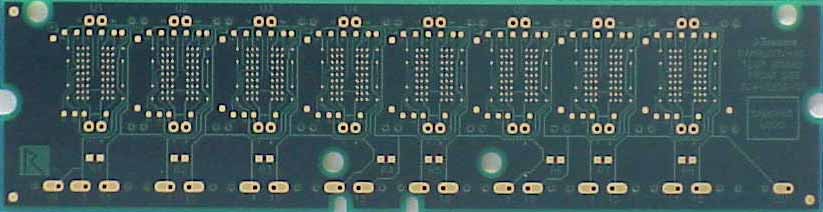

#932001
µBGA62
0.8mm/1.0mm Pitch
Asymetric

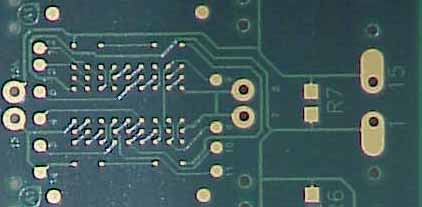

Site Detail

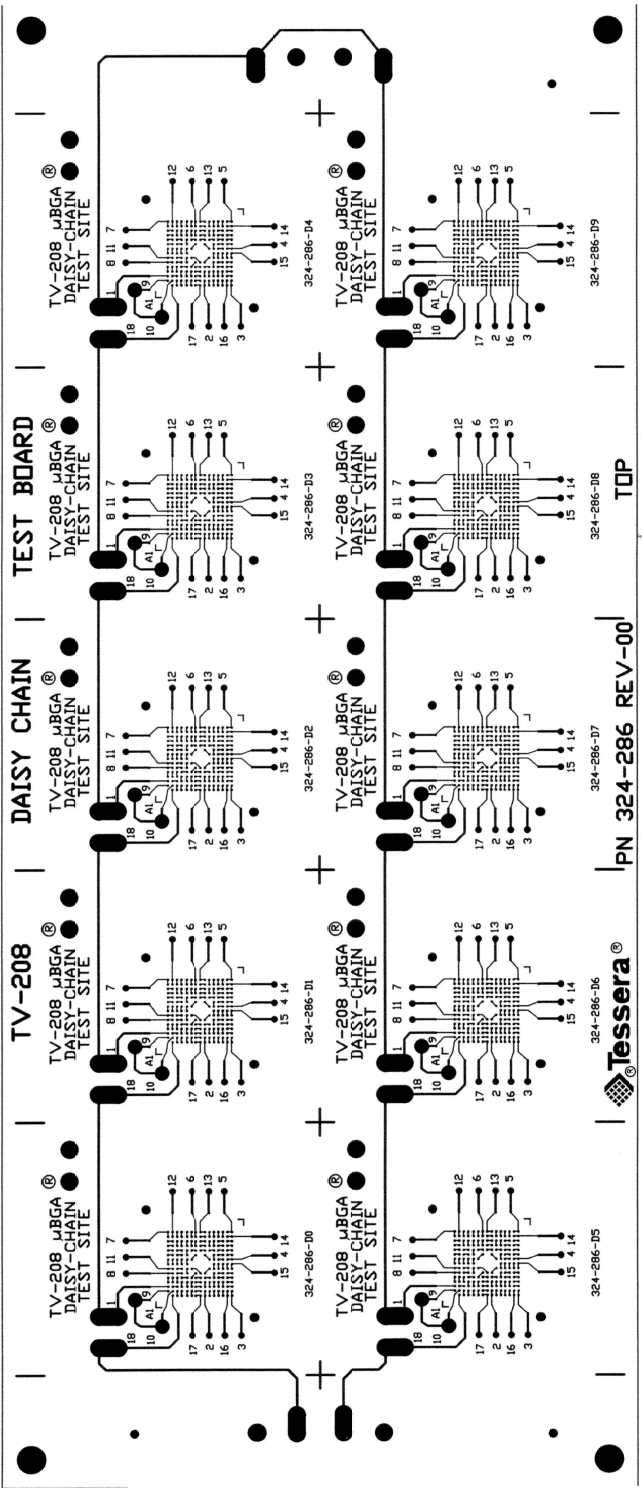

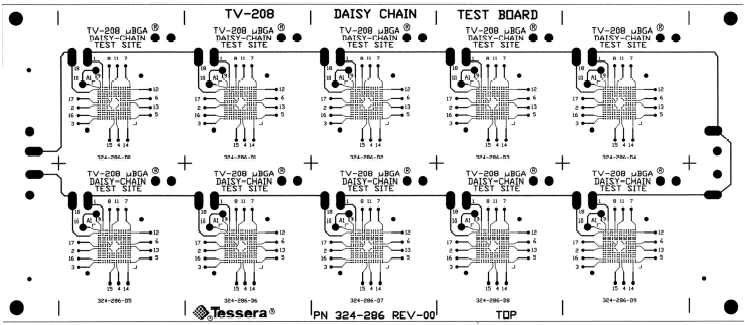

#934001
µBGA208
0.5mm Pitch

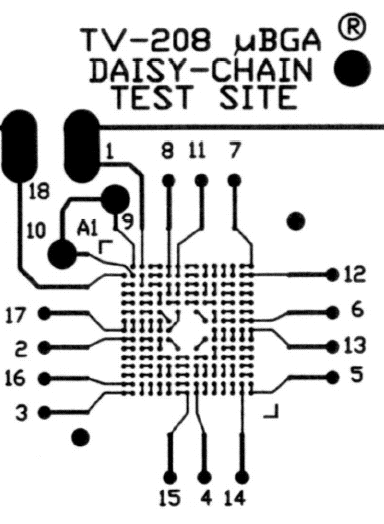

Site Detail

Be sure to see additional boards:
CBGA Boards   BGA Boards   BGA + Components
Flip Chip Boards   Acrylic Placement Boards
