Machined Chip Carriers
For Odd Size 3D Devices
Protect valued parts


 More Chip Carriers    ChipVault Custom Carrier    ChipUV UV Tape Carrier   Nitto Tape Specs  Home


ChipNTTM blue dicing tape locks odd size 3D die in a protective cocoon. Permanently engraved with a unique registered serial number for counterfeit protection. Full access for visual inspection. Grip die from sides for fast pick and place. Ultimate protection for odd size 3D chips.

Select the features you need:
  • Customized to protect your device.
  • Precision machined from aluminum stock
  • 2-inch or 4-inch sizes.
  • Adhesion: Blue Non-UV dicing tape
  • Release mechanism: Extraction Key.
  • Serialized System: Engraved registered serial number reduces counterfeits.
  • Materials: Aluminum or plastic.
  • Quick Turn
    		•




    Protect Valued Parts
    About: Universal Design.     •     Non-UV Tape safely locks odd size 3D chips

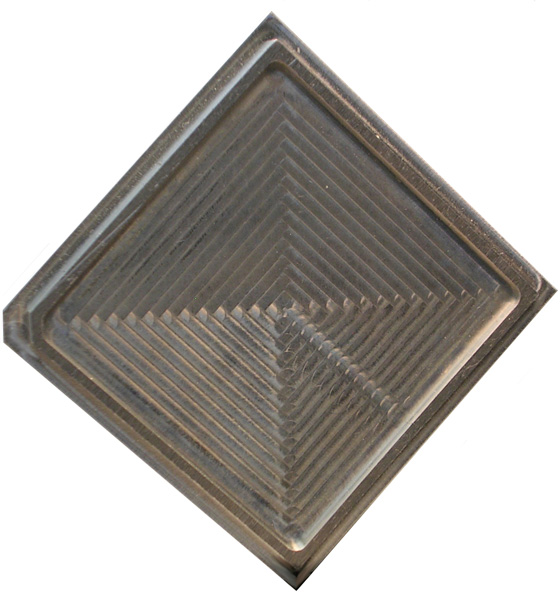

    Description Universal base.
    Shown Aluminum    		 Universal frame.

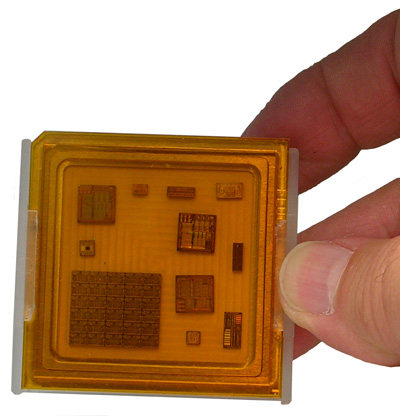

    Blue dicing Non-UV tape locks die in place.    		 Shown with Amber Cover
    Ready to transport
    with confidence
    Quick
    View
    2-inch and 4-inch


    ChipNTTM   Part Series and Description
    Size Part Series Description Chip Size
    Max.    		 Die Height
    Max.
    2-Inch B2B
    F2B-Nx
    C2M
    L2B1    		 Base
    Frame
    Cover
    Clip    		 37x37mm
    (1.48"SQ)    		 2.0mm
    0.078"
    4-Inch B4B
    F4B-Nx
    C4M
    L4B2    		 Base
    Frame
    Cover
    Clip    		 75x75mm
    (3.0"SQ)    		 3.6mm
    0.145"
    Part Number Suffix -x    Tape adhesion. 1=Low, 2=Medium, 3=High
    Material: Aluminum, stainless or Plastic.


    Base Part Numbering System
        B         2         B
    Base Size Color
    B = Base 2 = 2-inch
    4 = 4-inch    		 B = Black
    A= Aluminum



    Frame Part Numbering System
        F         2         B     -        N1
    Frame Size Color Non-UV Tape Spec
    F = Frame 2 = 2-inch
    4 = 4-inch    		 B = Black
    A= Aluminum
    S= Stainless    		 Adhesion Stength
    1=Low
    2=Medium
    3=High

    Blank= Without Tape



    Cover Part Numbering System
        C         2         M
    Cover Size Color
    C = Cover 2 = 2-inch
    4 = 4-inch    		 B = Black (Opaque)
    M = Amber (Translucent)



    Clip Part Numbering System
        L         2         B         1
    Clip Size Color Required Clips
    L = Clip 2 = 2-inch
    4 = 4-inch    		 B = Black
    N=Natural    		 2-inch:
    1 = 1-Base + 1-Cover
    2 = 1-Base + 1-Cover

    4-Inch:
    2 = 1-Base + 1-Cover




    Available from:
    TopLine
    95 Highway 22 W.
    Milledgeville, GA 31061, USA
    Tel: 1-800-776-9888
    email to Info@TopLine.tv
