Machined Chip Carriers
For Odd Size 3D Devices
Protect valued parts


 More Chip Carriers    ChipUltra UV Tape Carrier    ChipNT Blue Tape Carrier    Home


ChipVaultTM custom machined chip carrier seals odd size 3D die in a protective cocoon. Permanently engraved with a unique registered serial number for counterfeit protection. Full access for visual inspection. Grip die from sides for fast pick and place. Ultimate protection for odd size 3D chips.

Select the features you need:
  • Customized to protect your device.
  • Precision machined.
  • 2-inch or 4-inch sizes.
  • Lock/Release mechanism: Clamps device with zero insertion force.
  • Serialized System: Engraved registered serial number reduces counterfeits.
  • Material: Aluminum or Plastic.
  • Quick Turn
    		•




    Protect Valued Parts
    About: Custom machined.     •     Safely locks odd size 3D chips

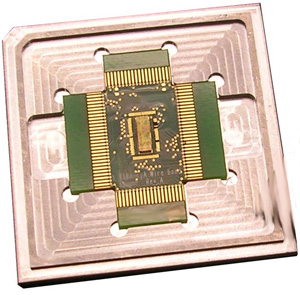

    Description Precision machined base. Example of

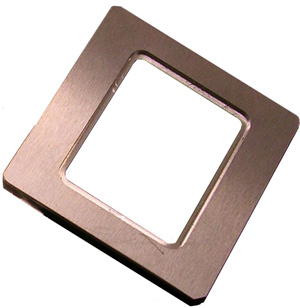

    Odd size 3D device.    		 Precision machined frame.

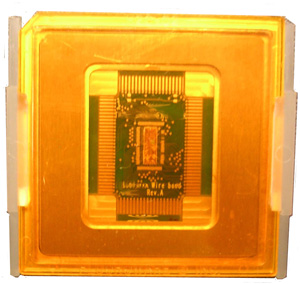

    Locks device into base.    		 Shown with Amber Cover
    Ready to transport
    with confidence
    Quick
    View
    2-inch or 4-inch


    ChipVaultTM   Part Series and Description
    Size Part Series Description Chip Size
    Max.    		 Die Height
    Max.
    2-Inch B2A-xxxxxx
    F2A-xxxxxx
    C2M
    L2B1    		 Base
    Frame
    Cover
    Clip    		 43x43mm
    (1.7"SQ)    		 2.0mm
    0.078"
    4-Inch B4A-xxxxxx
    F4A-xxxxxx
    C4M
    L4B2    		 Base
    Frame
    Cover
    Clip    		 86x86mm
    (3.4"SQ)    		 4.0mm
    0.157"
    Part Number Suffix -xxxxxx    Six-digit drawing number will be assigned to your custom chip carrier.
    Material:Aluminum or Plastic


    Base Part Numbering System
        B         2         B     -        123456
    Base Size Color Drawing Nr.
    B = Base 2 = 2-inch
    4 = 4-inch    		 B = Black
    A= Aluminum    		 Customer Specific
    6-Digit Drawing Nbr



    Frame Part Numbering System
        F         2         A     -        123456
    Frame Size Color Drawing Nr
    F = Frame 2 = 2-inch
    4 = 4-inch    		 B = Black
    A= Aluminum
    S=Stainless    		 Customer specific
    6-Digit Drawing Nbr



    Cover Part Numbering System
        C         2         M
    Cover Size Color
    C = Cover 2 = 2-inch
    4 = 4-inch    		 B = Black (Opaque)
    M = Amber (Translucent)
    C= Clear



    Clip Part Numbering System
        L         2         B         1
    Clip Size Color Clips Required
    L = Clip 2 = 2-inch
    4 = 4-inch    		 B = Black
    N=Natural    		 2-inch:
    1 = 1-Base + 1-Cover
    2 = 1-Base + 1-Cover

    4-inch:
    2 = 1-Base + 1-Cover




    Available from:
    TopLine
    95 Highway 22 W.
    Milledgeville, GA 31061, USA
    Tel: 1-800-776-9888
    email to Info@TopLine.tv
