Chip Carriers
For Odd Size 3D Devices
Protect valued parts


 More Chip Carriers    ChipVault Carrier    ChipNT Blue Tape Carrier    Home


ChipUVTM universal UV Tape chip carrier locks odd size 3D die in a protective cocoon. Permanently engraved with a unique registered serial number for counterfeit protection. Full access for visual inspection. Grip die from sides for fast pick and place. Ultimate protection for odd size 3D chips.

Select the features you need:
  • Protect odd size devices.
  • 2-inch or 4-inch sizes.
  • Adhesion: UV Tape
  • Release: Exposure to UV Light
  • Serialized System: Engraved registered serial number reduces counterfeits.
  • Material: Plastic or aluminum.
    		•




    Protect Valued Parts
    About: Universal Design.     •     UV Tape safely locks odd size 3D chips
    Description Universal base.
    Shown as Aluminum    		 Universal frame.

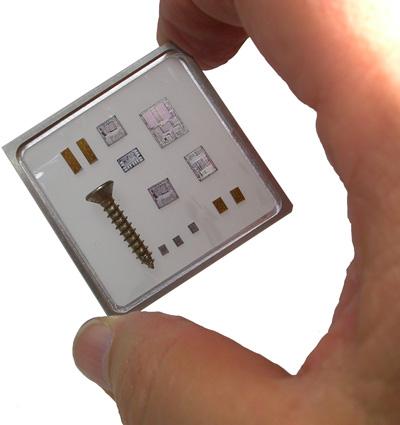

    UV Tape locks die in place.    		 Shown with Amber Cover
    Ready to transport
    with confidence
    Quick
    View
    Sizes: 2-inch or 4-inch


    ChipUVTM   Part Series and Description
    Size Part Series Description Chip Size
    Max.    		 Die Height
    Max.
    2-Inch B2B
    F2B-Ux
    C2M
    L2B1    		 Base
    Frame
    Cover
    Clip    		 37x37mm
    (1.48"SQ)    		 1.57mm
    0.060"
    4-Inch B4B
    F4B-Ux
    C4M
    L4B2    		 Base
    Frame
    Cover
    Clip    		 75x75mm
    (3.0"SQ)    		 3.6mm
    0.145"
    Part Number Suffix -x    UV tape adhesion strength: 1=Low, 2=Medium, 3= High
    Material: Aluminum or plastic


    Base Part Numbering System
        B         2         B
    Base Size Color
    B = Base 2 = 2-inch
    4 = 4-inch    		 B = Black
    A= Aluminum



    Frame Part Numbering System
        F         2         B     -        U1
    Frame Size Color UV Tape Spec
    F = Frame 2 = 2-inch
    4 = 4-inch    		 B = Black
    S= Stainless
    A= Aluminum    		 Adhesion Strength
    1=Low
    2=Medium
    3=High

    Blank=No Tape



    Cover Part Numbering System
        C         2         M
    Cover Size Color
    C = Cover 2 = 2-inch
    4 = 4-inch    		 B = Black
    M = Amber (Translucent)
    C= Clear



    Clip Part Numbering System
        L         2         B         1
    Clip Size Color Trays in Stack
    L = Clip 2 = 2-inch
    4 = 4-inch    		 B = Black
    N = Natural    		 2-inch
    1 = 1-Base + 1-Cover
    2 = 1-Base + 1-Cover

    4-Inch
    2 = 1-Base + 1-Cover




    Available from:
    TopLine
    95 Highway 22 W.
    Milledgeville, GA 31061, USA
    Tel: 1-800-776-9888
    email to Info@TopLine.tv
