Chip Shooter Kit
Daisy Chain 0402 and 0603 Chips

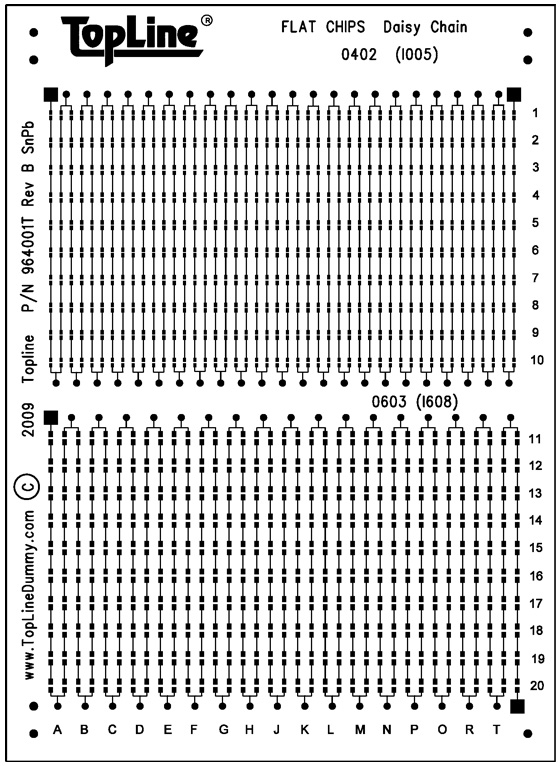

Rev B with Daisy Chain  •  Enlarge View
Actual Size: 4" x 5.5" (100 x 140mm)

     TopLine has thousands of 0402 and 0603 resistors for your machine to place. 0402 chips are supplied on tape with 2mm pitch and the 0603 chips with 4mm pitch tape.

Double sided board has 460 pads for 0402 chips and 350 pads for 0603 chips per side. 1600 pads total.
This kit can be used for placement, soldering or epoxy dispenser testing.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

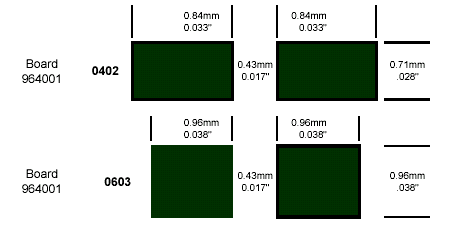

    Click Pad dimensions.

    New Rev B With Daisy Chain

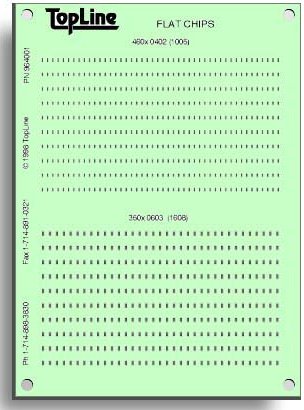

    Old Rev A Without Daisy Chain

    •   Manual
    Assembly    		 Machine Run
    Component
    Order #
    964000
    1 Kit
    Order #
    964003
    3 Kits
    Order #
    964010
    10 Kits
    Order #
    964025
    25 Kits
    Order #
    964050
    50 Kits
    Board 1 3 10 25 50
    0402 Chips 1,000 5,000 10,000 15,000 20,000
    0603 Chips 1,000 5,000 10,000 15,000 20,000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 964004
    Solder Paste Artwork, Gerber File, Order Number 964005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 964001 Rev B (New)
    Daisy Chain
    PC Board Only 1 964001 Rev A (Old)
    Without Diasy Chain
