FP20F50R.30x.50B
Flat Pack FP 20L
TopLine Dummy Component
For training, practice and evaluation

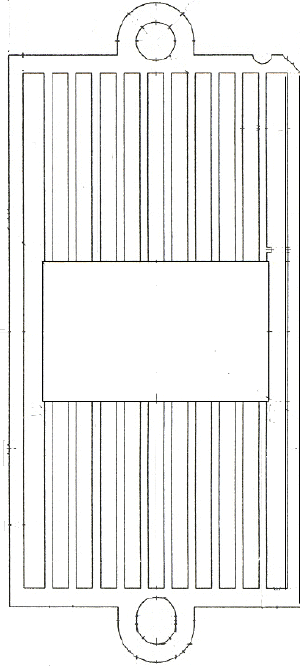

Click for Outline Drawing

Quick Specs:
Pin Count 20L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.30" x .50" (7.6x12.7mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP20F50R.30x.50B = Gold Leads. With Lid
FP20F50R.30x.50B-SC = Solder Dip. With Lid
FP20F50R.30x.50B-N = Gold Leads. Without Lid
FP20F50R.30x.50B-DE = Daisy Chain. Gold Leads
FP20F50R.30x.50B-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 20 F 50 R .30x.50 B - DE
Series Nbr Pins Lead
Shape
Pitch
Mils
Body
Shape
Body Size
Inch
Braze - Options
Flat Pack
Dual Sides
20 = 20 Leads Flat Leads
With Tie-bar
Bulk Packed
in tray
50 Mils
0.050-inch
1.27mm
Rectangular 0.30"x.50"
7.6x12.7mm
Bottom   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE
