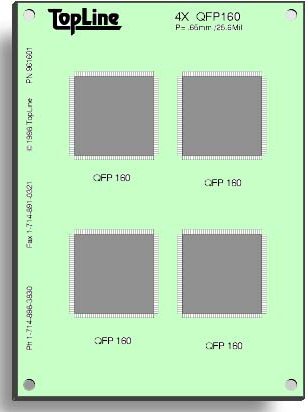

QFP160 Kit
0.65mm Pitch


Actual Size: 4" x 5.5" (100 x 140mm)

    You get QFP 160 Quad Flat Packs and PC Boards. Cost is just pennies per solder joint. Ideal for learning how to handle 0.65mm fine pitch devices. Components are provided on tape and reel.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks


    Click here to download our Kits catalog in PDF format.

    •   Manual
    Assembly    		 Machine Run
    Component Pitch
    Order #
    961600
    1 Kit
    Order #
    961606
    6 Kits
    Order #
    961612
    12 Kits
    Order #
    961625
    25 Kits
    Order #
    961650
    50 Kits
    Board   1 6 12 25 50
    QFP160 0.65mm 3 25 50 100 200

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 961604
    Solder Paste Artwork, Gerber File, Order Number 961605
    Solder Paste Stencil, Order Number 961609, Call for Details

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 961601
    QFP160 1 100820
    QFP160 25 229628
    QFP160 50 229626
