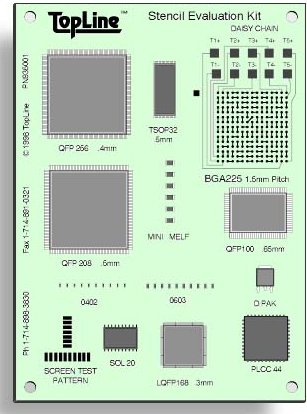

Stencil Evaluation Kit
936xxx Series With 0.4mm Pitch


Actual Size: 4" x 5.5" (100 x 140mm)


   We supply the board and components. You provide the stencil. All kits include a ball grid array with daisy chain test and 0.4mm pitch QFP256. Kit 936000 and 936010 are for hand assembly. Kits 936025, 936050 and 936100 are packaged for machine assembly.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Click here to download our Kits catalog in PDF format.

  •   Hand Assembly Machine Run
    Component Pitch
    Order #
    936000
    1 Kit

    Order #
    936010
    10 Kit

    Order #
    936025
    25 Kits

    Order #
    936050
    50 Kits

    Order #
    936100
    100 Kits
    Board   1 10 25 50 100
    LQFP168 0.3mm 0 0 0 0 0
    QFP256 0.4mm 1 10 24 48 96
    QFP208 0.5mm 1 10 24 48 96
    TSOP32 0.5mm 1 10 25 50 100
    QFP100 0.65mm 1 10 25 50 100
    BGA225 1.5mm 1 10 25 50 100
    PLCC44 50 mils 1 10 25 50 100
    SOL20 50 mils 1 10 25 50 100
    DPAK - 1 10 25 50 100
    0402 Chip - 10 100 250 500 1000
    0603 Chip - 10 100 250 500 1000
    mini MELF - 6 60 150 300 600

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Order Number 935004
    Solder Paste Artwork, Gerber File, Order Number 935005

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 935001
