TO99

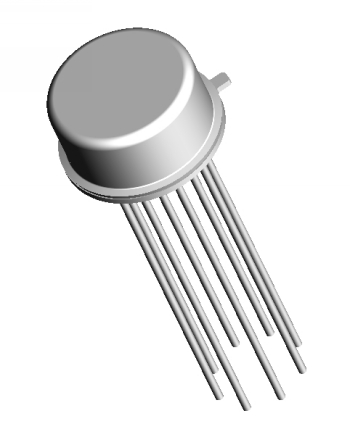

JEDEC TO-99 Package
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

Quick Specs:
Pin Count 8L
Pitch 0.20~0.23" (5.0~5.6mm) 45°
Body 0.325" Dia (8.2 mm)
Flange 0.370" Dia (9.4 mm)
Metal Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
TO99 = SnPb
TO99-GOLD = Au


Part Numbering System
TO99 - Option
Jedec Series - Plating
Metal Case - Blank = SnPb
GOLD = Au
Options: open Headers and cans available for packaging live die.
State your die size requirement.
