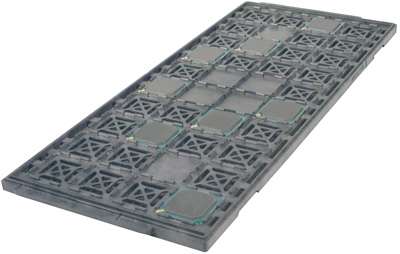

BGA Tray JEDEC Matrix IC Trays   ePAK BGA IC Matrix Trays Conform to JEDEC Standards.   Huge selection of ePAK BGA Trays Small quantity orders welcome. BGA Body Size Quantity Pockets Per Tray Matrix Row-Column ePAK Reference Order TopLine Tray Part Number Square BGA 5 x 5mm 576 16 x 36 eTR0631 BGATRAY5mm-16x36 5 x 5mm 624 16 x 39 - BGATRAY5mm-16x39 5 x 5mm 640 16 x 40 eTR0205 BGATRAY5mm-16x40 6 x 6mm 360 12 x 30 - BGATRAY6mm-12x30 6 x 6mm 429 13 x 33 eTR0251 eTR0851 eTR0883 BGATRAY6mm-13x33 7 x 7mm 416 13 x 32 CO-029AA BGATRAY7mm-13x32 7 x 7mm 476 14 x 34 - BGATRAY7mm-14x34 8 x 8mm 348 12 x 29 CO-029AAB BGATRAY8mm-12x29 8 x 8mm 360 12 x 30 - BGATRAY8mm-12x30 9 x 9mm 250 10 x 25 - BGATRAY9mm-10x25 9 x 9mm 260 10 x 26 CO-029AB BGATRAY9mm-10x26 10 x 10mm 184 8 x 23 - BGATRAY10mm-8x23 10 x 10mm 240 10 x 24 CO-029AY BGATRAY10mm-10x24 10 x 10mm 250 10 x 25 - BGATRAY10mm-10x25 11 x 11mm 176 8 x 22 CO-029AC BGATRAY11mm-8x22 12 x 12mm 189 9 x 21 CO-029AZ BGATRAY12mm-9x21 12 x 12mm 198 9 x 22 - BGATRAY12mm-9x22 13 x 13mm 160 8 x 20 CO-029AD BGATRAY13mm-8x20 14 x 14mm 152 8 x 19 CO-029AAC BGATRAY14mm-8x19 14 x 14mm 119 7 x 17 - BGATRAY14mm-7x17 15 x 15mm 126 7 x 18 CO-029AE BGATRAY15mm-7x18 16 x 16mm 119 7 x 17 - BGATRAY16mm-7x17 17 x 17mm 90 6 x 15 CO-029AF BGATRAY17mm-6x15 18 x 18mm 84 6 x 14 CO-029AG(2) BGATRAY18mm-6x14 19 x 19mm 84 6 x 14 CO-029AG BGATRAY19mm-6x14 21 x 21mm 60 5 x 12 CO-029AH BGATRAY21mm-5x12 23 x 23mm 60 5 x 12 CO-029AJ BGATRAY23mm-5x12 25 x 25mm 44 4 x 11 CO-029AK BGATRAY25mm-4x11 27 x 27mm 40 4 x 10 CO-029AL BGATRAY27mm-4x10 29 x 29mm 36 4 x 9 CO-029AM BGATRAY29mm-4x9 31 x 31mm 27 3 x 9 CO-029AN BGATRAY31mm-3x9 32.5 x 32.5mm 24 3 x 8 CO-028AE BGATRAY32.5mm-3x8 33 x 33mm 24 3 x 8 CO-029AP BGATRAY33mm-3x8 35 x 35mm 24 3 x 8 CO-029AR BGATRAY35mm-3x8 37.5 x 37.5mm 21 3 x 7 CO-029AS BGATRAY37.5mm-3x7 40 x 40mm 21 3 x 7 CO-029AT BGATRAY40mm-3x7 42.5 x 42.5mm 12 2 x 6 CO-029AU BGATRAY42.5mm-2x6 45 x 45mm 12 2 x 6 CO-029AV BGATRAY45mm-2x6 47.5 x 47.5mm 12 2 x 6 CO-029AW BGATRAY47.5mm-2x6 50 x 50mm 10 2 x 5 CO-029AX BGATRAY45mm-2x6 52.5 x 52.5mm 10 2 x 5 - BGATRAY52.5mm-2x5   BGA Body Size Quantity Pockets Per Tray Matrix Row-Column JEDEC Reference Order TopLine Tray Part Number Rectangular BGA 6 x 7mm 160 10 x 16 - BGATRAY6x7mm-10x16 6 x 8mm 260 10 x 26 - BGATRAY6x8mm-10x26 7 x 9mm 325 13 x 25 - BGATRAY7x9mm-13x25 8 x 9mm 297 12 x 27 - BGATRAY8x9mm-12x27 8 x 9mm 336 12 x 28 - BGATRAY8x9mm-12x28 8 x 10mm 220 10 x 22 - BGATRAY8x10mm-10x22 8 x 13mm 240 12 x 20 - BGATRAY8x13mm-12x20 9 x 13mm 250 10 x 25 - BGATRAY9x13mm-10x25 9 x 13.3mm 112 8 x 14 - BGATRAY9x13.3mm-8x14 10 x 12.5mm 136 8 x 17 - BGATRAY10x12.5mm-8x17 11 x 13mm 160 8 x 20 - BGATRAY11x13mm-8x20 12 x 13mm 152 8 x 19 - BGATRAY12x13mm-8x19 12 x 14mm 112 8 x 14 - BGATRAY12x14mm-8x14 13 x 15mm 136 8 x 17 - BGATRAY13x15mm-8x17 14 x 22mm 84 7 x 12 CO-029BA BGATRAY14x22mm-7x12 14 x 22mm 84 6 x 14 - BGATRAY14x22mm-6x14 14 x 22mm 96 8 x 12 CO-029BE BGATRAY14x22mm-8x12 21 x 25mm 55 5 x 11 CO-029BC BGATRAY21x25mm-5x11     Features: Specify max temperature: 140°C or 150°C when ordering. Specify height of BGA component when ordering. Tray color is Black. All trays have ESD properties.   BGA Coordinates   Related Links: QFP Tray   QFN Tray   TSOP Tray   All Trays More ePAK products All Products    TopLine Home Harmonized Code HS 3923.10.0000   •   EAR-99 TopLine Corporation 95 Highway 22 W Milledgeville, GA 31061, USA Toll Free USA/Canada (800) 776-9888 International: 1-478-451-5000 Email: sales@topline.tv
