Flip Chips
With Daisy Chain

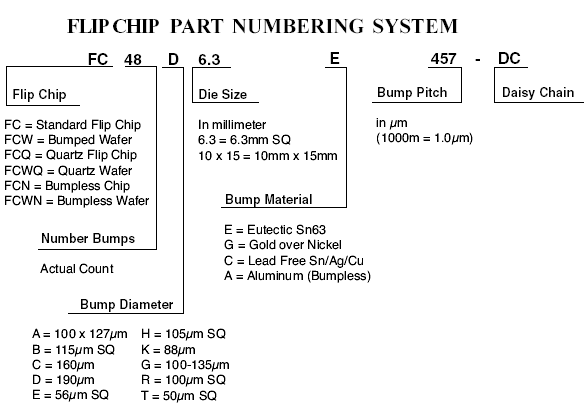

Useful Links:  Practice PC Boards     Part Number System     More Wire bondable Test Die      Quartz Die For Underfill Experiments

Example Full Array
With Daisy Chain

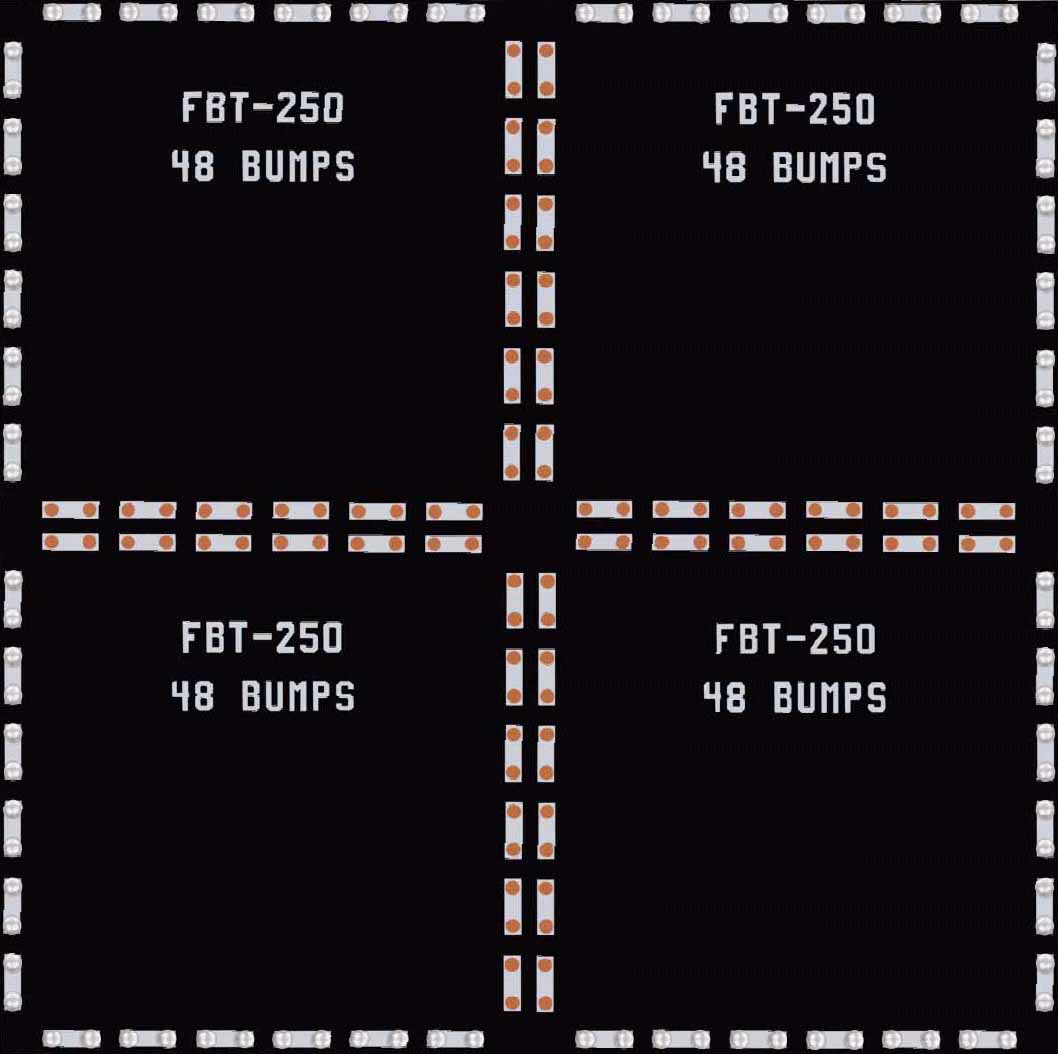

Example Perimeter
With Daisy Chain

Flip Chips with Daisy Chain (Eutectic and SAC Bumps)
Bumps Bump Matrix Pitch Die Size
(mm)
Bump
Height
UBM
øDia
Tray Qty Eutectic
Sn63/Pb37
Order Number
Lead Free
SAC - Sn/Ag/Cu
Order Number
Ref Quick View

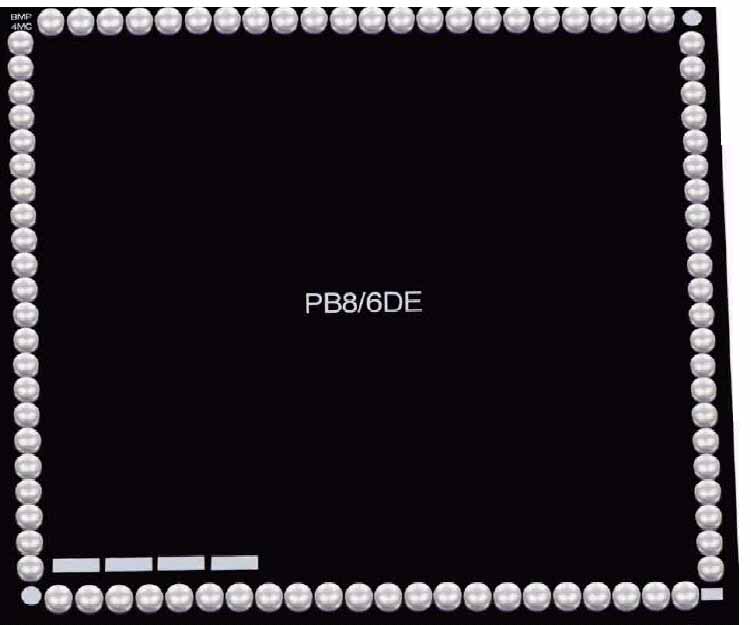

88 22x22
Perimeter
204µm 5.08mm 107µm ø102µm 36
Waffle 2"
FC88G5.08E204-DC FC88G5.08C204-DC PB08
112 28x28
Perimeter
152.5µm 5.08mm 85µm ø88µm 36pcs
Waffle 2"
FC112K5.08E152-DC FC112K5.08C152-DC PB06

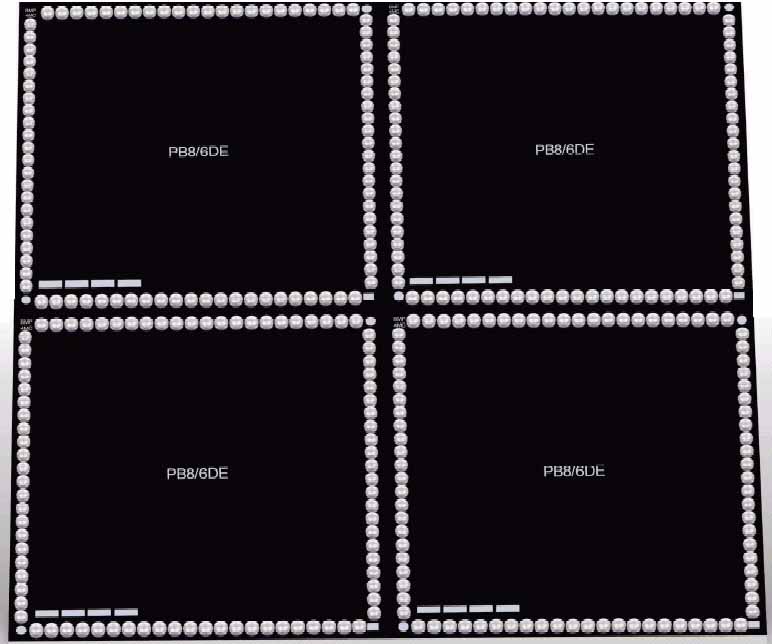

176 44x44
Perimeter
204µm 10.2mm 107µm ø102µm 49pcs
Waffle 4"
FC176G10E204-DC FC176G10C204-DC PB08
x4

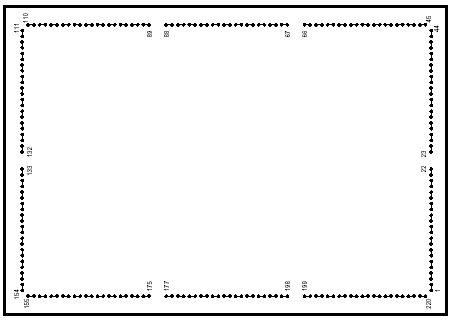

220 44x66
Perimeter
204µm 10mm x
15mm
107µm ø102µm 20pcs
Waffle 4"
FC220G10x15E204-DC FC220G10x15C204-DC PB08
x6

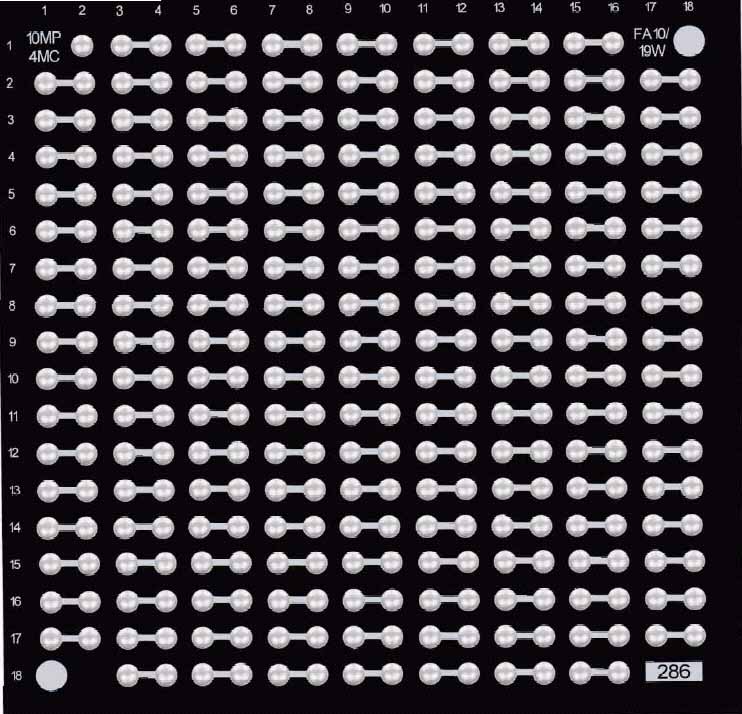

317 18x18
Full Array
254µm 5.08mm 125µm ø102µm 36pcs
Waffle 2"
FC317G5.08E254-DC FC317G5.08C254-DC FA10

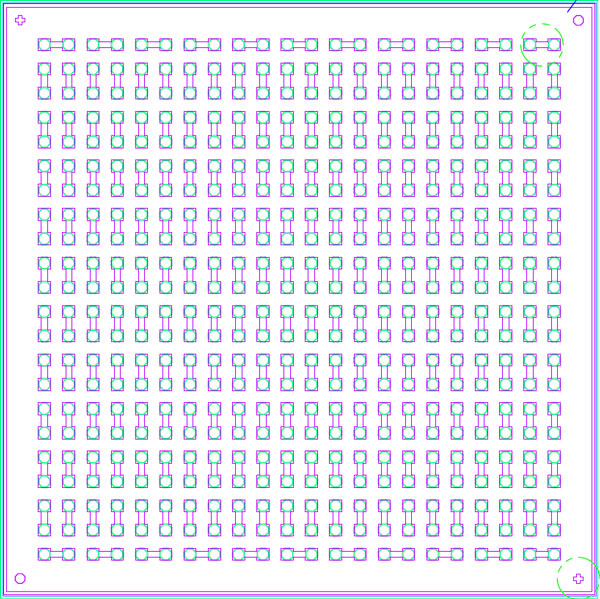

484 22x22
Full Array
200µm 5.0mm 74µm ø102µm 36pcs
Waffle 2"
- FC484G5C200-DC -

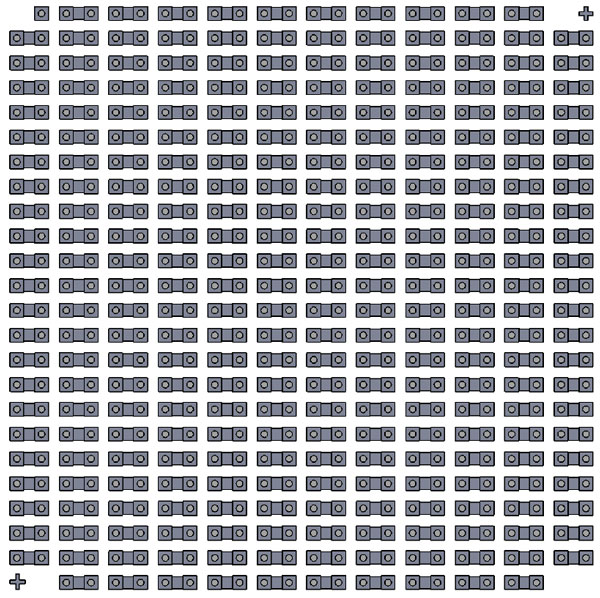

569 24x24
Full Array
204µm 5.08mm 89µm ø102µm 36pcs
Waffle 2"
FC569G5E204-DC FC569G5C204-DC FA08
1268 36x36
Full Array
254µm 10.2mm 125µm ø102µm 49pcs
Waffle 4"
FC1268G10E254-DC FC1268G10C254-DC FA10
x4

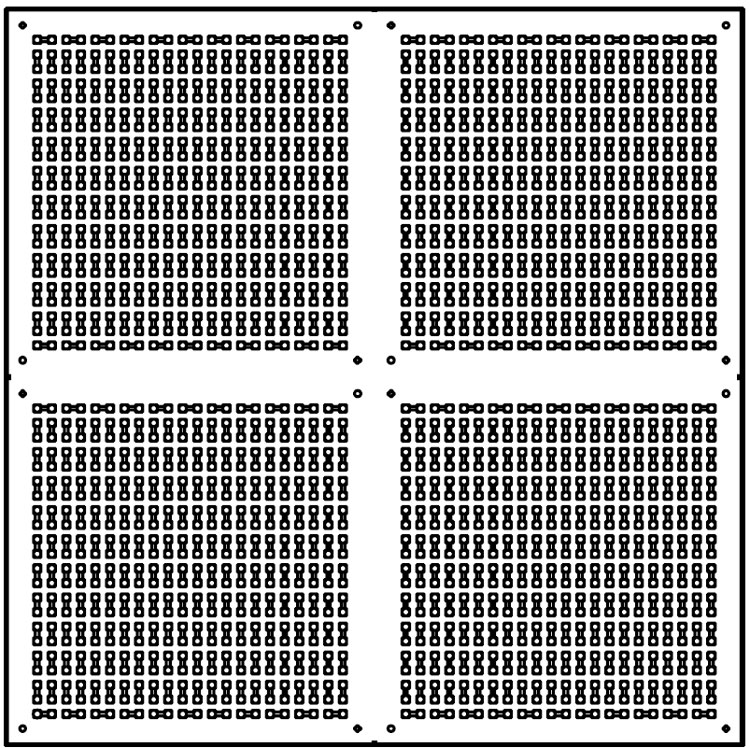

1936 44x44
Full Array
200µm 10mm 74µm ø102µm 49pcs
Waffle 4"
- FC1936G10C200-DC FC484
x4
2276 48x48
Full Array
204µm 10mm 89µm ø102µm 9pcs
Waffle 2"
FC2276G10E204-DC FC2276G10C204-DC 4xFA08

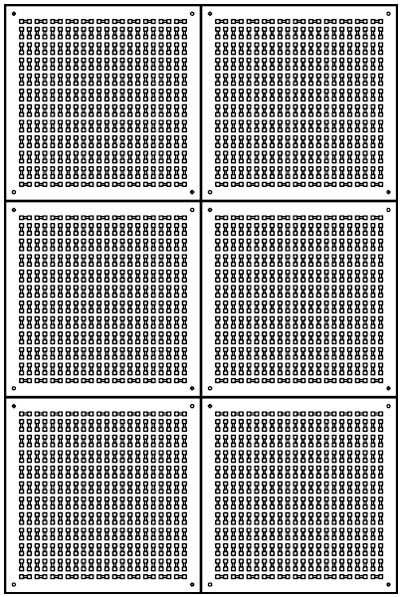

2904 44x66
Full Array
200µm 10x15mm 74µm ø102µm 24pcs
Waffle 4"
- FC2904G10x15C200-DC FC484
x6

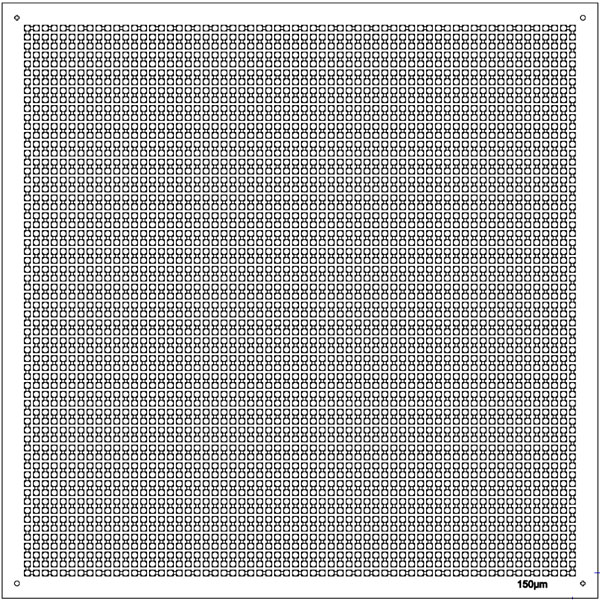

3844 62x62
Full Array
150µm 10mm 65µm ø65µm 49pcs
Waffle 4"
- FC3844G10C150-DC FC3844

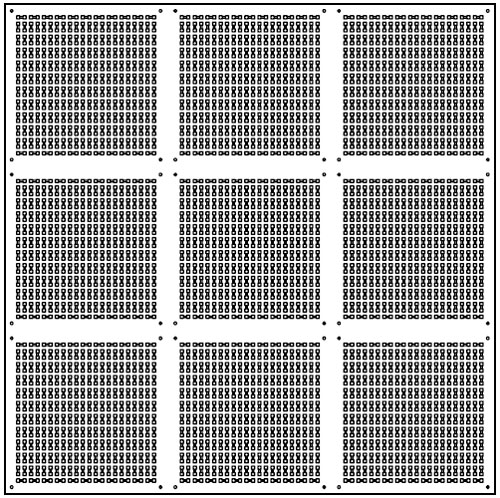

4356 66x66
Full Array
200µm 15mm 74µm ø102µm 16pcs
Waffle 4"
- FC4356G15C200-DC FC484
x9

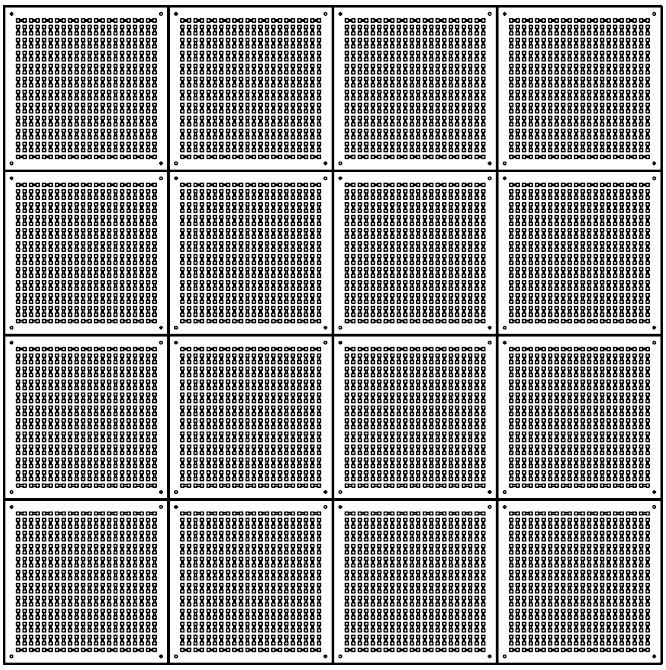

7744 88x88
Full Array
200µm 20mm 74µm ø102µm 9pcs
Waffle 4"
- FC7744G20C200-DC FC484
x16

General Specifications:
Die thickness: Standard 24 mil (600~650µm).
Thin die (back grinding) to 8mils (200µm) available on special order.
6mils (150µm) available on "as-is" basis with yield loss.

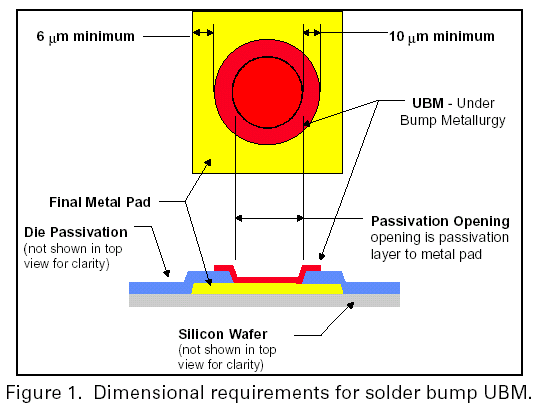

UBM Al/NiV/Cu: Total Thickness: 16K Å  Al= 4K Å / NiV= 4K Å / Cu= 8K Å
Metal Thickness: 8.9K Å   (Pitch 152µm)    17K Å   (Pitch 204~457µm)
Passivation Thickness: 8K Å   (Pitch 152~204µm)    10K Å   (Pitch 254~457µm)

Standard Passivation Type: Nitride

Optional Polyimide Passivation provides:
Stress relief, scratch protection, promotes better adhesion to reduce chance of delamination.



Flip Chips (Copper Pillar with SnAg Solder Cap)
Bumps Bump Matrix Pitch Die Size
(mm)
Bump
Height
øDia Packaging Copper Pillar
Lead Free
Solder Cap
Sn/Ag
Order Number
Ref Quick View

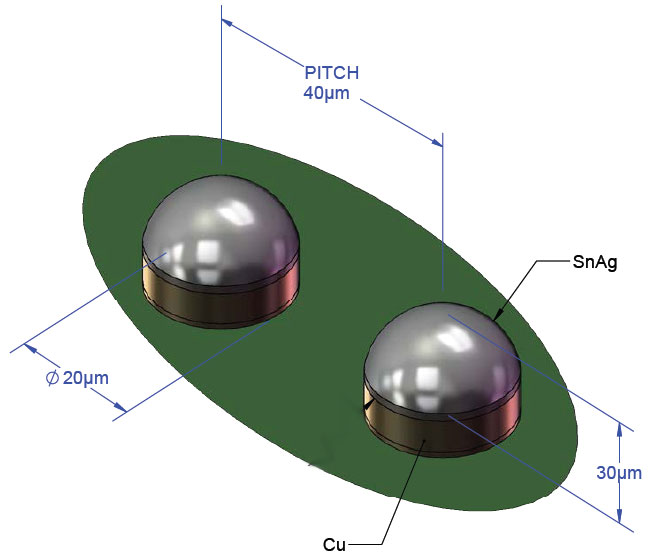

245,000 ~495x495
Full Array
40µm 20x20mm 30µm 20µm Gel-Pak 4pcs
-----
4" Waffle Pack 9pcs
----
12" Cassette or Ring
148 die
FC245K20C40-I FC250K

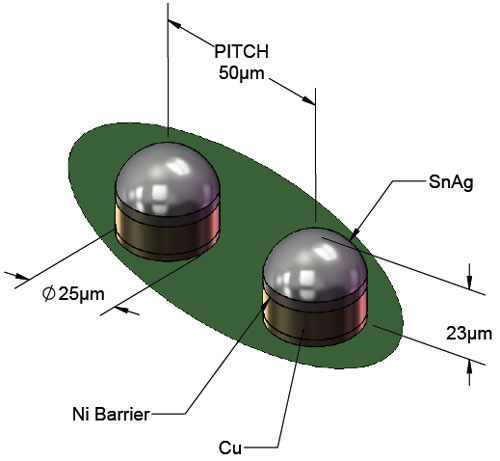

157,609 397x397
Full Array
50µm 20x20mm 23µm 25µm Gel-Pak 4pcs
-----
4" Waffle Pack 9pcs
----
8" Cassette or Ring
52 die
FC157K20C50-I FC157K

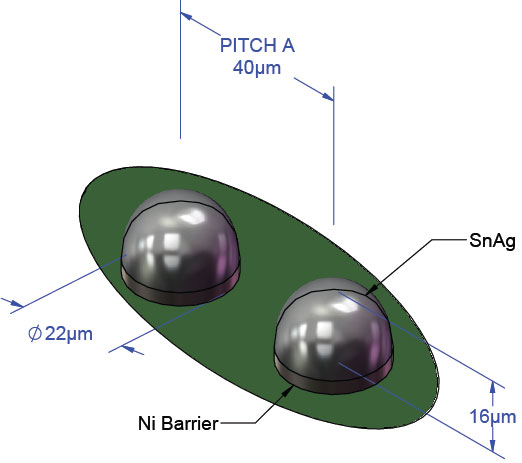

2,213 Chip
800,000 8" Wafer
Dual Pitch
Micro Bump
40/100µm 10x7.1mm 16µm ø22µm Gel-Pak 16pcs
-----
4" Waffle Pack 16pcs
----
8" Cassette or Ring
360 die
FC2213K10x7C40 FC2K
2,213 Chip
1.9 Million 12" Wafer
Dual Pitch
Micro Bump
40/100µm 10x7.1mm 16µm ø22µm 12" Cassette or Ring
876 die
FCW2213K10x7C40A FC2K

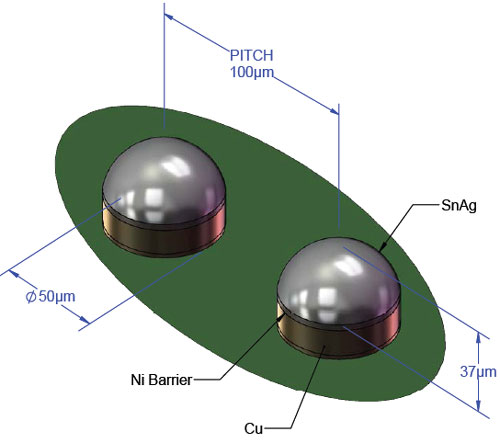

39,601 199x199
Full Array
100µm 20x20mm 37µm ø50µm Gel-Pak 4pcs
-----
4" Waffle Pack 9pcs
----
6" Cassette or Ring
with 24 die
FC39K20C100-I FC39K
64 8x8 200µm 2x2mm 100µm ø100µm 4" Waffle Pack 400 pcs
----
8" Cassette or Ring
with 7020 die
WLP64T.2P-DC088 1x WLP64
256 16x16 200µm 4x4mm 100µm ø100µm 4" Waffle Pack 196 pcs
----
8" Cassette or Ring
with 1968 die
WLP256T.2P-DC168D 4x WLP64
576 24x24 200µm 6x6mm 100µm ø100µm 4" Waffle Pack 121 pcs
----
8" Cassette or Ring
with 732 die
WLP576T.2P-DC248 9x WLP64
1024 32x32 200µm 8x8mm 100µm ø100µm Gel-Pak
----
4" Waffle Pack 64pcs
----
8" Cassette or Ring
with 401 die
WLP1024T.2P-DC328 16x WLP64
1600 40x40 200µm 10x10mm 100µm ø100µm Gel-Pak
---
4" Waffle Pack 49pcs
----
8" Cassette or Ring
with 256 die
WLP1600T.2P-DC407 25x WLP64
2304 48x48 200µm 12x12mm 100µm ø100µm Gel-Pak
----
4" Waffle Pack 36pcs
----
8" Cassette or Ring
with 164 die
WLP2304T.2P-DC487 36x WLP64
3136 56x56 200µm 14x14mm 100µm ø100µm Gel-Pak
-----
4" Waffle Pack 25pcs
----
8" Cassette or Ring
with 120 die
WLP3136T.2P-DC567 49x WLP64
4096 64x64 200µm 16x16mm 100µm ø100µm Gel-Pak
-----
4" Waffle Pack 16pcs
----
8" Cassette or Ring
with 88 die
WLP4096T.2P-DC647 64x WLP64


Packaging Options
Quartz die available with and without bumps (without daisy chain)
5-inch wafers available for all items.
Tape and reel (T&R) packaging available special order.

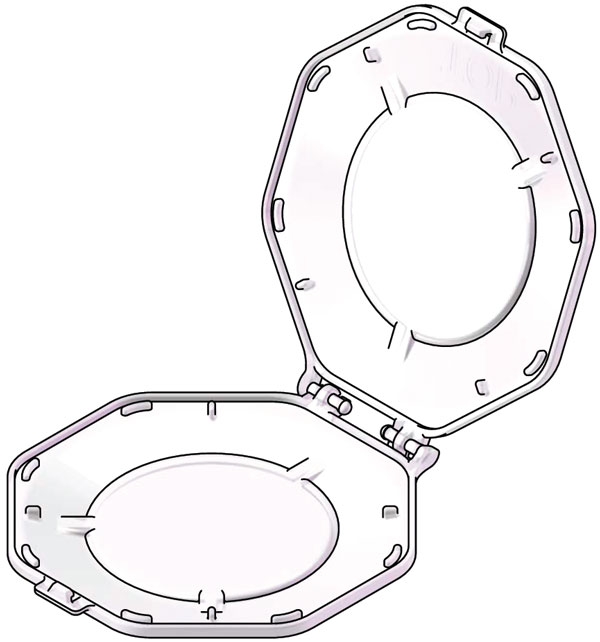

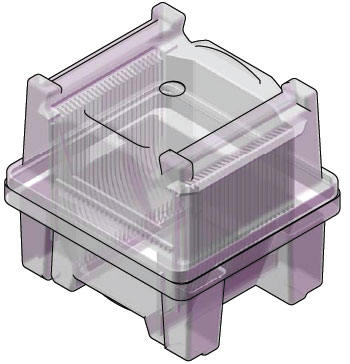

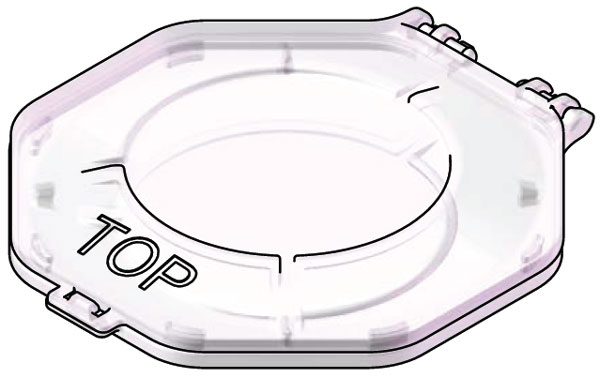

Wafer Box Cassette

(Closed) Wafer Shipper (Open)
Rotatable Model Rotatable Model

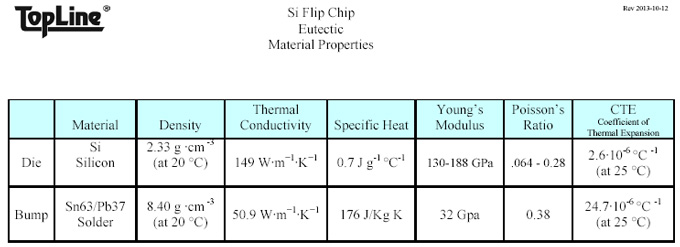

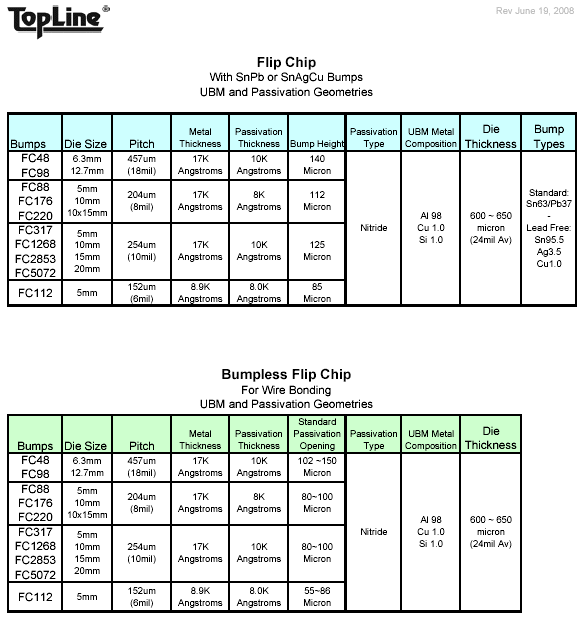

Geometries  •   UBM  •   Bumps  •   Eutectic Properties
