SOD
Zero Ohm Jumper
Use for PC Board Crossovers

SOD All pdf   •   Go to SOT Jumper




MELF Cylindrical Diode
Size Cross Reference Qty on Reel Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain
SOD80
DO-213AA
1.6 x 3.5mm
2500 8mm SOD80E7A-T-DC12
SM1-GLASS
2.5 x 5.0mm
DO-213AB
5000 12mm SM1E13A-T-DC12
For Zero Ohm Jumper, add -DC12 to end of part number



Size Cross Reference Qty on Reel Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain
Solidworks
360° Rotatable
Model
SOD123FW
3.5mm x 1.6mm
Wide Flat Leads
2500 8mm SOD123FW-E7A-T-DC12 Model
SOD123F
2.7mm x 1.5mm
Flat Leads
3000 8mm SOD123F-E7A-T-DC12 Model
SOD123G
2.7mm x 1.5mm
Gull Wing Leads
3000 8mm SOD123G-E7A-T-DC12 Model
SOD323G
1.7mm x 1.3mm
Gull Wing Leads

SC-76
3000 8mm SOD323G-E7A-T-DC12 Model
SOD323F
1.7mm x 1.25mm
Flat Leads
3000 8mm SOD323F-E7A-T-DC12 Model
SOD323FW
2.5mm x 1.25mm
Wide Flat Leads
3000 8mm SOD323FW-E7A-T-DC12 Model
SOD523F
1.2mm x 0.8mm
Flat Leads
3000 8mm SOD523-E7A-T-DC12 Model
SOD723F
1.0mm x 0.6mm
Flat Leads
8000 8mm SOD723-E7A-T-DC12 Model
SOD923F
0.8mm x 0.6mm
Flat Leads
8000 8mm SOD923-E7A-T-DC12 Model

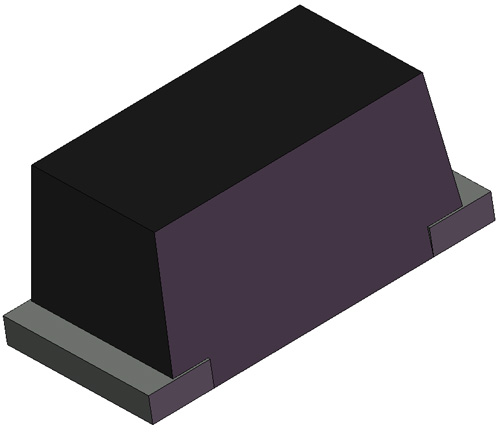

SMAF
5.2mm x 2.5mm
Flat Leads

FM400N
DO-215AC
SOD128
2500
7500
12mm SMAF-E7A-T-DC12
SMAF-E13A-T-DC12
Model
SMBF
5.2mm x 3.5mm
Flat Leads

FM20N-B
DO-215AA
4000 12mm SMBF-E13A-T-DC12 Model
SMCF
6.5mm x 4.5mm
Flat Leads

FM30N
DO-215AB
3000 12mm SMCF-E13A-T-DC12 Model
For Zero Ohm, add -DC12 to end of part number
For Isolated open ciruit, change -DC12 to -ISO



Download Solidworks®  e-Drawings viewer for rotatable models:
PC Version  •  Mac Version
