SOT, SOD, SOIC
Zero Ohm Jumper
Use for PC Board Crossovers

More Jumpers  • Jumper Catalog  • Jumper Schematic PDF   •  SOD Jumpers  •   Zero Ohm Resistors  •   REACH Declaration




JEDEC -Transistors
Size Outline Qty on Reel Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain
3-Gull Wing
SOT23
SOT323
SOT523G
SC70

Gull-Wing Model
3000 8mm SOT23E7A-T-DC##

SOT323E7A-T-DC##

SOT523E7A-T-DC##

AEC-Q101 Testing

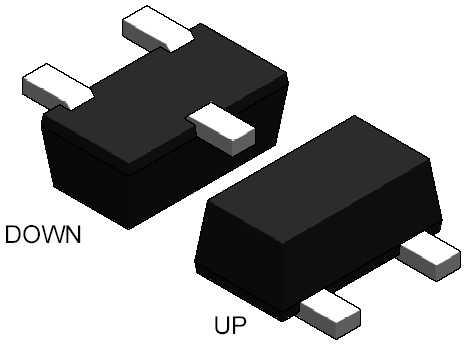

3-Flat Lead
SOT523F
SOT723

Flat Lead Model
3000 8mm SOT523F-E7A-T-DC##

SOT723E7A-T-DC13
3-Flat Lead
SOT723E4A-T-DC13

Flat Lead Model
500 8mm SOT723-E4A-T-DC13

NSN 5962-01-682-551
4-Lead

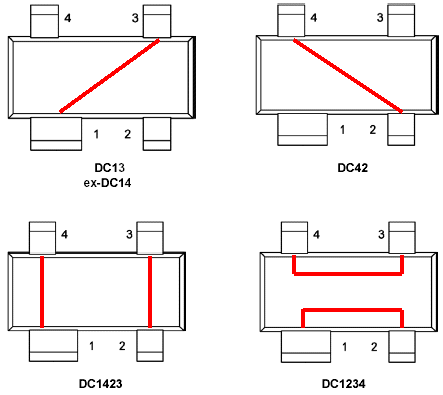

SOT143

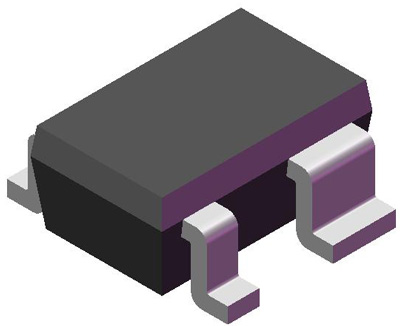

SOT343

SOT343

360°  Model
3000 8mm SOT143E7A-T-DC##

SOT343E7A-T-DC##
5-Lead
SOT25
SOT23-5
SOT353
SC70-5

360°  Model
3000 8mm SOT25E7A-T-DC##
SOT353E7A-T-DC##
6-Lead
SOT26
SOT23-6
SOT363
SC70-6

360°  Model
3000 8mm SOT26E7A-T-DC##
SOT363E7A-T-DC##
8-Lead
SOT28
SOT23-8

360°  Model
3000 8mm SOT28E7A-T-DC##
SO8
SSOP8
TSSOP8
MSOP8
3-Lead
SOT89
1000 12mm SOT89E7A-T-DC123
SOT89E7A-T-DC124
3-Lead
SOT223
1000
2500
12mm SOT223E7A-T-DC13
SOT223E7A-T-DC23
SOT223E7A-T-DC123
SOT223E7A-T-DC124
3-Lead

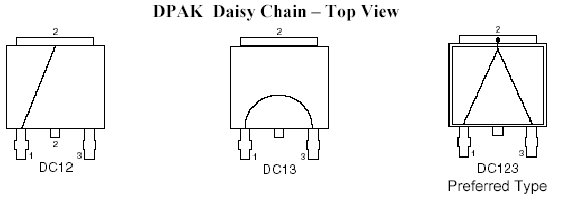

DPAK
2500 16mm DPAK-E13A-T-DC##
3-Lead
D2PAK
500~800 24mm D2PAK-E13A-T-DC##
Lead Free (Pb-Free RoHS)
Tin (Sn) Plating Thickness:  6~8µm.
Leadframes go through "annealing" process for 1-hour at 150°C after tin plating to minimize tin-whiskers.

Select the "Zero Ohm Jumper" circuit by adding the -DC code to the end of part number.
Please ask about other devices available with zero ohm jumper.
Internal connections created by using gold wires bonded to the lead frame.
Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version


MELF Cylindrical Diode
Size Cross Reference Qty on Reel Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain
SOD80
DO-213AA
LL34
1.6 x 3.5mm
2500 8mm SOD80E7A-T-DC12
SM1-GLASS
2.5 x 5.0mm
DO-213AB
LL35
LL41
5000 12mm SM1E13A-T-DC12
For Zero Ohm Jumper, add -DC12 to end of part number



Rectangular Case- Flat Terminal - DiodeRotatable Solidworks Model
Size Cross Reference Qty on Reel Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain

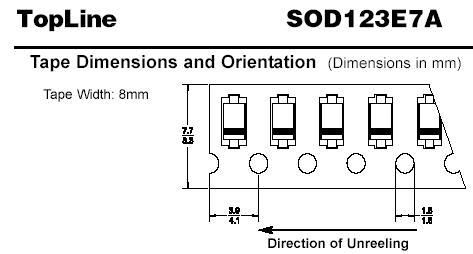

SOD123FW
3.5mm x 1.6mm
Wide Flat Leads
2500 8mm SOD123FW-E7A-T-DC12
SOD123F
2.7mm x 1.5mm
Flat Leads
3000 8mm SOD123F-E7A-T-DC12
SOD123G
2.7mm x 1.5mm
Gull Wing Leads
3000 8mm SOD123G-E7A-T-DC12
SOD323G
1.7mm x 1.3mm
Gull Wing Leads
3000 8mm SOD323G-E7A-T-DC12
SOD323FS
1.9mm x 1.3mm
Narrow Flat Leads
3000 8mm SOD323FS-E7A-T-DC12
SOD323FW
2.5mm x 1.25mm
Wide Flat Leads
3000 8mm SOD323FW-E7A-T-DC12
SOD523FL
1.2mm x 0.8mm
Flat Leads
4000 8mm SOD523FLE7A-DC12
SC79
SOD723F
1.0mm x 0.6mm
Flat Leads
8000 8mm SOD723-E7A-T-DC12
SOD923F
0.8mm x 0.6mm
Flat Leads
8000 8mm SOD923-E7A-T-DC12
SMAF
5.2mm x 2.5mm
Flat Leads

FM400N
DO-215AC
2500
7500
12mm SMAF-E7A-T-DC12
SMAF-E13A-T-DC12
SMBF
5.2mm x 3.5mm
Flat Leads

FM20N-B
DO-215AA
4000 12mm SMBF-E13A-T-DC12
SMCF
6.5mm x 4.5mm
Flat Leads

FM30N
DO-215AB
3000 12mm SMCF-E13A-T-DC12
For Zero Ohm, add -DC12 to end of part number
For Isolated open ciruit, change -DC12 to -ISO




Cross Over
Jumpers
Size
(inch)
Size
(metric)
Qty
on Reel
Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain

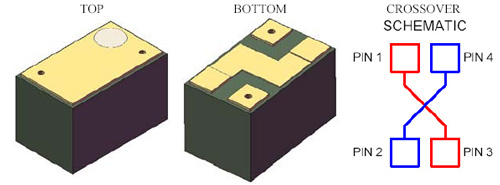

0805
Zero Ohm
Cross Over
Jumper

360°  Model
2012
2.0 x 1.2mm
1,000 8mm
Plastic
SSL0805E7A-T-DC4321




Zero Ohm
Jumpers
Size
(inch)
Size
(metric)
Qty
on Reel
Tape Width Part Number
Lead Free
Pb Free RoHS
Zero Ohm Jumper
Daisy Chain
01005
Zero Ohm
0402
0.4 x 0.2mm
20,000 8mm
Paper
SR01005P7A-ZERO-TIN
0201
Zero Ohm
0603
0.6 x 0.3mm
10,000 8mm
Paper
SR0201P7A-ZERO-TIN
0402
Zero Ohm
1005
1.0 x 0.5mm
10,000 8mm
Paper
SR0402P7A-ZERO-TIN
0603
Zero Ohm
1608
1.6 x 0.8mm
5,000 8mm
Paper
SR0603P7A-ZERO-TIN
0805
Zero Ohm
2012
2.0 x 1.2mm
5,000 8mm
Paper
SR0805P7A-ZERO-TIN
1206
Zero Ohm
3216
3.2 x 1.6mm
5,000 8mm
Paper
SR1206P7A-ZERO-TIN
1210
Zero Ohm
3225
3.2 x 2.5mm
4,000 8mm
Plastic
SR1210E7A-ZERO-TIN
2010
Zero Ohm
5025
5.0 x 2.5mm
4,000 12mm
Plastic
SR2010E7A-ZERO-TIN
2512
Zero Ohm
6332
6.3 x 3.2mm
4,000 12mm
Plastic
SR2512E7A-ZERO-TIN
