Large Machine Run Kit
BGA, Fine-Pitch and SMT

Go to: More Kits

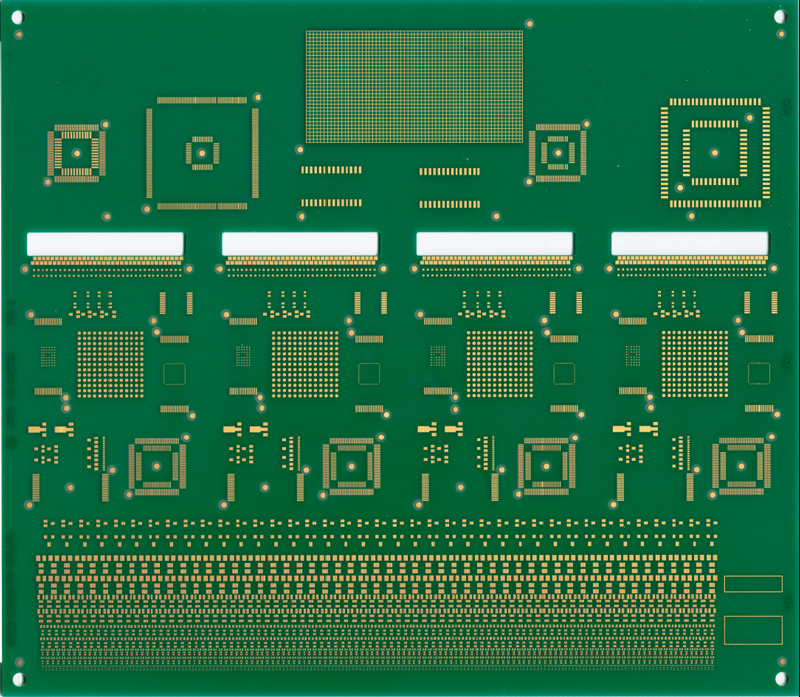

Enlarge: Top Side Board
Board Size 9.0"x7.875" (23x20cm)



TopLine Large Machine Run Kit includes
BGA, QFP, TSOP, SOIC, SOT, PLCC & chips.
Site for adhesive dispensing test.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 9.0"x7.875" (23x20cm)
  • Thickness 0.062" (1.6mm)
  • Single Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

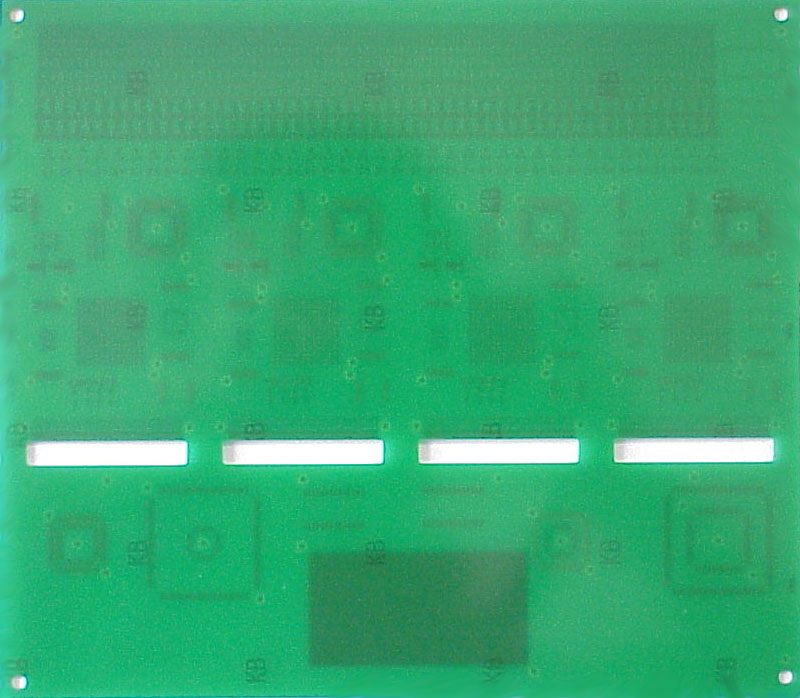

    Englarge Back Side

    		•

      BOM Kit Contents
    Large Machine Run Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    919X10
    10 Kits
    Order #
    919X25
    25 Kits
    Order #
    919X50
    50 Kits
    Order #
    919X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 10 25 50 100
    BGA169
    Size 23x23mm
    Pitch 1.5mm    		 4 40 100 200 400
    BGA46/BGA48
    Size 6x8mm
    Pitch 0.75mm    		 4 40 100 200 400
    QFP256
    Size 28x28mm
    Pitch 0.4mm (15.7mil)
    		 1 10 25 50 100
    TQFP48
    Size 7x7mm
    Pitch 0.5mm (19.7mil)    		 2 20 50 100 200
    TQFP44
    Size 10x10mm
    Pitch 0.8mm (30mil)    		 1 10 25 50 100
    TQFP80
    Size 10x10mm
    Pitch 0.4mm (30mil)    		 4 40 100 200 400
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)    		 12 120 300 600 1200
    PLCC44
    Pitch 1.27mm (50mil)    		 1 10 50 50 100
    PLCC84
    Pitch 1.27mm (50mil)    		 1 10 25 50 100
    SOL28
    Pitch 1.27mm (50mil)    		 2 20 50 100 200
    SSOP20
    Pitch 0.65mm (25.6mil)    		 4 40 100 200 400
    SOT23 39 390 975 1950 3900
    SOT89 8 80 200 400 800
    SOT323 87 870 2175 4350 8700
    0201 Chip
    Metric 0603    		 600 6000 15000 30000 60000
    0402 Chip
    Metric 1005    		 700 7000 17500 35000 70000
    0603 Chip
    Metric 1608    		 500 5000 12500 25000 50000
    0805 Chip
    Metric 2012    		 300 3000 7500 15000 30000
    1206 Chip
    Metric 3216    		 200 2000 5000 10000 20000


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "919001c" Large Machine Run Board
    Step 4. Download files


    Kit Order Number System
    919 2 # #
    Series Board Finish Quantity
    Large Machine Run

    Board Size:
    9"x7.875" (23x20cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 919001
    Tin (Sn) RoHS 919002
    Silver (Ag) RoHS 919006*
    OSP (Cu) RoHS 919008*
    ENIG Gold (Ni/Au) RoHS 919009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
