Jumbo Chip
Shooter Kit
0402, 0603, 0805 and 1206
With Zero Ohm Continuity Test

Go to: 01005 / 0201 Kit   •   0201 / 0402 Kit   •   0402 / 0603 Kit   •   0805 / 1206 Kit

Jumbo Chip Shooter Kit
With Four Sizes Metric Chip:
1.0 x 0.5mm / 1.6mm x 0.8mm / 2.0mm x 1.2mm / 3.2mm x 1.6mm


Chip Shooter Kit includes 460 pads for 0402 (1.0x0.5mm) and 360 pads for 0603 (1.60x0.8mm) and 300 pads for 0805 (2.0x1.2mm) and 300 pads for 1206 (3.2x1.6mm). Zero ohm resistors for placement and continuity testing. Use a simple ohm meter to check continuity (Good), or open circuit (Fail) at test points for each row of components. 0402 Chips are supplied on reels with 2mm pitch tape. 0603, 0805 and 1206 Chips are supplied on reels with 4mm pitch tape. This kit can be used for placement, soldering or epoxy dispenser testing. Special kits available with capacitors instead of resistors.

Board Features:
Choice of Final finish:
  • Immersion Tin (Sn)
  • ENIG (Ni/Au)Gold
  • OSP Copper
  • Immersion Silver
  • HASL SnPb

    •
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)
    •
    Enlarge: Top 0402 and 0603 Chips

    0402 (0.6x0.3mm) and 0603 (1.6x0.8mm) chip
    Board Size 4"x5.5" (10x14cm)
    0402 Pad Details     •     0603 Pad Details

    0402/0603 Bottom Side Assembled

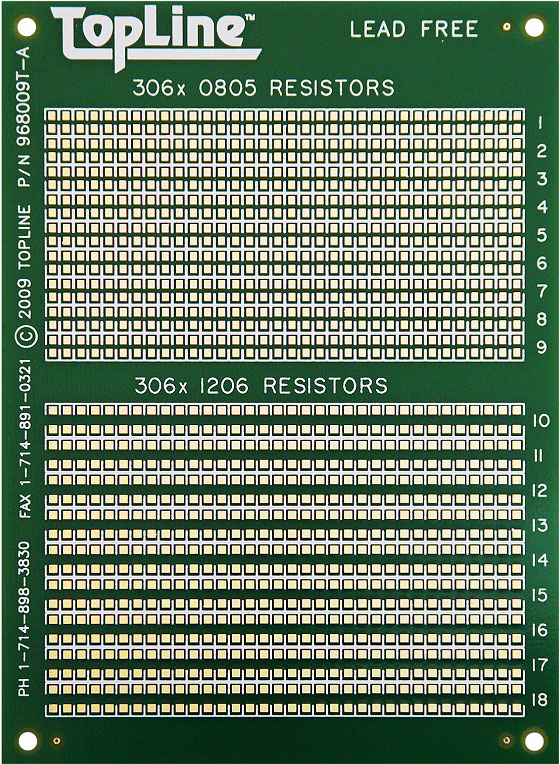

    Enlarge:  0805 and 1206 Chips

    0805 (2.0x1.2mm) and 1206 (3.2x1.6mm) chip
    Board Size 4"x5.5" (10x14cm)
    0805 Pad Details     •     1206 Pad Details

    0805/1206 Bottom Side Assembled

      BOM Kit Contents
    0402 / 0603 /0805 / 1206
    Jumbo Chip Shooter Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    929F00
    1 Kit
    Order #
    929F03
    3 Kits
    Order #
    929F06
    6 Kits
    Order #
    929F10
    10 Kits
    Order #
    929F25
    25 Kits
    Order #
    929F50
    50 Kits
    Board HASL - SnPb
    F = 0
    4th Digit Order#    		   1 3 6 10 25 50
    Board - Tin (Sn)
    F = 2
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    Board Silver (Ag)
    F = 6
    4th Digit Order#    		 RoHS Pb-Free - - - 10 25 50
    Board OSP (Cu)
    F = 8
    4th Digit Part#    		 RoHS Pb-Free - - - 10 25 50
    Board - ENIG
    Gold (Ni/Au)
    F = 9
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    0402 Zero Ohm Resistor
    Size: 1.0mm x 0.5mm    		 460 460 1380 2760 4600 11500 23000
    0603 Zero Ohm Resistor
    Size: 1.6mm x 0.8mm    		 360 360 1080 2160 3600 9000 18000
    0805 Zero Ohm Resistor
    Size: 2.0mm x 1.2mm    		 300 300 900 1800 3000 7500 15000
    1206 Zero Ohm Resistor
    Size: 3.2mm x 1.6mm    		 300 300 900 1800 3000 7500 15000
    Ask for special kits with non-zero ohm capacitors.

    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "964001b" 0402 / 0603 with Daisy Chain
    Step 4. Click link "968001b" 0805 / 1206 with Daisy Chain
    Step 5. Download files

    Kit Order Number System
    929 2 # #
    Series Board Finish Quantity
    0402/0603/0805/1206 Chip
    Each Board 4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) No 964001 / 968001
    Tin (Sn) RoHS 964002 / 968002
    Silver (Ag) RoHS 964006 / 968006
    OSP (Cu) RoHS 964008 / 968008
    ENIG Gold (Ni/Au) RoHS 964009 / 968009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 Drawing
    Tin (Sn) RoHS 0402 Chip
    (1.0x0.5mm) Resistor
    Tin (Sn) RoHS 0603 Chip
    (1.6x0.8mm) Resistor
    Tin (Sn) RoHS 0805 Chip
    (2.0x1.2mm) Resistor
    Tin (Sn) RoHS 1206 Chip
    (3.2x1.6mm) Resistor
