Advanced SMD Kit
Fine-Pitch QFP For Expert

Go to: More Kits

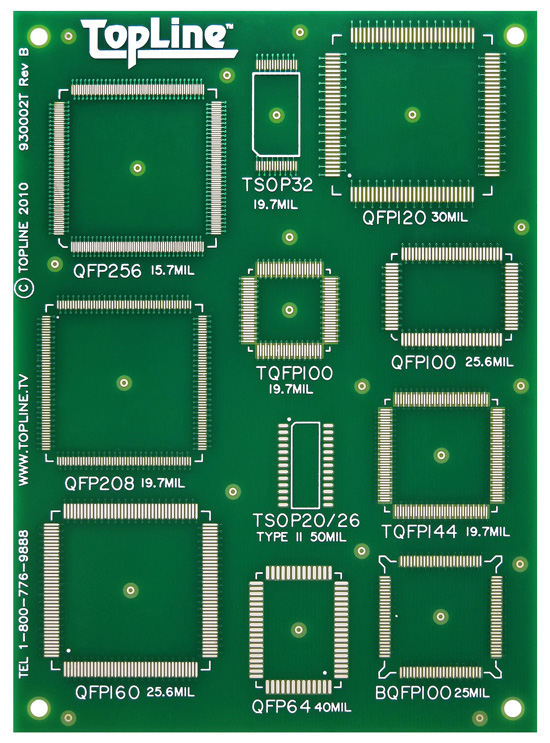

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)
Same pattern repeated on bottom side.



Put your machine through its paces with the Advanced SMD Kit. Includes a wide selection of fine-pitch parts from 0.4mm pitch. Kit quantity 24, 48 and 96 are packaged for machine-run. Kits for 1 and 10 are packaged for manual assembly by hand.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

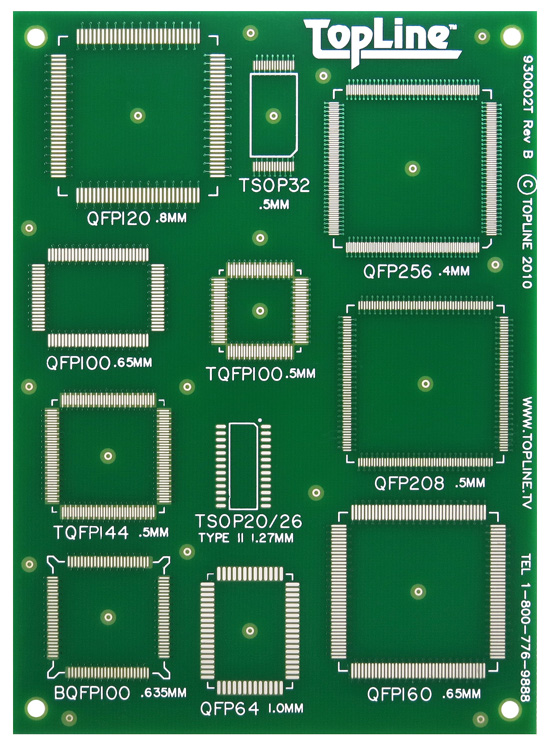

    Enlarge:  Bottom Side

    •
      BOM Kit Contents
    Advanced SMD Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    931X00
    1 Kit
    Order #
    931X10
    10 Kits
    Order #
    931X24
    24 Kits
    Order #
    931X48
    48 Kits
    Order #
    931X96
    96 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 10 24 48 96
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 24 48 96
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 24 48 96
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 24 48 96
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 24 48 96
    QFP256
    Size 28x28mm
    Pitch 0.4mm (15.7mil)
    		 1 1 10 24 48 96
    QFP208
    Size 28x28mm
    Pitch 0.5mm (19.7mil)
    		 1 1 10 24 48 196
    LQFP144
    Size 20x20mm
    Pitch 0.5mm (19.7mil)
    		 1 1 10 24 48 196
    T/LQFP100
    Size 14x14mm
    Pitch 0.5mm (19.7mil)
    		 1 1 10 24 48 196
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)    		 1 1 10 24 48 96
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 1 1 10 24 48 96
    *BQFP100
    Size 19x19mm
    Pitch 0.635mm (25mil)    		 1 1 10 24 48 96
    QFP160
    Size 28x28mm
    Pitch 0.65mm (25.6mil)
    		 1 1 10 24 48 196
    *QFP120
    Size 28x28mm
    Pitch 0.8mm (30mil)
    		 1 1 10 24 48 196
    QFP64
    Size 14x20mm
    Pitch 1.0mm (40mil)    		 1 1 10 24 48 96
    *Note: QFP120 and BQFP100 not included in Lead Free Kits


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "930001b" Advanced SMD
    Step 4. Download files


    Kit Order Number System
    931 2 # #
    Series Board Finish Quantity
    Advanced SMD

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    24 = 24 Kits
    48 = 48 Kits
    96 = 96 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 930001
    Tin (Sn) RoHS 930002
    Silver (Ag) RoHS 930006*
    OSP (Cu) RoHS 930008*
    ENIG Gold (Ni/Au) RoHS 930009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
