0201/0402 Chip Kit
With Zero Ohm Continuity Test

Go to: 01005 / 0201 Kit   •   0402 / 0603 Kit   •   0805 / 1206 Kit   •   Jumbo 0402 to 1206 Kit

Chip Shooter Mounting Kit
Metric Chip 0.6 x 0.3mm and 1.0mm x 0.5mm

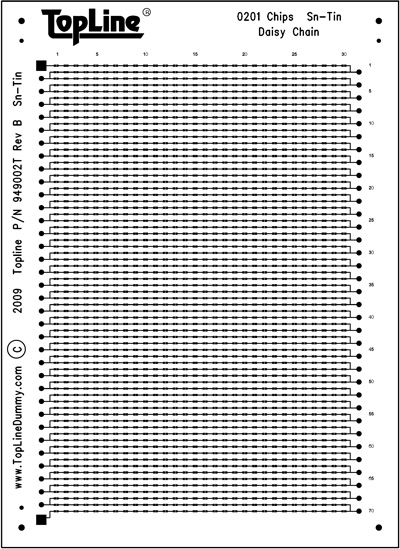

Enlarge: Top Side 0201 (0.6x0.3mm) Chips
Top Side for 0201 Chip (0.6x0.3mm)
Board Size 4"x5.5" (10x14cm)

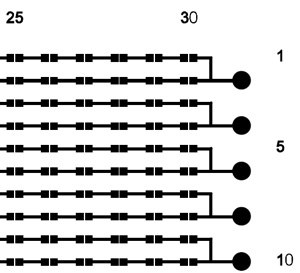

Click for 0201 Pad Details



Chip Shooter Kit includes tiny 0201 (0.6x0.3mm) and 0402 (1.0x0.5mm) zero ohm resistors for placement and continuity testing. Use a simple ohm meter to check continuity (Good), or open circuit (Fail) at test points for each row of components. Chips are supplied on reels with 2mm pitch tape. This kit can be used for placement, soldering or epoxy dispenser testing.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

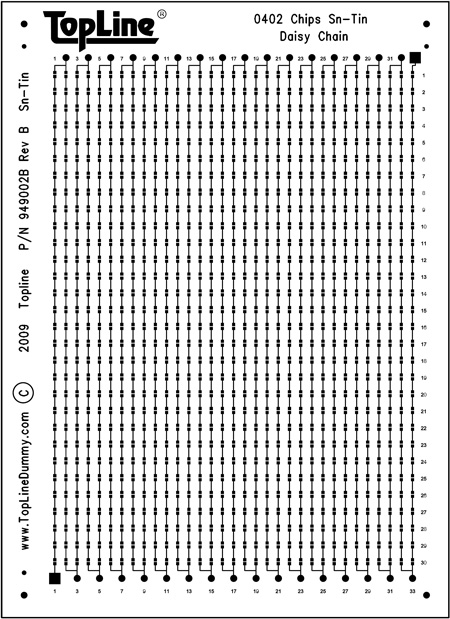

    Enlarge:  Bottom 0402 (1.0x0.5mm) Chips

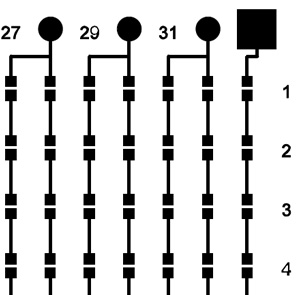

    Click for 0402 Pad Details

    		•

      BOM Kit Contents
    0201/0402 Chip Shooter Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    949F00
    1 Kit
    Order #
    949F03
    3 Kits
    Order #
    949F06
    6 Kits
    Order #
    949F10
    10 Kits
    Order #
    949F25
    25 Kits
    Order #
    949F50
    50 Kits
    Board HASL - SnPb
    F = 0
    4th Digit Order#    		   1 3 6 10 25 50
    Board - Tin (Sn)
    F = 2
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    Board Silver (Ag)
    F = 6
    4th Digit Order#    		 RoHS Pb-Free - - - 10 25 50
    Board OSP (Cu)
    F = 8
    4th Digit Part#    		 RoHS Pb-Free - - - 10 25 50
    Board - ENIG
    Gold (Ni/Au)
    F = 9
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    0201 Chip Resistor
    Size: 0.4mm x 0.2mm    		 2000 2000 6000 12000 20000 50000 100000
    0402 Chip Resistor
    Size: 1.0mm x 0.5mm    		 1000 1000 3000 6000 10000 25000 50000
    Ask for special kits with non-zero ohm capacitors.

    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "949001b" 0201/0402 with Daisy Chain
    Step 4. Download files

    Kit Order Number System
    949 2 # #
    Series Board Finish Quantity
    0201/0402 Chip
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) No 949001
    Tin (Sn) RoHS 949002
    Silver (Ag) RoHS 949006
    OSP (Cu) RoHS 949008
    ENIG Gold (Ni/Au) RoHS 949009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 Drawing
    Tin (Sn) RoHS 0201 Chip
    (0.6x0.3mm) Resistor
    Tin (Sn) RoHS 0402 Chip
    (1.0x0.5mm) Resistor
    Ask for special kits with non-zero ohm capacitors.
