Saber Kit
Mixed technology
BGA Daisy Chain

Go to: More Kits

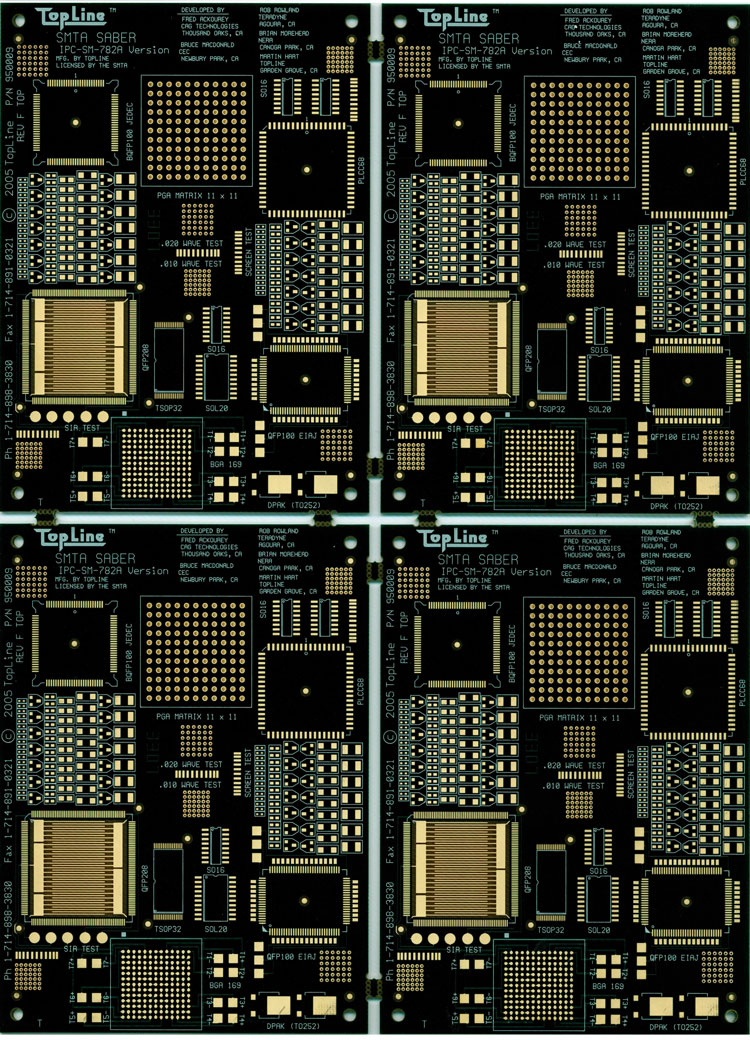

Enlarge: 4x Board Array
Board Size 8"x11" (20x28cm)

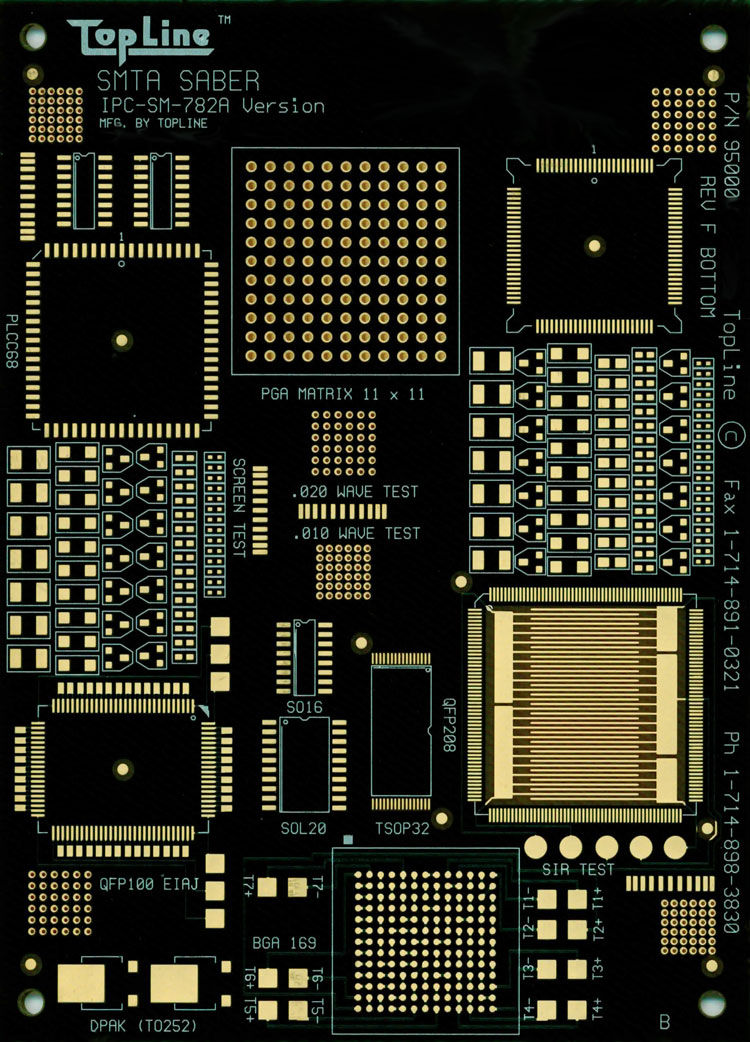

Click bottom side.

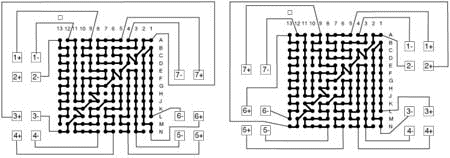

The SABER 4-Board Array has helped many SMTA members to define and refine their surface mount assembly processes. The SABER Board is used by mainstream surface mount manufacturers throughout the industry to test such capabilities as daisy chain BGA, QFP, SOIC, SOT, PLCC, SMT chips and more. Test points for checking continuity after mounting daisy chain BGA169 to verify correct assembly with a simple ohm-meter. Component palcement accuracy. Cleanliness SIR Test coupons. Solder paste screening. The SABER board is supplied as a routed, snap-apart, four board panelized array.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Array Size - 8"x11" (20x28cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Wave Soldering Test Coupons
  • Cleanliness SIR Test Coupons
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

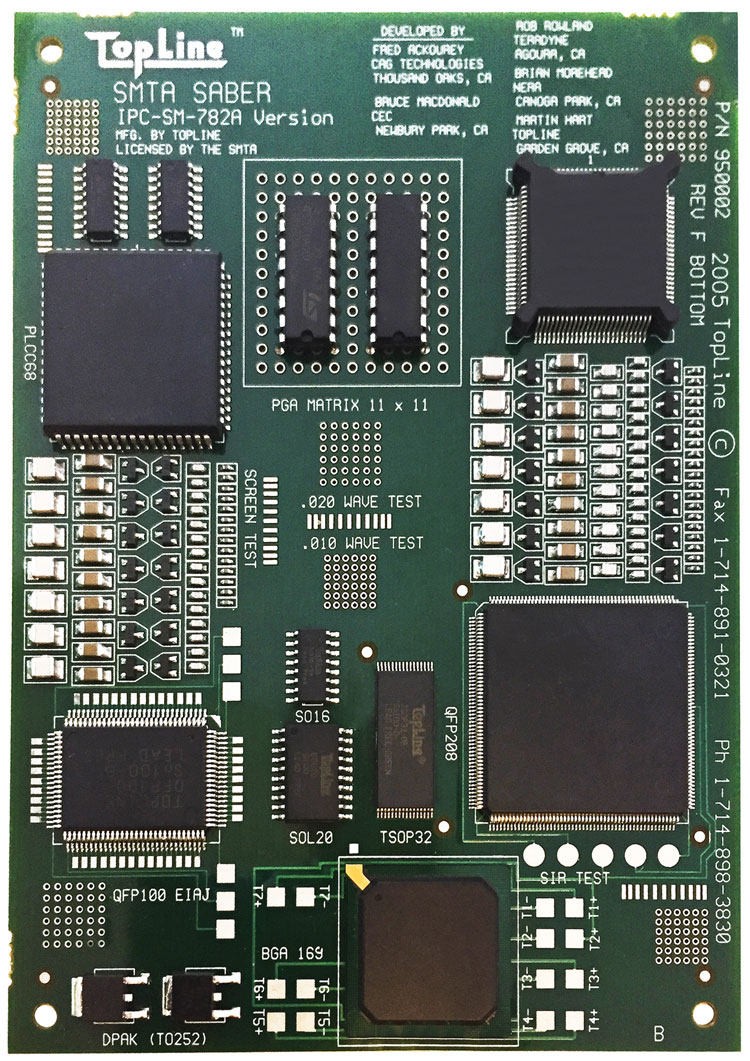

    Enlarge:  Assembled Single Board

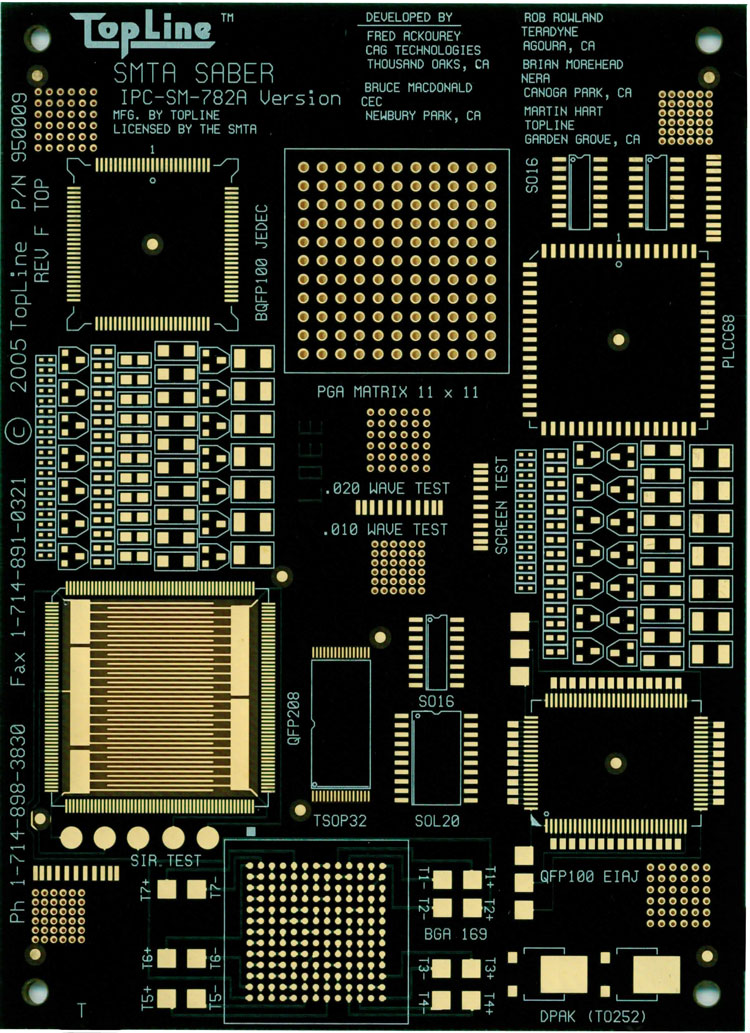

    Click Top Bare Board

    		•

      BOM Kit Contents
    Saber 4-Board Array Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    950X00
    4 Kit
    Order #
    950X12
    12 Kits
    Order #
    950X24
    24 Kits
    Order #
    950X48
    48 Kits
    Order #
    950X96
    96 Kits
    4 Board Array HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 3 6 12 24
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 12 24
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 6 12 24
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 6 12 24
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 12 24
    BGA169
    Size 23x23mm
    Pitch 1.5mm
    With Daisy Chain    		 1 4 12 24 48 96
    QFP208
    Size 28x28mm
    Pitch 0.5mm (19.7mil)
    		 1 4 12 24 48 96
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 1 4 12 24 48 96
    BQFP100
    Bumper
    Pitch 0.635mm (25mil)
    Not Included in RoHS Kits    		 1 4 12 24 48 96
    TSOP32 (I)
    Size 8x20mm
    Pitch 0.5mm (19.7mil)    		 1 4 12 24 48 96
    PLCC68
    Pitch 1.27mm (50mil)    		 1 4 12 24 48 96
    SOL20
    Pitch 1.27mm (50mil)    		 1 4 12 24 48 96
    SO16
    Pitch 1.27mm (50mil)    		 3 12 36 72 144 288
    SOT23
         		 28 112 336 672 1344 2688
    DPAK
    TO-252AA    		 2 4 24 48 96 192
    0402 Chip
    Metric 1005    		 34 136 272 544 1088 2176
    0603 Chip
    Metric 1608    		 30 120 240 480 960 1920
    0805 Chip
    Metric 2012    		 11 44 88 176 352 704
    1206 Chip
    Metric 3216    		 20 80 160 320 640 1280
    1210 Chip
    Metric 3225    		 14 56 168 336 672 1344
    DIP14~20
    Thru-Hole    		 2 8 16 32 64 128


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "950001f" Saber Board
    Step 4. Download files


    Kit Order Number System
    950 2 # #
    Series Board Finish Quantity
    Saber Array

    Board Size:
    8"x11" (20x28cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    12 = 12 Kits
    24 = 24 Kits
    48 = 48 Kits
    96 = 96 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Board Type
    Size    		 Order Number
    HASL
    (Sn/Pb)    		 Tin-Lead Array (4-Boards)
    8"x11"    		 950001
    Tin
    (Sn)    		 RoHS Array (4-Boards)
    8"x11"    		 950002
    Silver
    (Ag)    		 RoHS Array (4-Boards)
    8"x11"    		 950006*
    OSP
    (Cu)    		 RoHS Array (4-Boards)
    8"x11"    		 950008*
    ENIG
    Gold (Ni/Au)    		 RoHS Array (4-Boards)
    8"x11"    		 950009

    HASL
    (Sn/Pb)    		 RoHS Single Board
    4"x5.5"    		 950003
    ENIG
    Gold (Ni/Au)    		 RoHS Single Board
    4"x5.5"    		 950007
    Tin
    (Sn)    		 RoHS Single Board
    4"x5.5"    		 950013
    Silver
    (Ag)    		 RoHS Single Board
    4"x5.5"    		 950016*
    OSP
    (Cu)    		 RoHS Single Board
    4"x5.5"    		 950018*
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
