Fiducial Comparative Kit
10 different types of Fiducials

Go to: 9618xx Rotational Placement Kit

Enlarge: TOP SIDE
Board Size 4"x5.5" (10x14cm)
Same pattern repeated on bottom side.



TopLine Fiducial Comparative Placement Kit. Each side of the board has 10 Fine-Pitch QFP100 components. Components are placed with 10 different fiducial marks: SMEMA 3.1, Donut, Triangle, Line, Butterfly, Diamond, Square, Binary Cross, Donut with square clear, and SMEMA with square clear. Put your machine to the test. Verify it is compatable with many types of fiducial marks.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • Fiducials - 10 Different Types

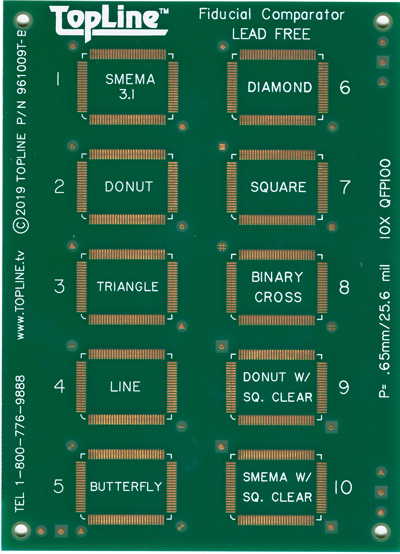

    Enlarge:  BOTTOM SIDE

    •
    Tin-Lead (Non-RoHS) BOM Kit Contents
    Rotational Placement Kit
    Kit Quantities Available
    SnPb Kit BOM Components
    Per
    Board
    Order #
    961000
    1 Kit
    Order #
    961003
    3 Kits
    Order #
    961006
    6 Kits
    Order #
    961010
    10 Kits
    Order #
    961025
    25 Kits
    Board HASL - SnPb Tin-Lead 1 3 6 10 25
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 10 10 30 60 100 250

    Lead Free (RoHS) BOM Kit Contents
    Rotational Placement Kit
    Kit Quantities Available
    Lead Free Kit BOM Components
    Per
    Board
    Order #
    9610X0
    1 Kit
    Order #
    9610X3
    3 Kit
    Order #
    9610X6
    6 Kit
    Order #
    9610X1
    10 Kit
    Order #
    9610X2
    25 Kits
    Order #
    9610X4
    50 Kits
    Board - Tin (Sn)
    X = 2
    5th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    5th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    QFP100
    Size 14x20mm
    Pitch 0.65mm (19.7mil)    		 10 10 30 60 100 250 500


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "961001b" Fiducial Comparator
    Step 4. Download files


    Tin Lead HASL
    Kit Order Number System
    9610 00
    Series Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)    		 00 = 1 Kit
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits

    Other quantites available.

    Lead Free
    Kit Order Number System
    9610 X #
    Series Board Finish Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)    		 2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 1 = 1 Kit
    3 = 3 Kits
    6 = 6 Kits
    1 = 10 Kits
    2 = 25 Kits
    4 = 50 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 961001
    Tin (Sn) RoHS 961002
    Silver (Ag) RoHS 961006*
    OSP (Cu) RoHS 961008*
    ENIG Gold (Ni/Au) RoHS 961009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
